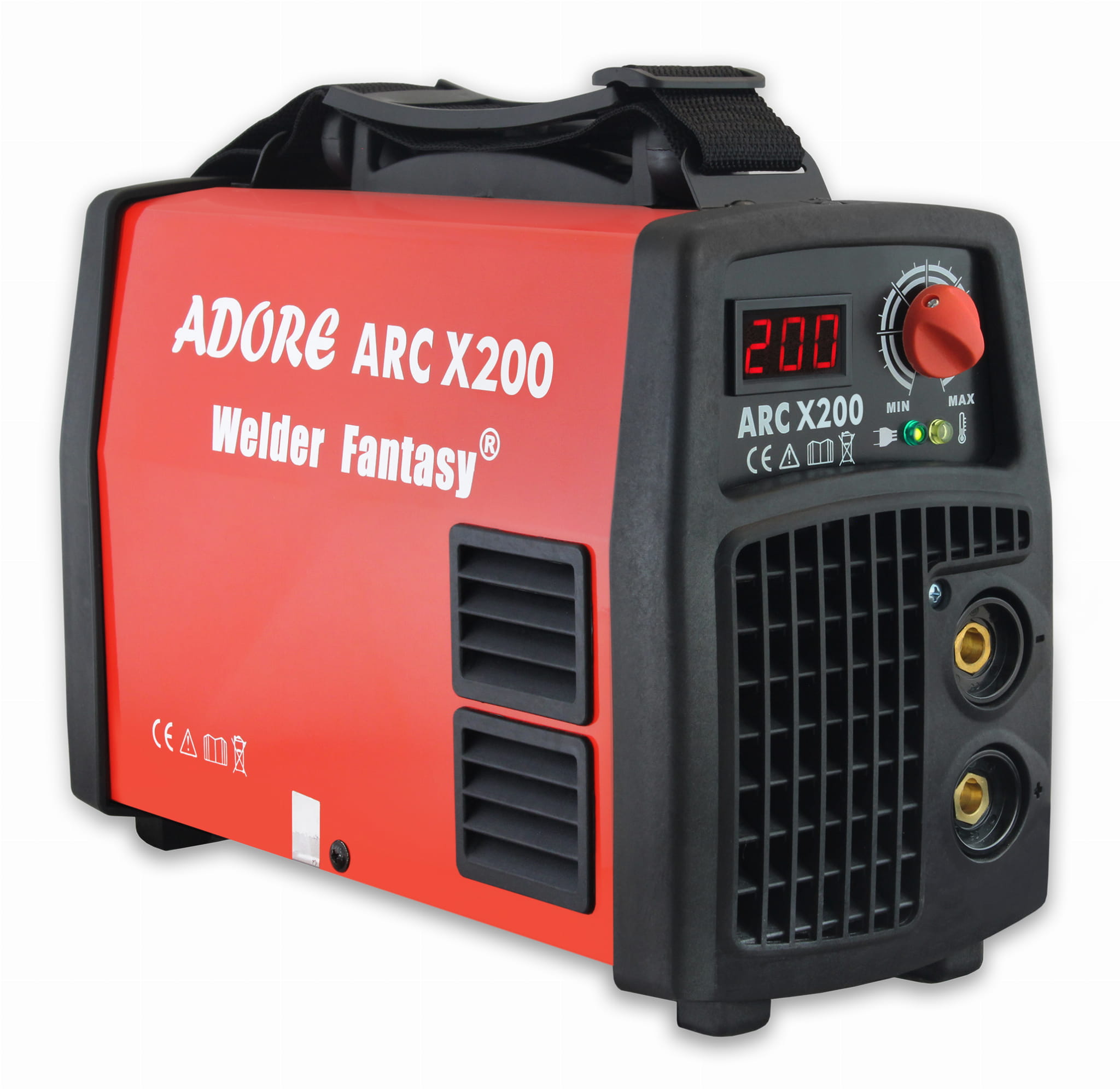

WELDING MACHINE ARC MMA ADORE X200 IGBT WELDER FANTASY HELMET
Regular price:
product unavailable
add to wish list
Description
ADORE welders are the latest generation of the well-known and reputable welding machines from the Welder Fantasy series, which have enjoyed unwavering recognition from customers in Poland and abroad for many years.
The presented devices feature a solid, compact design along with a digital display of welding parameters and are intended for MMA welding (shielded metal arc welding). The unit is suitable for welding with all types of consumable electrodes, including rutile, basic, and cellulose electrodes.
Thanks to the use of technology based on IGBT inverters, ADORE welders are characterized by compact dimensions and high efficiency.
“WELDER FANTASY” IS A PROTECTED AND REGISTERED TRADEMARK - View the Trademark Protection Certificate
Available welding methods:
- MMA DC+
- MMA DC-
Why choose the Welder Fantasy ADORE X200 welder:
- high duty cycle of 60%,
- IGBT transistors,
- ability to weld with electrodes from 1.6–4.0 mm,
- electronic display of welding parameters,
- smooth adjustment of welding current,
- solid transport handle,
- compact dimensions and low weight,
- robust and compact construction.

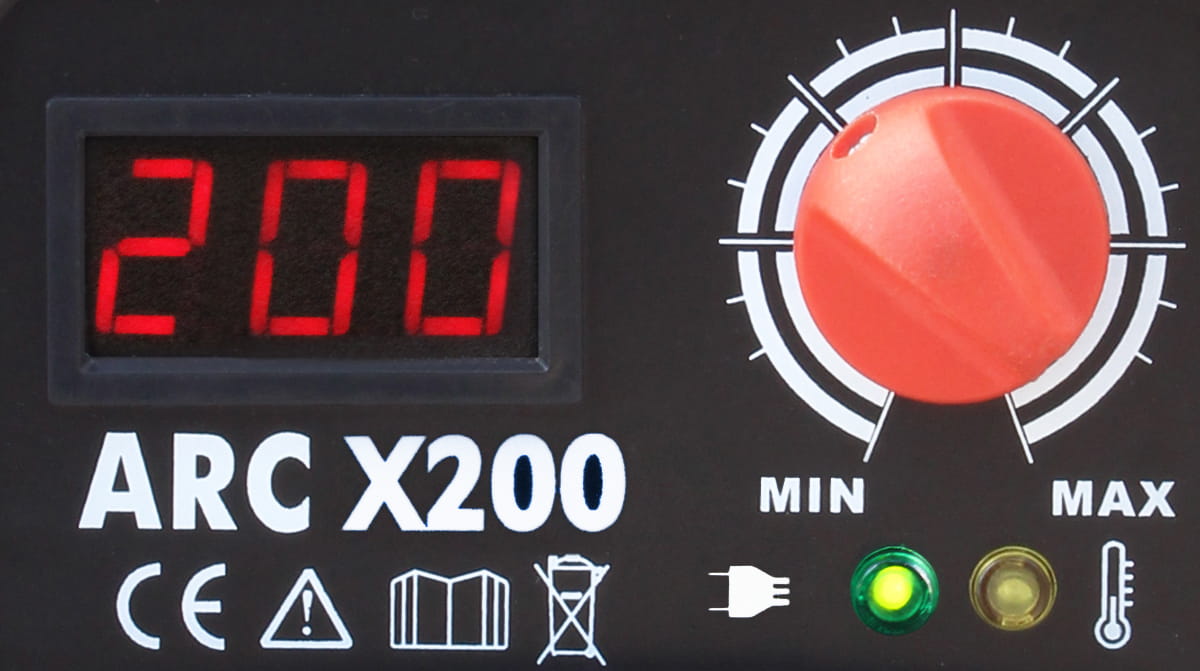

PANEL FUNCTIONS:
- welding current adjustment,
- welding current display,
- power supply indicator,
- overheating indicator.
SET INCLUDES:
- Welder Fantasy ADORE X200 welding machine,

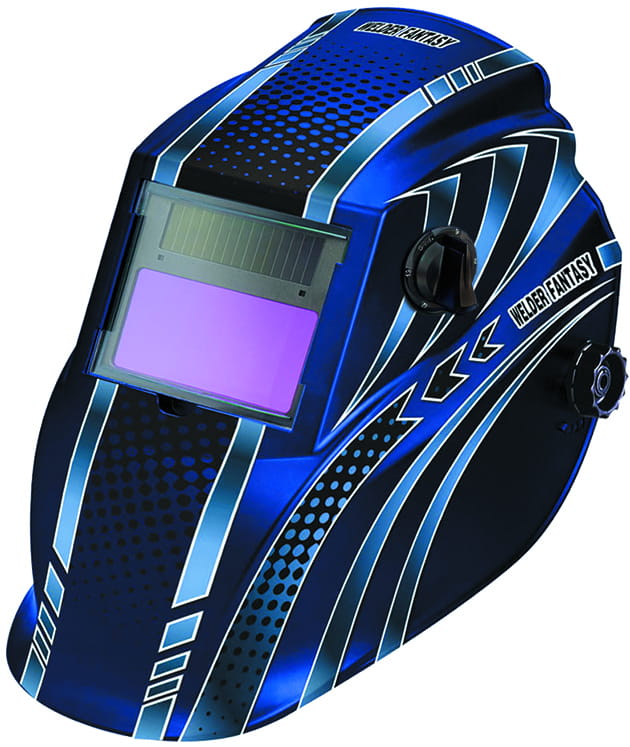

- auto-darkening welding helmet

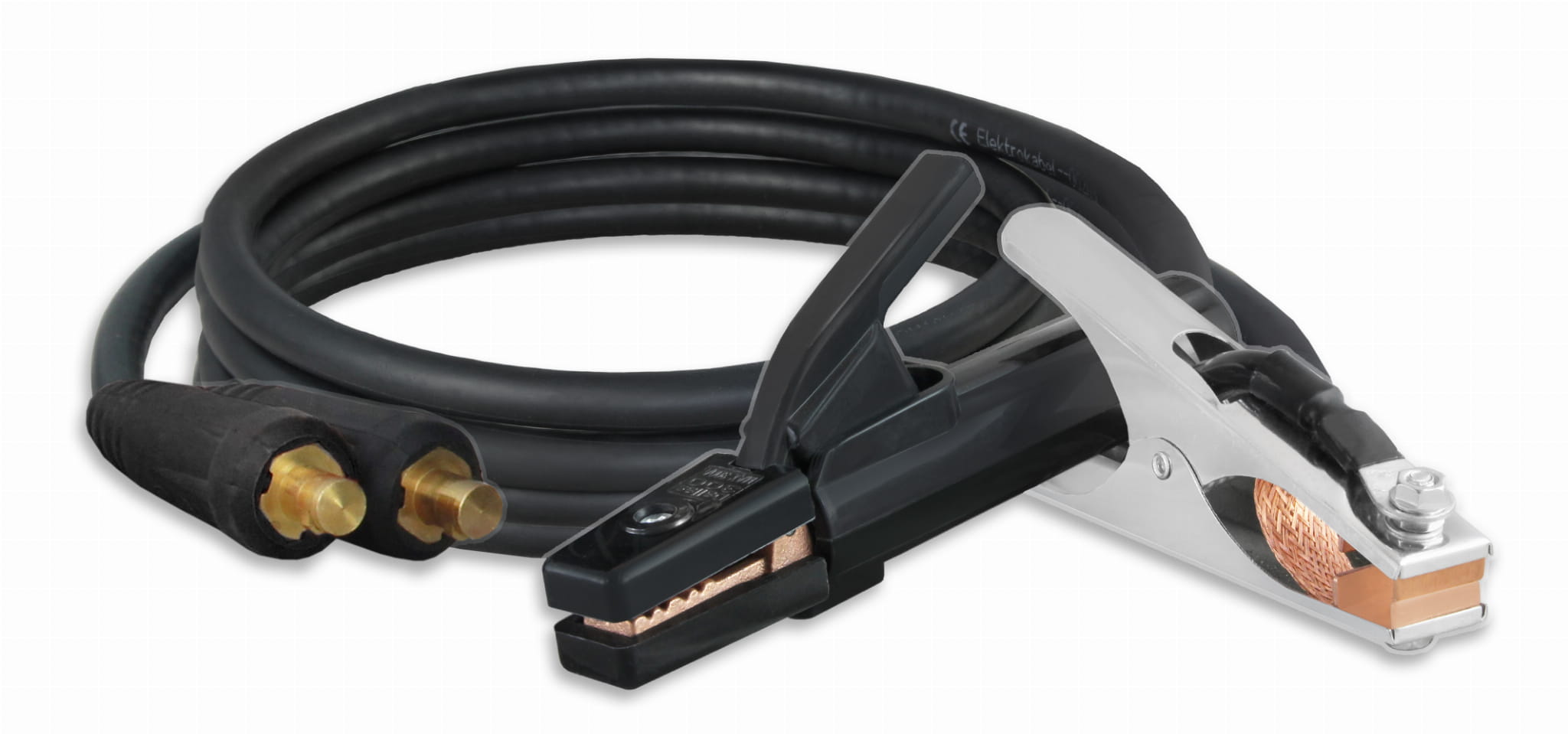

- electrode holder 2.5 m,
- ground clamp 2.5 m,
- chipping hammer with wire brush,
- welding mask,
- user manual and warranty card.
View the device presentation >>>
TECHNICAL DATA:
| Power supply voltage [V] | 1~230 ± 10% |
| Supply frequency [Hz] | 50/60 |
| Power consumption [kVA] | 6.9 |
| Minimum delayed protection [A] | 20 |
| Power factor COSφ | 0.93 |
| Protection class | IP21S |
| Dimensions [mm] | 320 × 135 × 255 |
| Weight [kg] | 4.9 |
| MMA PARAMETERS | |
| No-load voltage [V] | 60–80 |
| Welding current range [A] | 20–200 |
| Duty cycle 60% [A] | 200 |
| Duty cycle 100% [A] | 160 |
| Welding electrode diameters [mm] | 1.6–4.0 |
