TIG WELDING TORCH PARKER SUREGRIP SGT225 FLEXIBLE 4M
Regular price:
product unavailable
add to wish list
Description
World-class

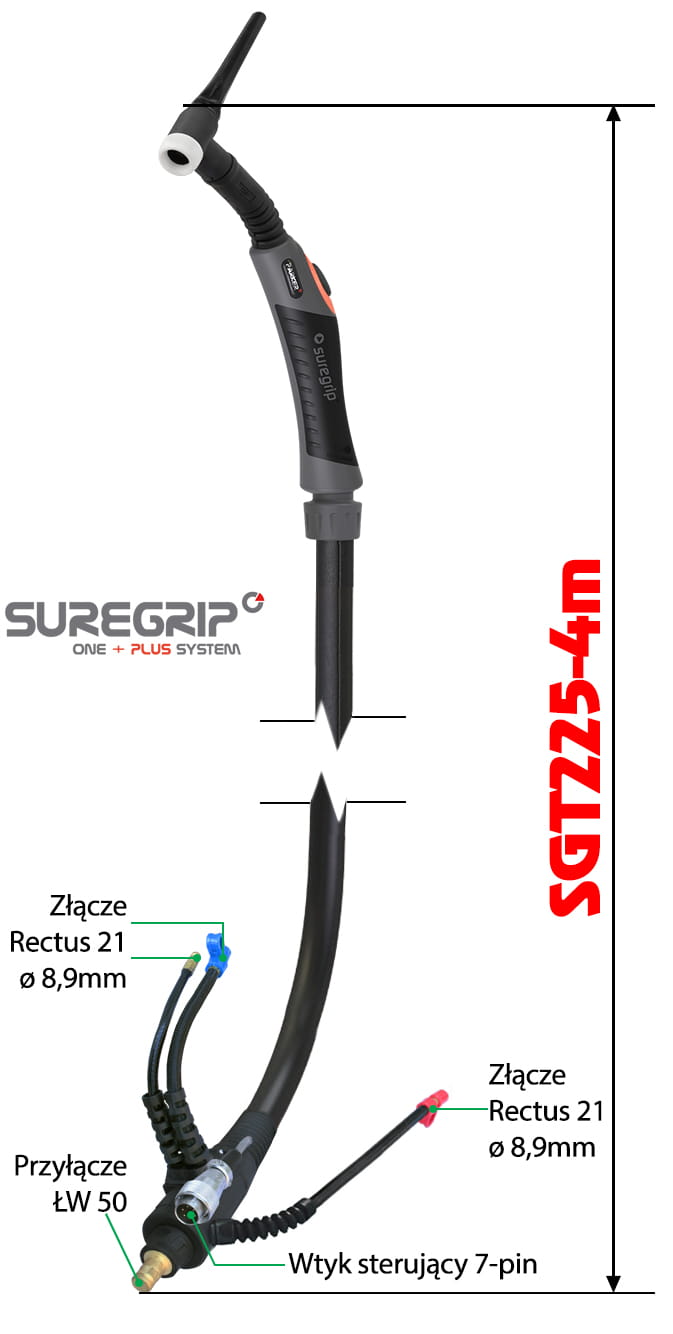

SGT225 FLEX 4m welding torch with a flexible torch head, liquid-cooled, designed for TIG welding.
PARKER welding torches offer:
- maximum performance,
- premium-quality materials,
- simple design,
- modern solutions.

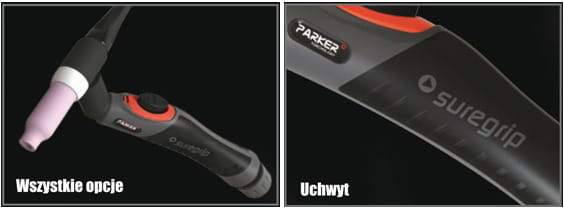

PARKER SUREGRIP Ergo Tig torches allow the use of any torch head type, including: standard, valve, Flex, and Multijust. This enables each torch to be configured according to the individual needs of the user. Flex and Multijust torch heads are recommended for welders who regularly work in difficult-to-access areas where welds must be made. These torch heads make welding easier by allowing the optimal welding position to be achieved.

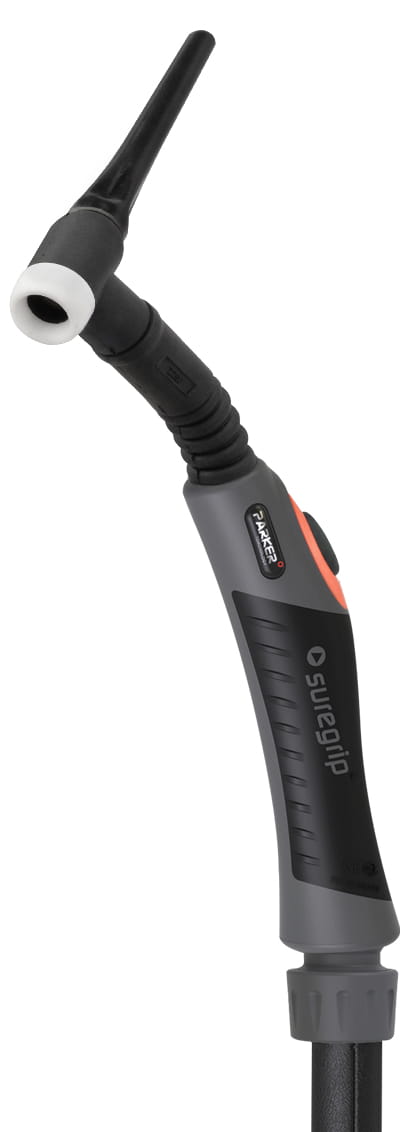

The PARKER SUREGRIP series features an ergonomic rubberized handle that provides a secure grip. The highest-quality materials, unavailable in other welding torches, are used in their production.

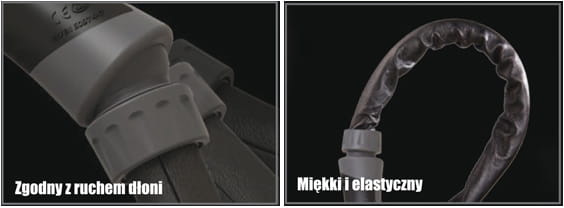

Every PARKER SUREGRIP torch is equipped with a swivel joint that adapts even to the smallest movements of the operator's hand, minimizing user fatigue.
The PARKER SUREGRIP welding torch series combines modern design, elegance, and high resistance to mechanical damage. PARKER SUREGRIP Ergo Tig torches come standard with a leather handle cover, ensuring unrestricted operation.

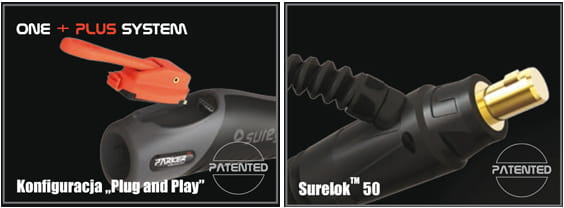

All PARKER SUREGRIP torches are equipped with a unified multifunctional system that allows quick configuration according to the user's requirements. Once selected, the welding torch can be freely reconfigured through simple and fast changes using the "Plug & Play" system. PARKER TORCHOLOGY ONE + PLUS SYSTEM is the ultimate solution for premium-quality welding torches.
PARKER SUREGRIP torches are equipped with the SURELOK connector, the world's most widely used connection type. The torch plug has been designed to achieve the smallest possible size. The compact SURELOK connector allows compatibility with any TIG welding machine equipped with an ŁW 50 socket.

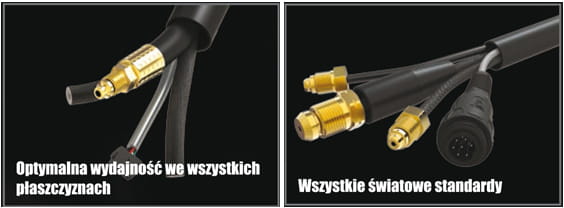

The PARKER SUREGRIP torch range comes standard with all cables protected by a rubber sheath. This ensures excellent performance, durability, and flexibility of PARKER SUREGRIP Ergo Tig welding torches.
All PARKER SUREGRIP Ergo Tig torches can be adapted to any global standard by changing the power/gas connector, gas plug, control plug, and coolant connectors (for liquid-cooled torches). This allows the torch to be configured for virtually any TIG welding machine.
Watch the product presentation:
TECHNICAL SPECIFICATIONS:
|
Cooling method |
Liquid-cooled |
|
DC rating: [A] |
225 |
|
AC rating: [A] |
160 |
|
Duty cycle [%] |
100 |
|
Electrode diameter [mm] |
1.0-3.2 |
|
Minimum coolant flow rate [l/min] |
1.0 |
|
Minimum inlet pressure [bar] |
2 |
|
Minimum cooler power [W] |
600 |
|
Maximum inlet pressure [bar] |
5 |
|
Maximum coolant temperature [°C] |
50 |
|
Connection type |
SURELOK ŁW-50 |
|
Torch length [m] |
4 |
