The multifunction device Welder Fantasy MAGIC MIG II 250 is designed for manual arc welding using the GMAW (Gas Metal Arc Welding) method – MIG/MAG, TIG and MMA (Manual Metal Arc Welding).

"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK OF FACHOWIEC.

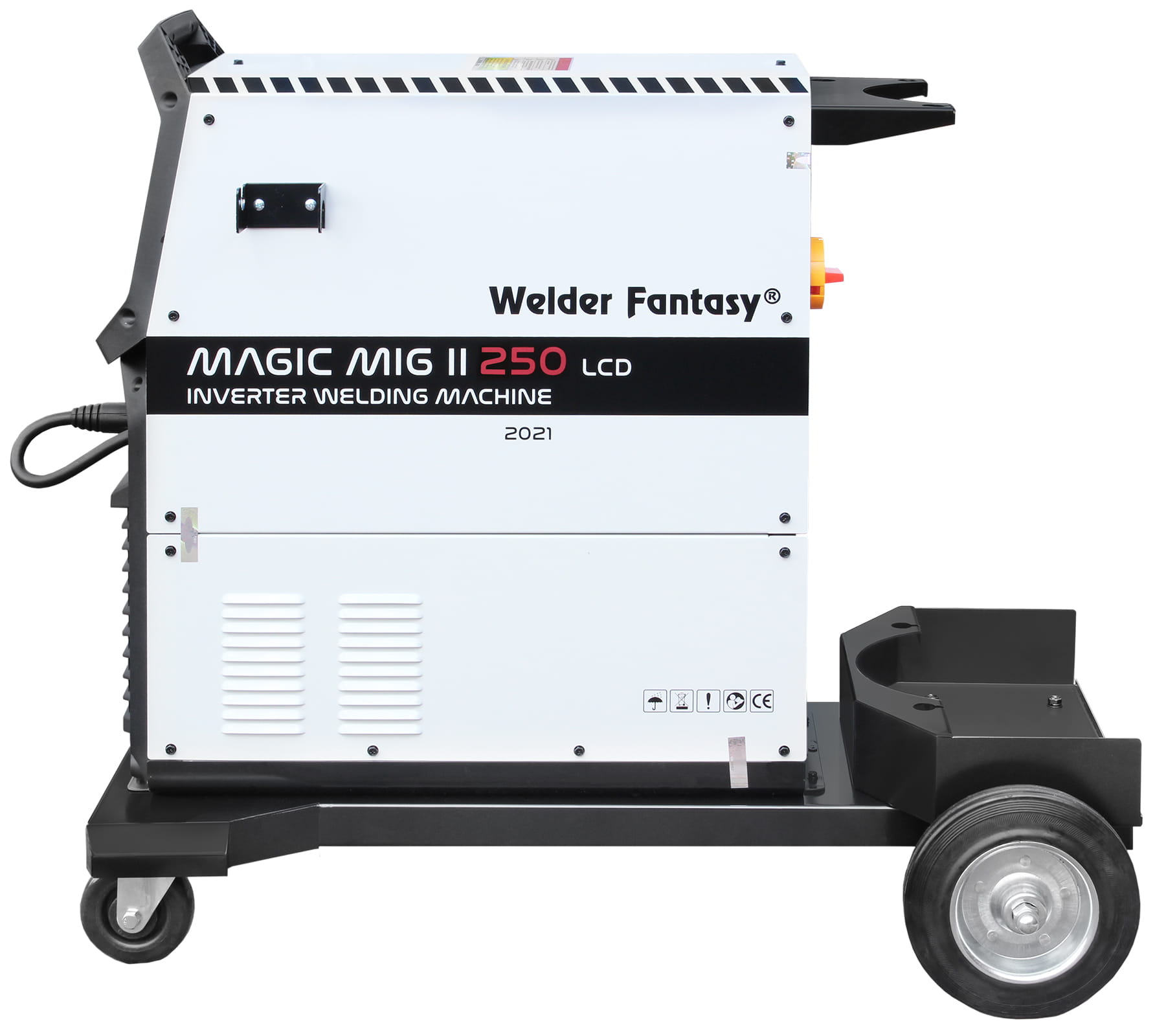

The Welder Fantasy MAGIC MIG II 250 is a modern, synergic inverter power source offering many possibilities for welding applications. Its main advantages include synergic MIG/MAG welding mode. Reliability and a wide range of applications make these devices suitable even for the most demanding users.

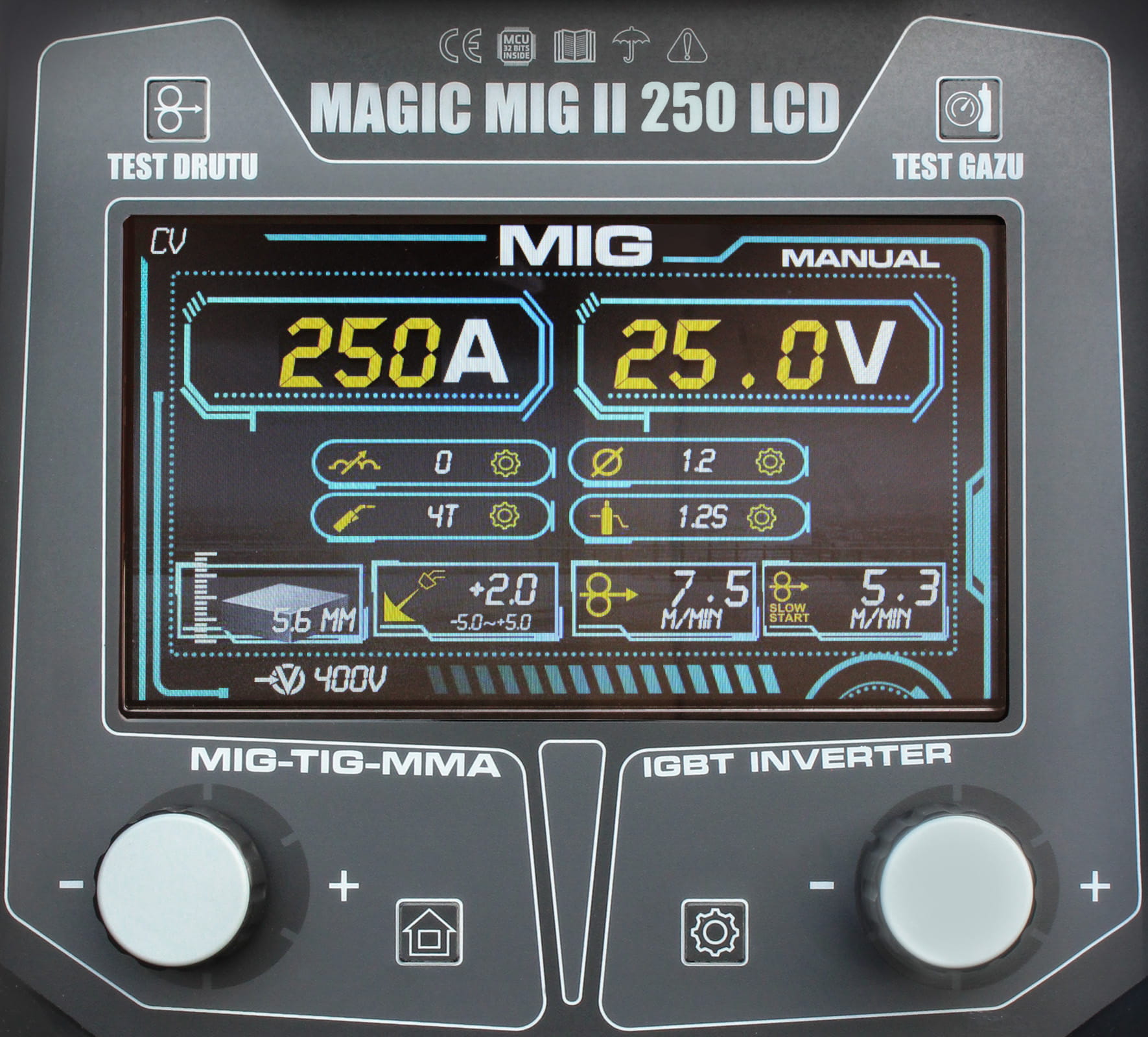

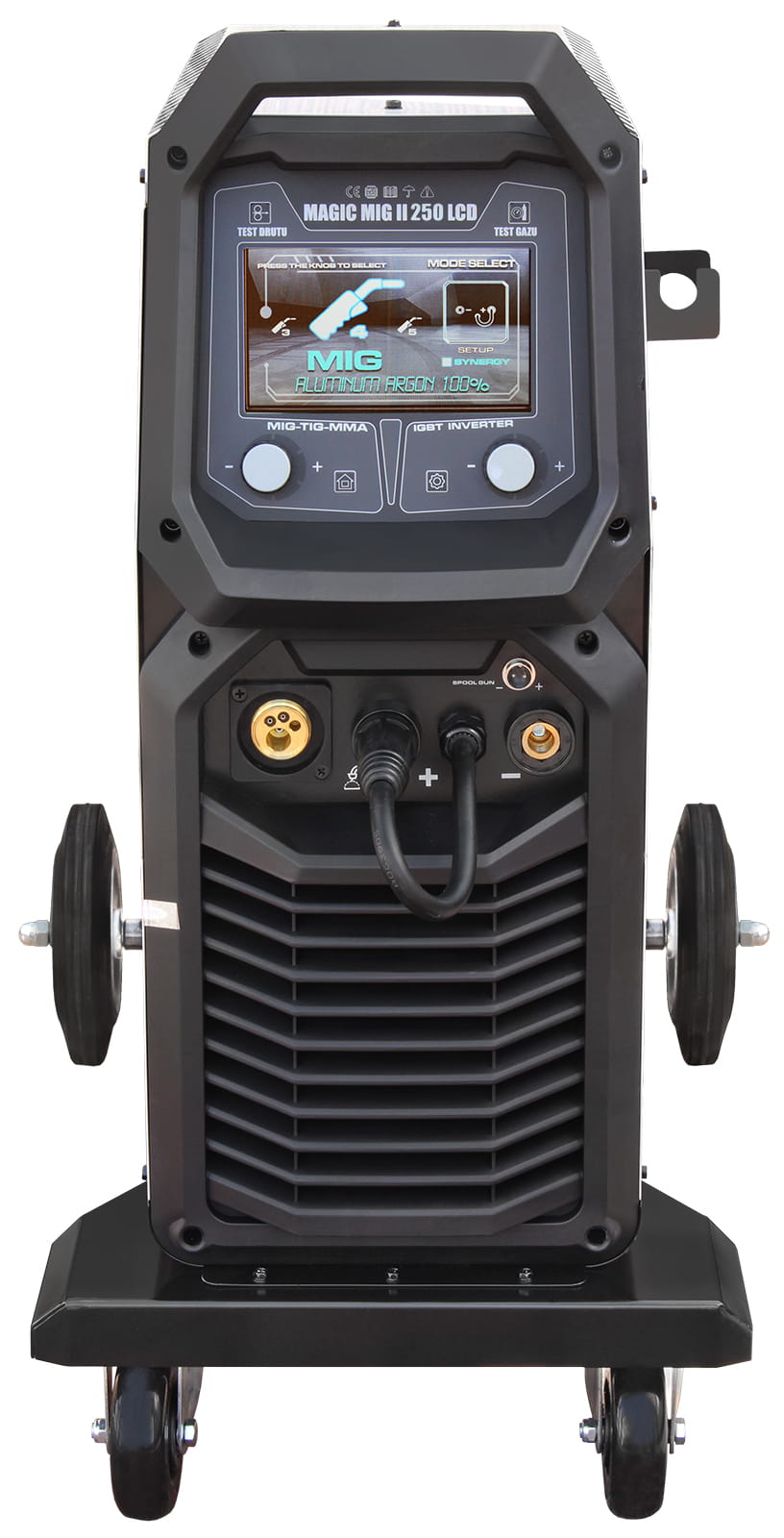

An intuitive, easy-to-use control panel with a color display allows quick adjustment of all key welding parameters.

Thanks to synergic settings, welding parameters can be automatically selected according to the wire diameter as well as the thickness and type of material.

The device features smooth adjustment of welding voltage and current and is equipped with an overload thermal protection system to prevent overheating of electronic components.

The Welder Fantasy MAGIC MIG II 250 welder allows operation in the following modes:

• MIG/MAG
• FCAW
• TIG DC Lift
• MMA – shielded electrode welding

Thanks to the use of modern IGBT technology and high-quality components, the WELDER FANTASY MAGIC MIG II 250 devices are ideal for professional welding work in industries such as automotive, metal structures, and many others.

IGBT technology – Insulated Gate Bipolar Transistor – is a modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field-effect transistors with the high breakdown voltage and fast switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation time of welding devices.

AUTO – synergic settings – automatic adjustment of welding parameters such as voltage, arc current and wire feed speed. The device automatically selects welding parameters according to wire diameter and material thickness and type.

MIG/MAG – Gas shielded arc welding is one of the most widely used processes in the production of welded structures. The semi-automatic welding process involves melting the edges of the workpiece and the consumable electrode material with the heat of an electric arc formed between a solid wire electrode and the welded element, in a shielding gas atmosphere (inert or active).

FCAW – Thanks to polarity change capability, it is possible to weld without shielding gas using self-shielded flux-cored wire. This method is used for welding (in all positions) normal and higher-strength steels not exceeding 510 MPa. The wire can be used in single- and multi-layer welding processes with both flat and drooping characteristic power sources. Intended for general production work, including field conditions, and for welding structures without impact strength requirements. Welding current DC(-).

TIG DC LIFT – Tungsten electrode welding in an inert gas shield. This method allows welding of all types of steel, including carbon, alloy, stainless and acid-resistant steels, as well as copper alloys such as bronze and brass.

MMA – A method using a coated electrode consisting of a metal core covered with flux. The welder feeds the electrode as it melts to maintain a constant arc length while moving the molten end along the welding line. The device allows welding with all types of electrodes, e.g., basic, cellulose, rutile or acidic.

MMA VRD – In MMA mode, the VRD (Voltage Reduction Device) function reduces the idle secondary circuit voltage. It increases safety and reduces the risk of electric shock. The function switches welding power on and off when resistance between the electrode and the workpiece is detected during welding.

SPOOL GUN – Possibility to use a SPOOL GUN torch with a built-in wire feeder (not included in the set, available under code MM2S). The method allows welding both with shielding gas and with self-shielded wire without gas.

ADDITIONAL FUNCTIONS:

• Inductance adjustment in MIG/MAG method. Properly selected welding inductance reduces spatter. It depends on wire diameter, shielding gas used, current and welding position. Lower inductance makes the arc more stable and concentrated, while higher inductance produces a smoother weld pool and reduces spatter. Correct settings provide a stable arc, uniform metal droplet transfer, constant weld pool size and a characteristic repetitive sound without excessive spatter or explosions.
• Arc ignition: 2T – two-stroke, 4T – four-stroke.
• HOT START – facilitates arc ignition in MMA mode by temporarily increasing welding current at arc start to properly form penetration and weld bead at the initial stage.
• ARC FORCE – stabilizes the arc by maintaining arc voltage regardless of its length and helps control spatter.

DEVICE FEATURES:

• MIG/MAG welding capability
• Synergic settings
• TIG DC LIFT welding capability (TIG torch not included)
• MMA welding capability (shielded electrode)
• Compact design
• IGBT transistors
• 60% duty cycle
• LCD display of welding parameters

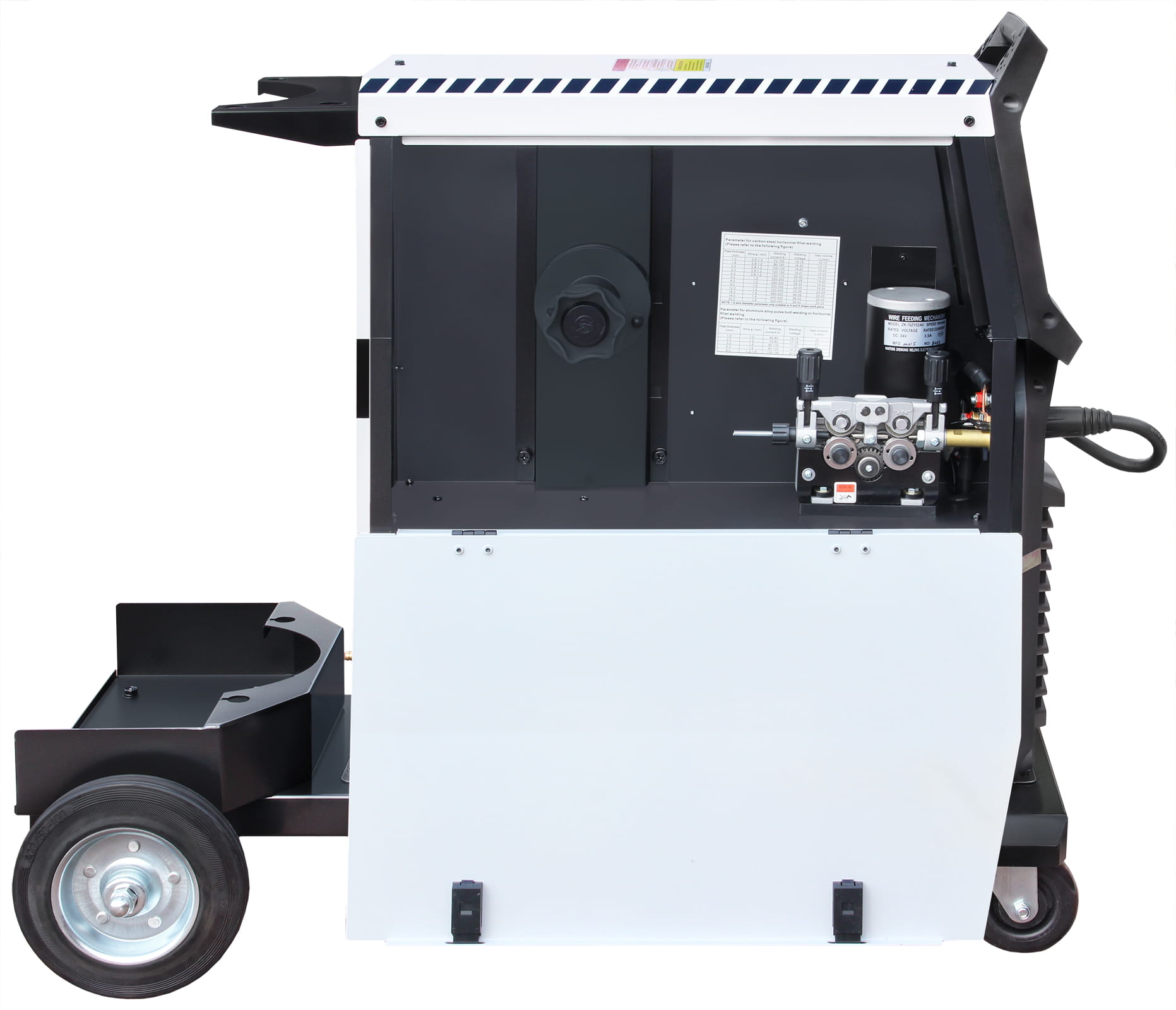

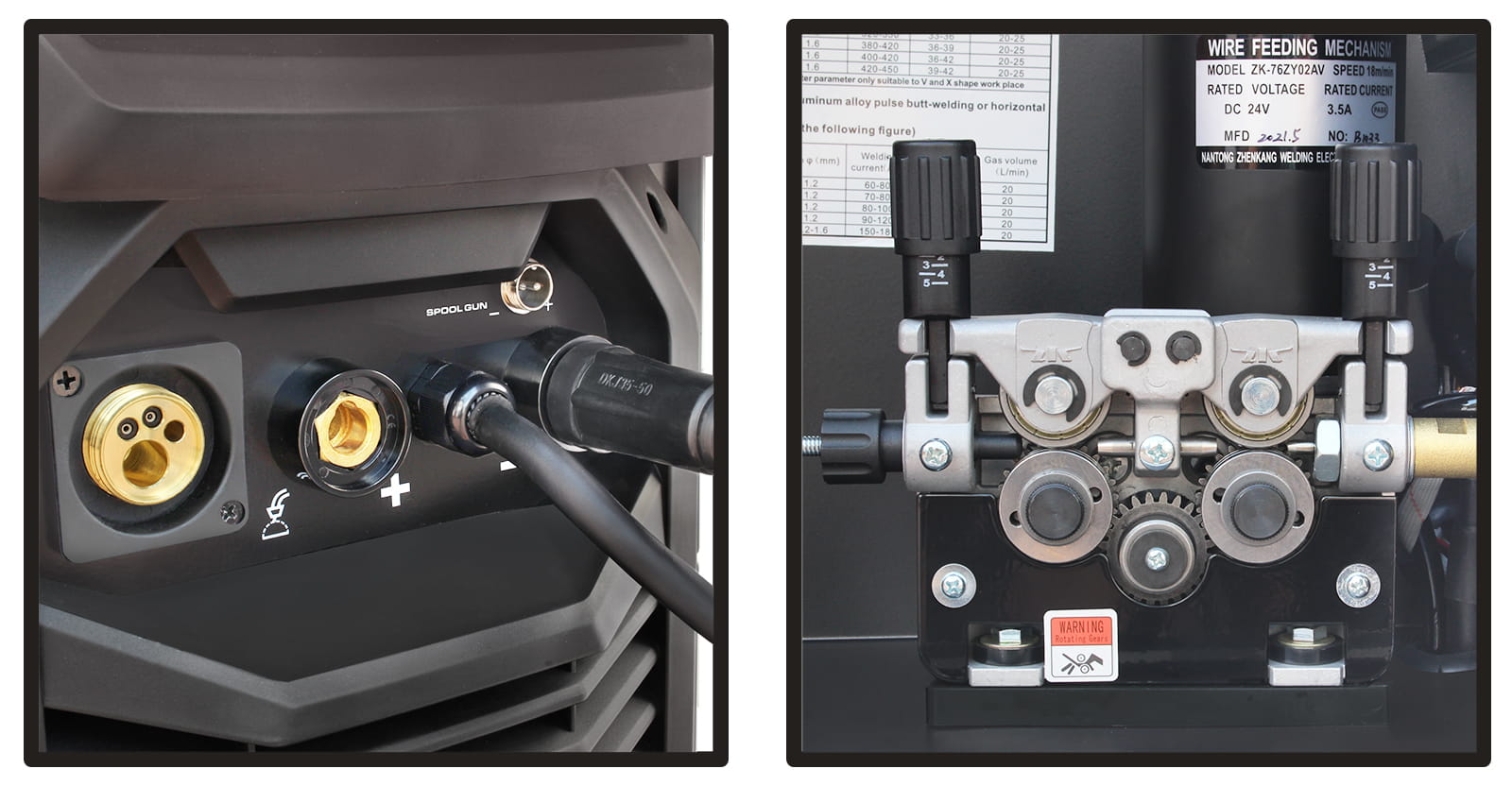

• Professional four-roll wire feeder
• Spool Gun compatibility

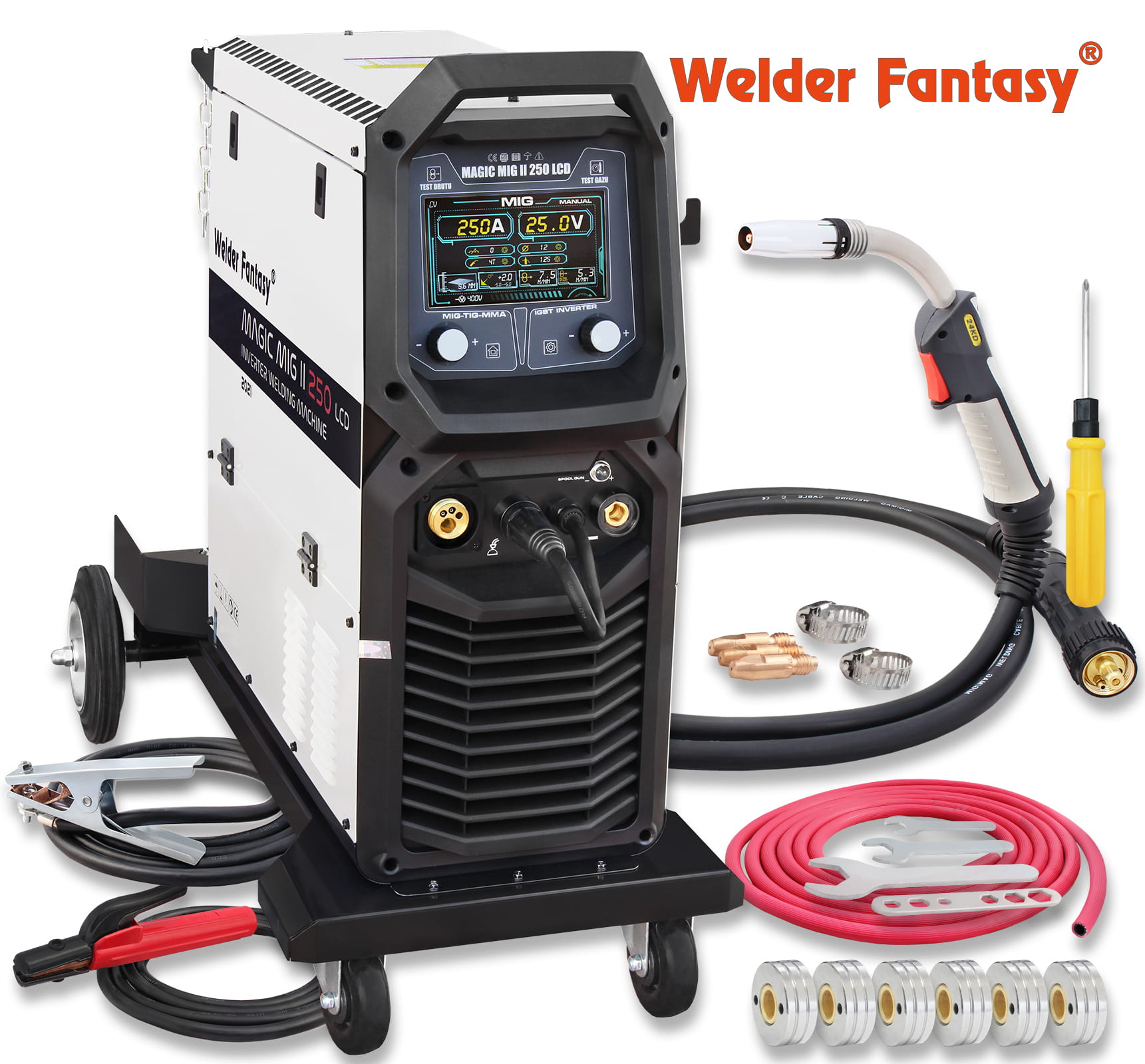

SET INCLUDES:

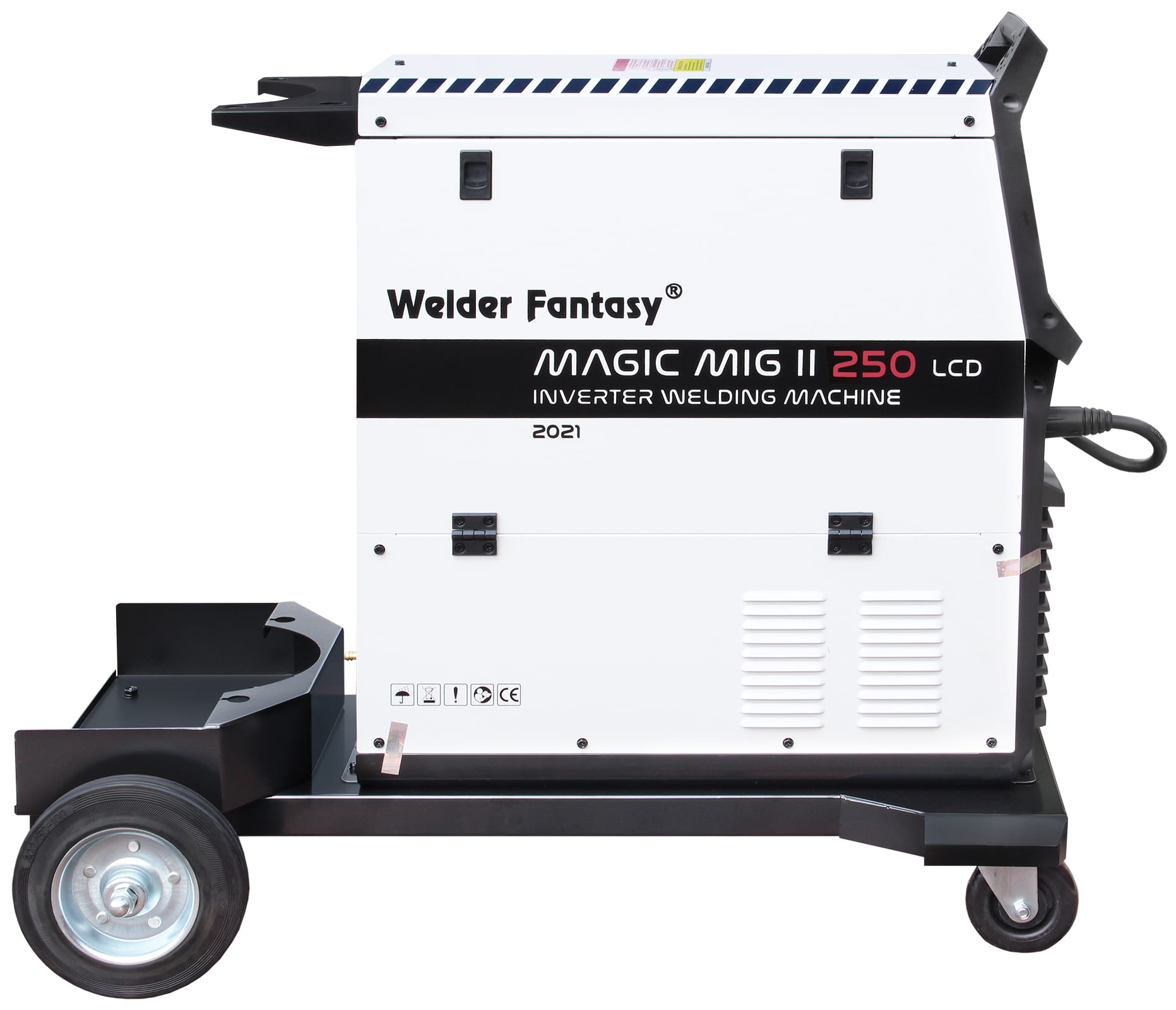

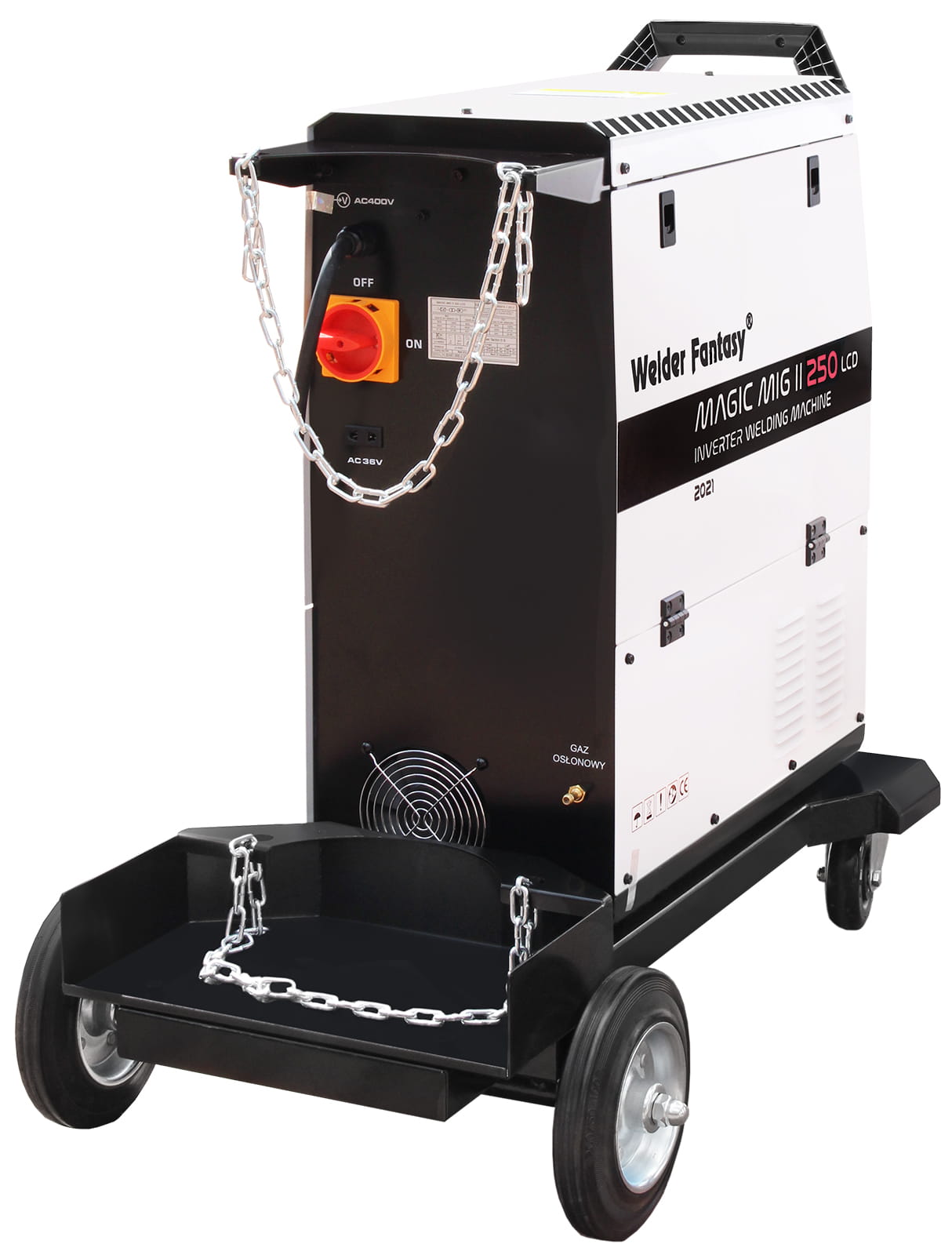

• Welder Fantasy MAGIC MIG II 250 welding machine

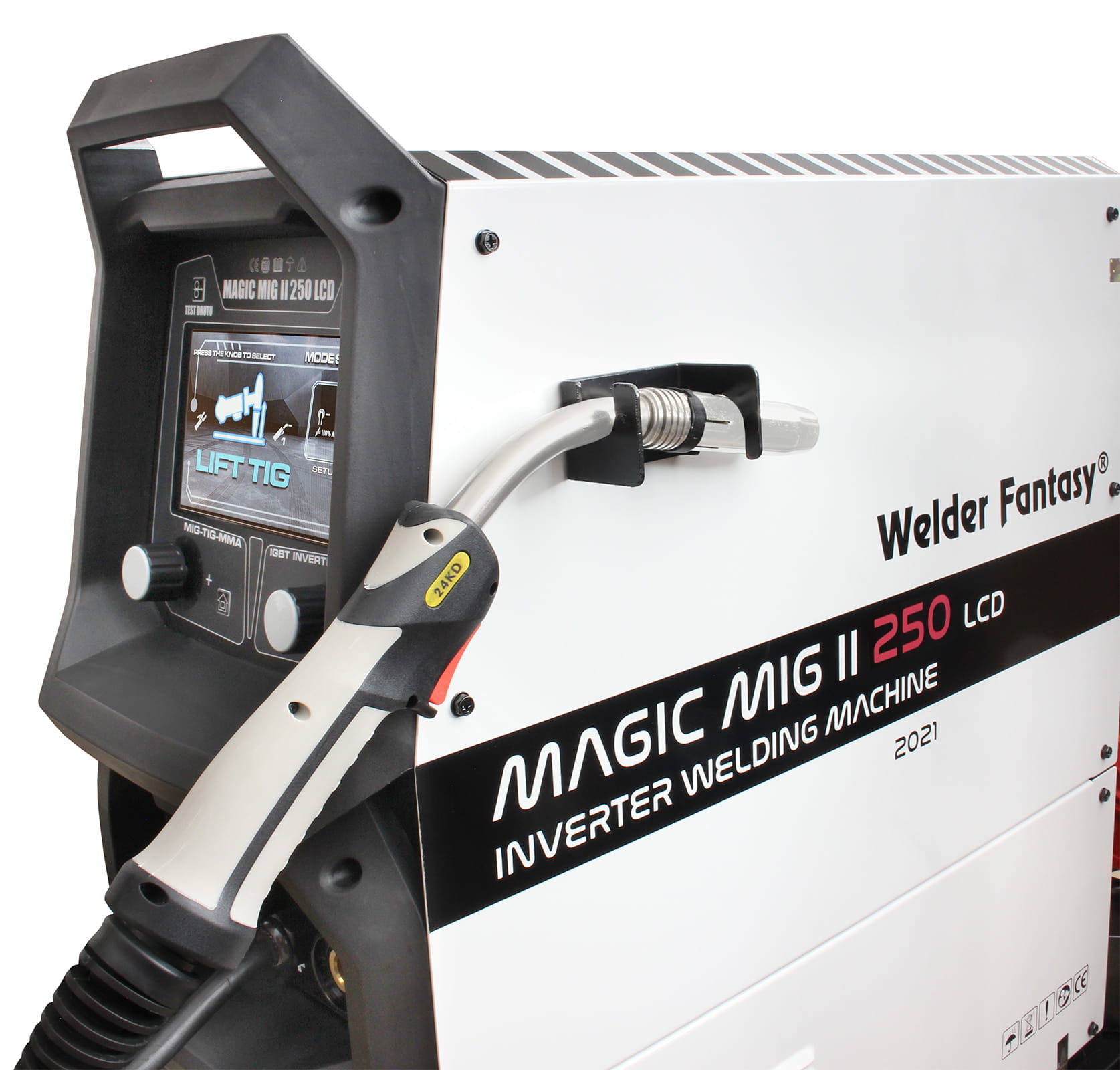

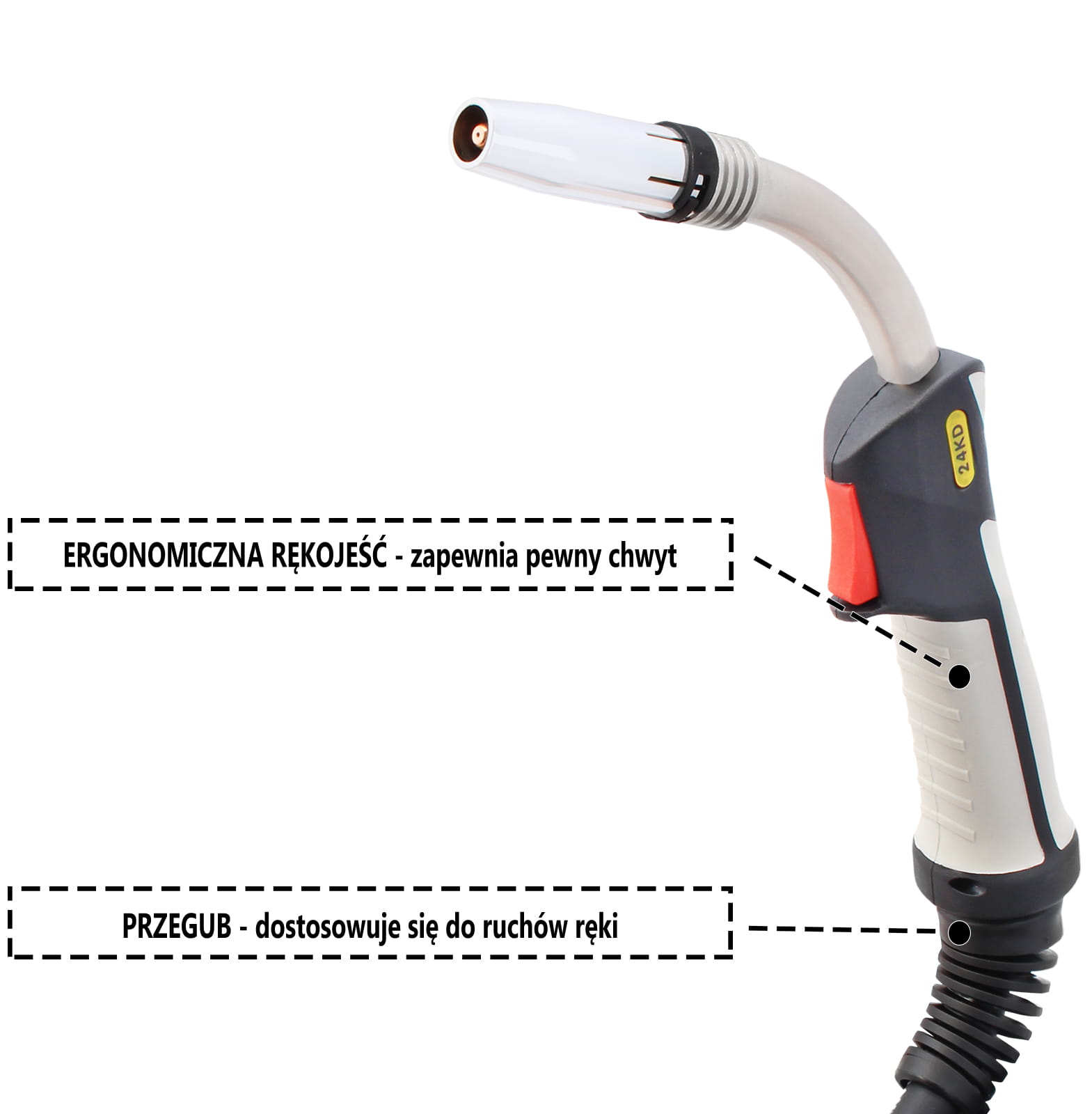

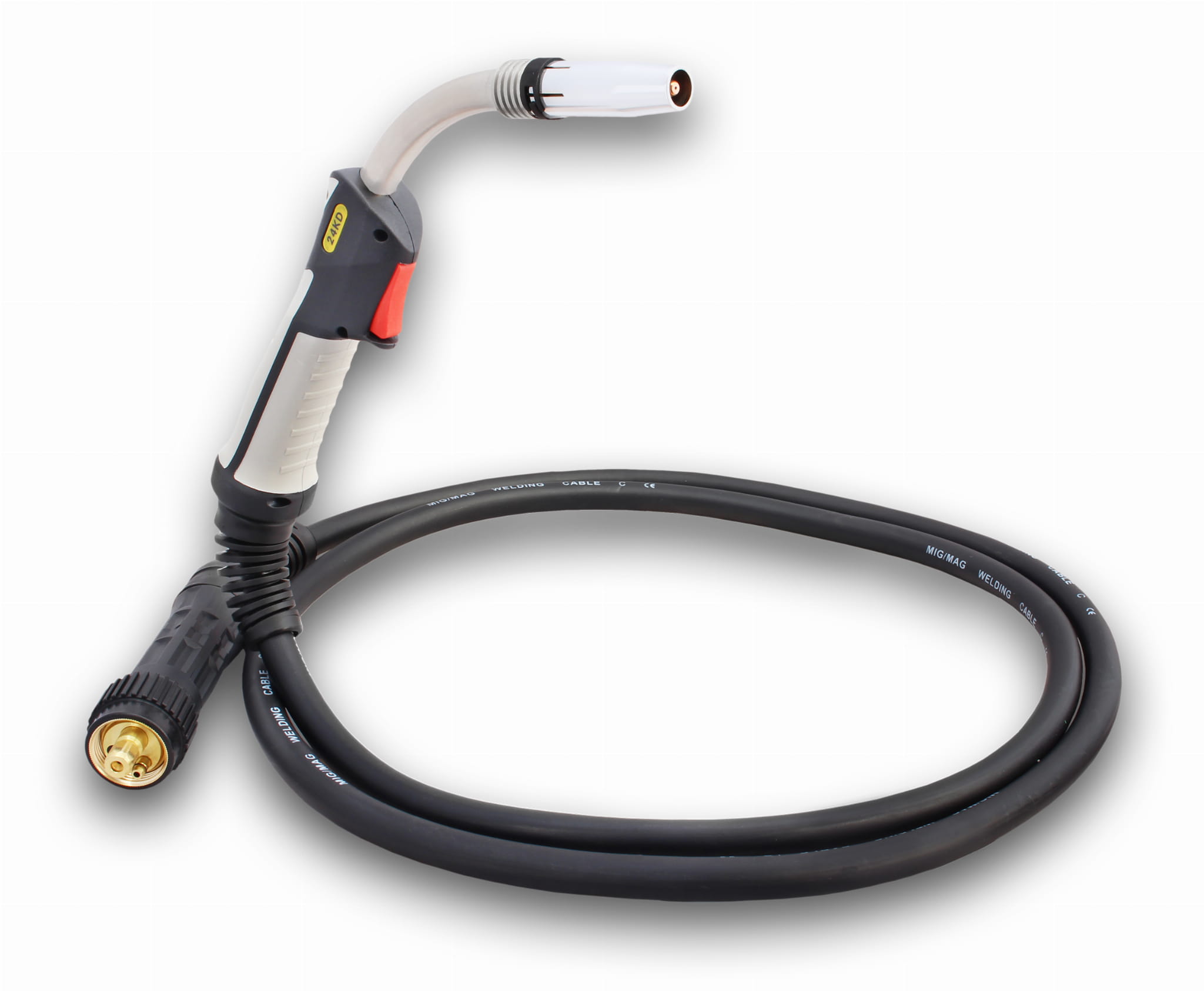

• MIG/MAG MB24 3m EURO welding torch

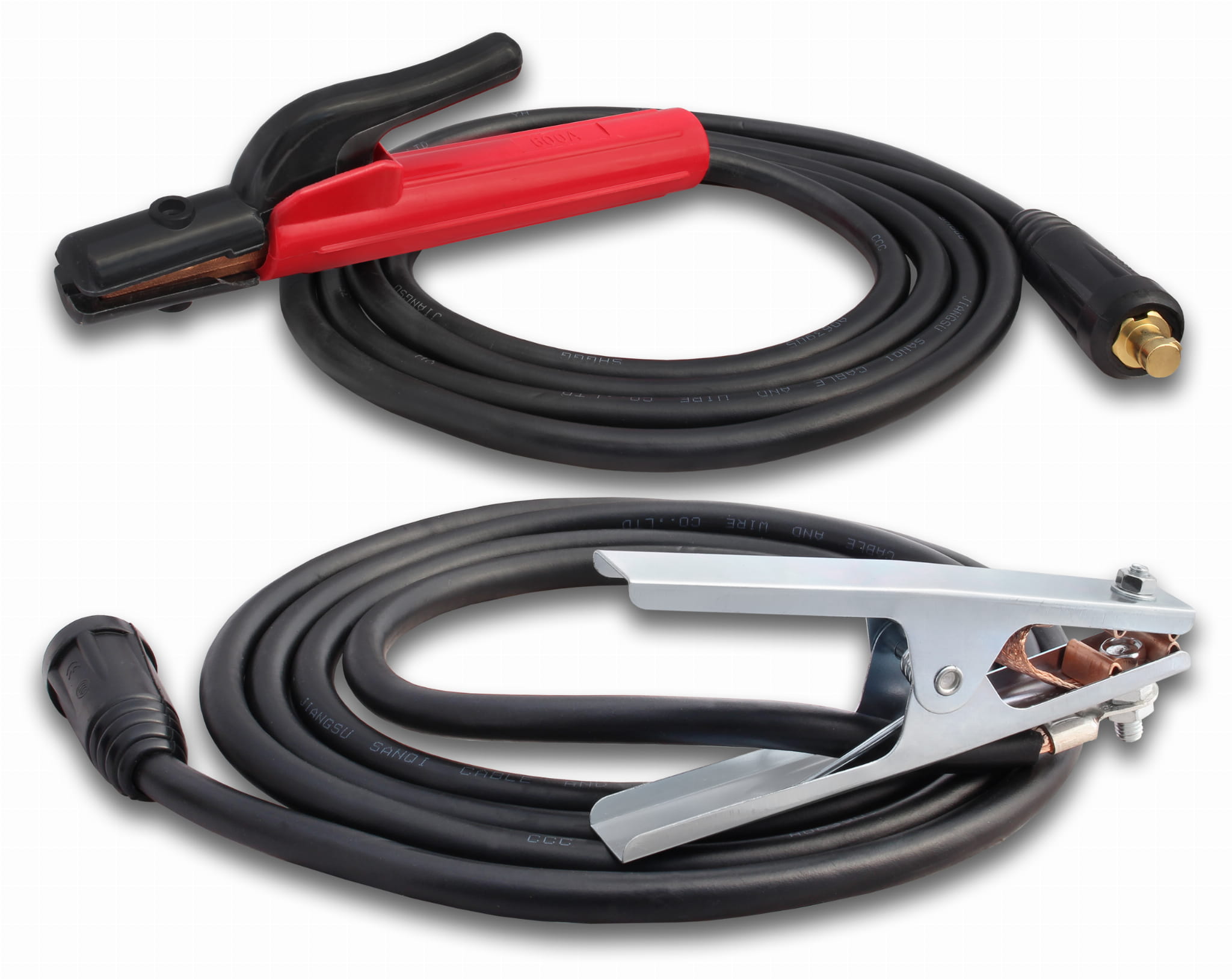

• 3 m ground cable
• 3 m electrode holder cable

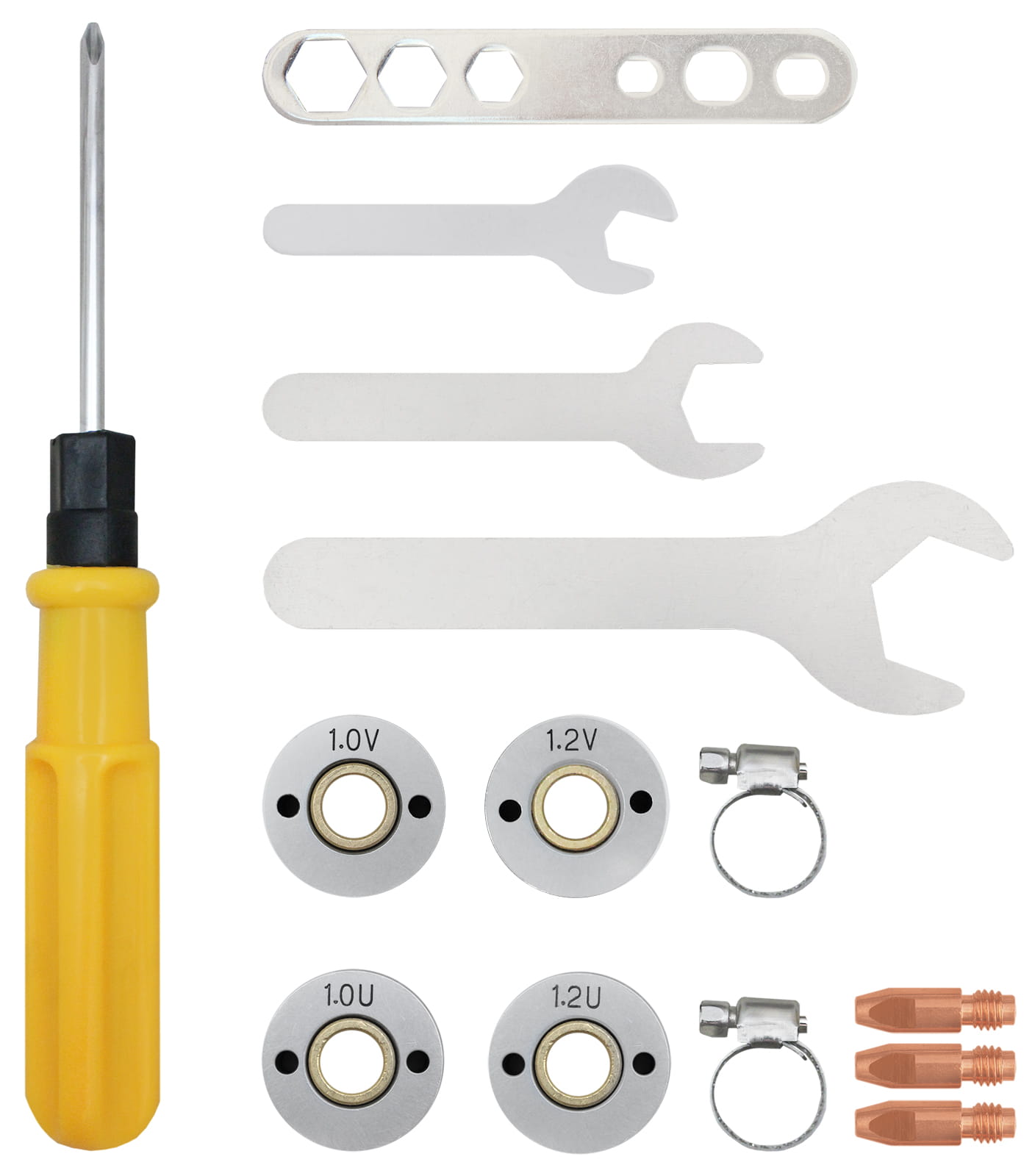

• 0.8–1.0V steel feed rollers (installed)
• 1.0–1.2V steel feed rollers
• 1.0–1.2U aluminum feed rollers

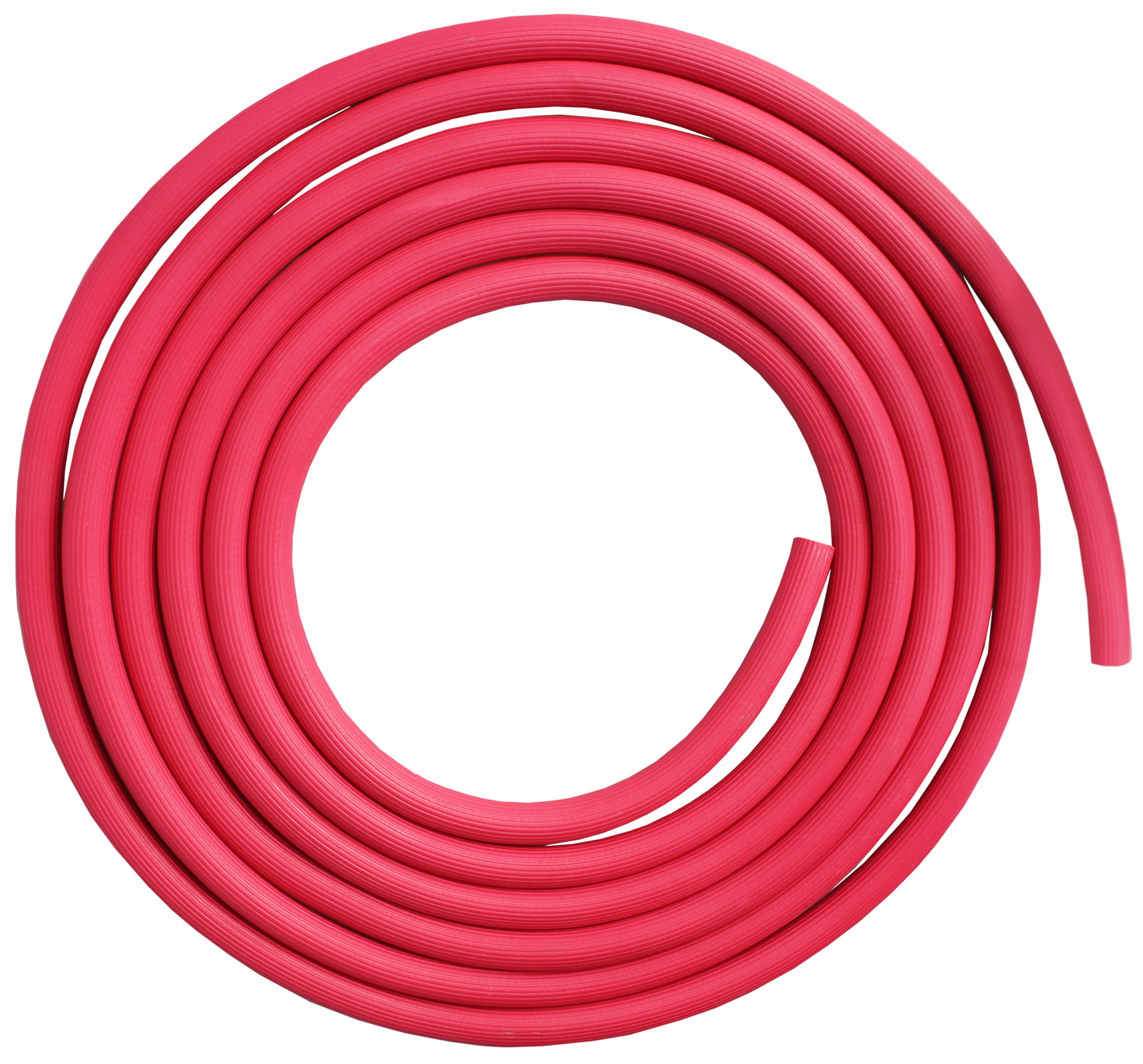

• Gas hose
• User manual (Polish) and warranty card

TECHNICAL DATA:

Download files:

MAGIC MIG II 250 User Manual
