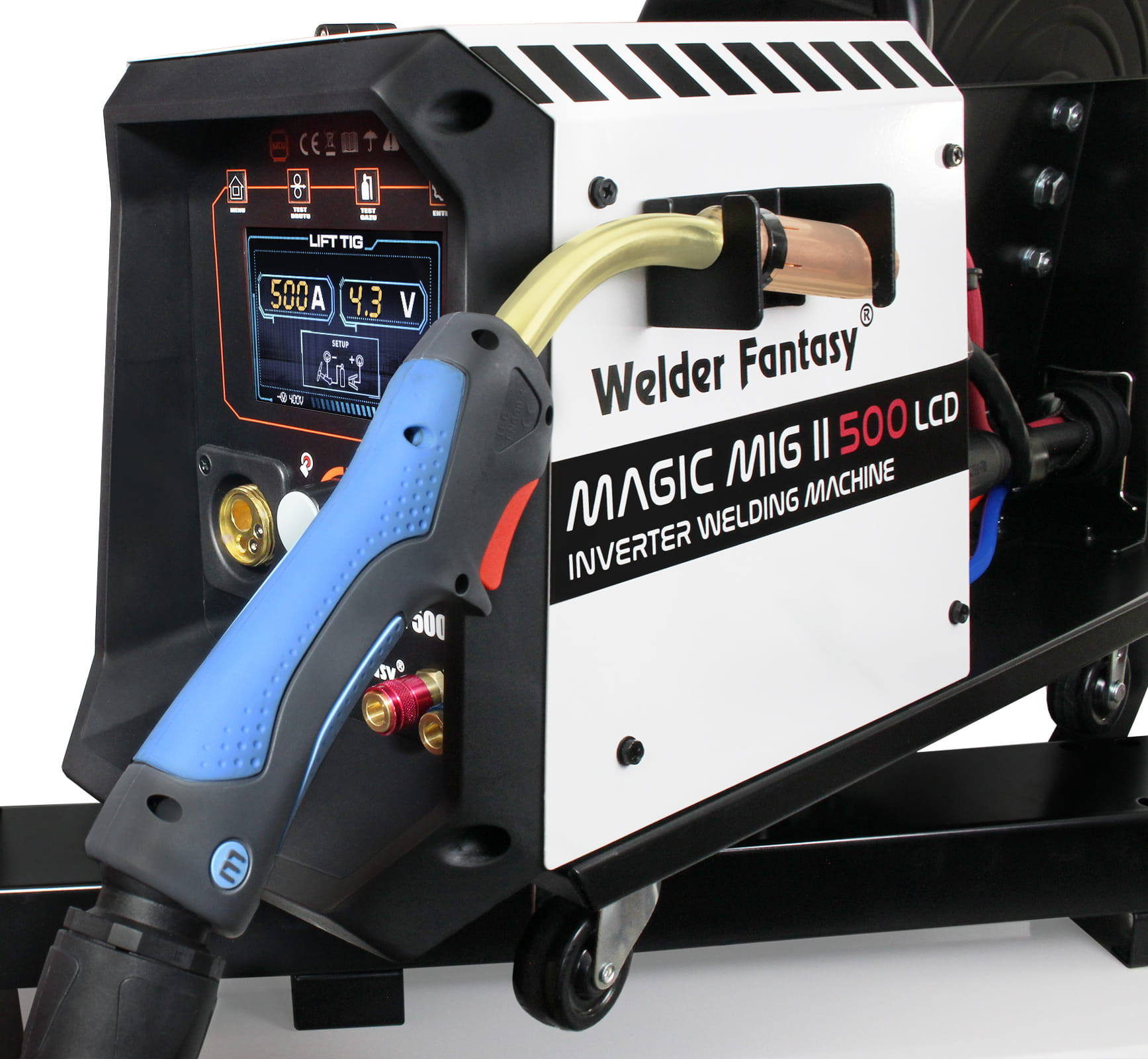

The multifunction device Welder Fantasy MAGIC MIG II 500 LCD is designed for manual arc welding using the GMAW (Gas Metal Arc Welding) method – MIG/MAG, TIG, and MMA (Manual Metal Arc Welding).

"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK OF THE COMPANY FACHOWIEC.

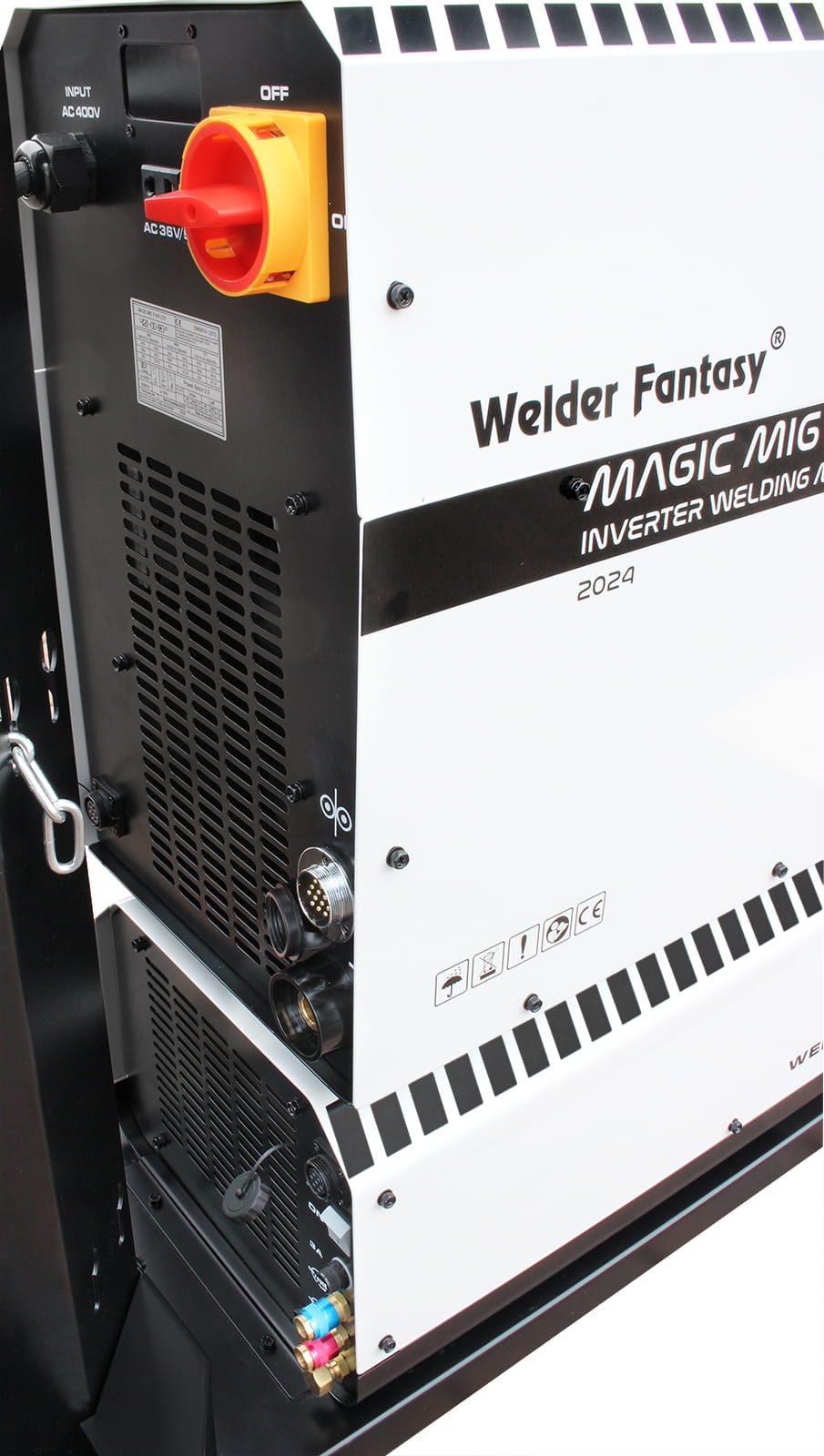

The Welder Fantasy MAGIC MIG II 500 TOWER LCD device is a modern, synergic inverter power source offering many possibilities when performing welding work. Its main advantages are very high power and the possibility of welding in synergic MIG/MAG mode. The reliability and wide range of applications of these devices ensure satisfaction even for the most demanding users.

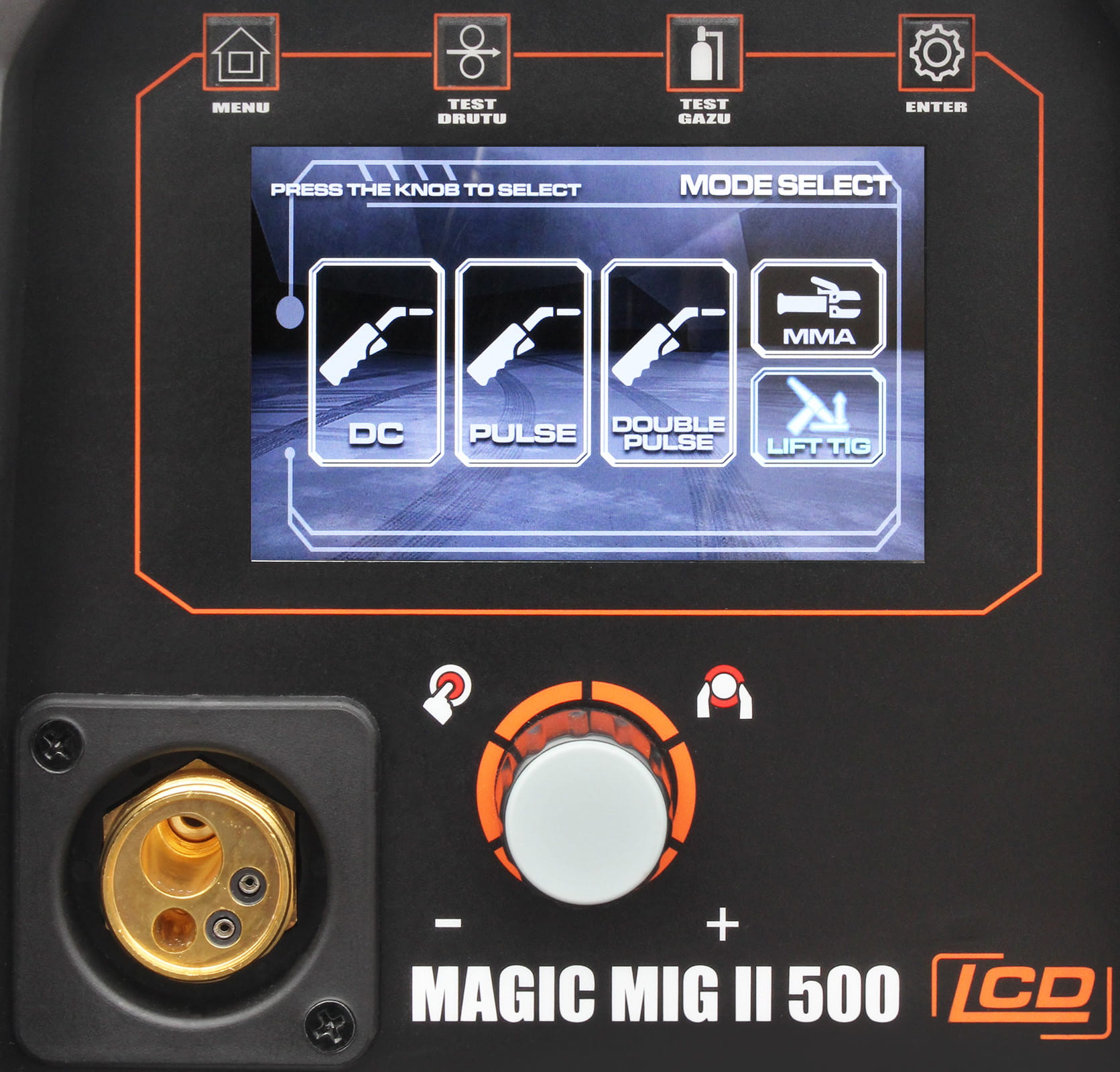

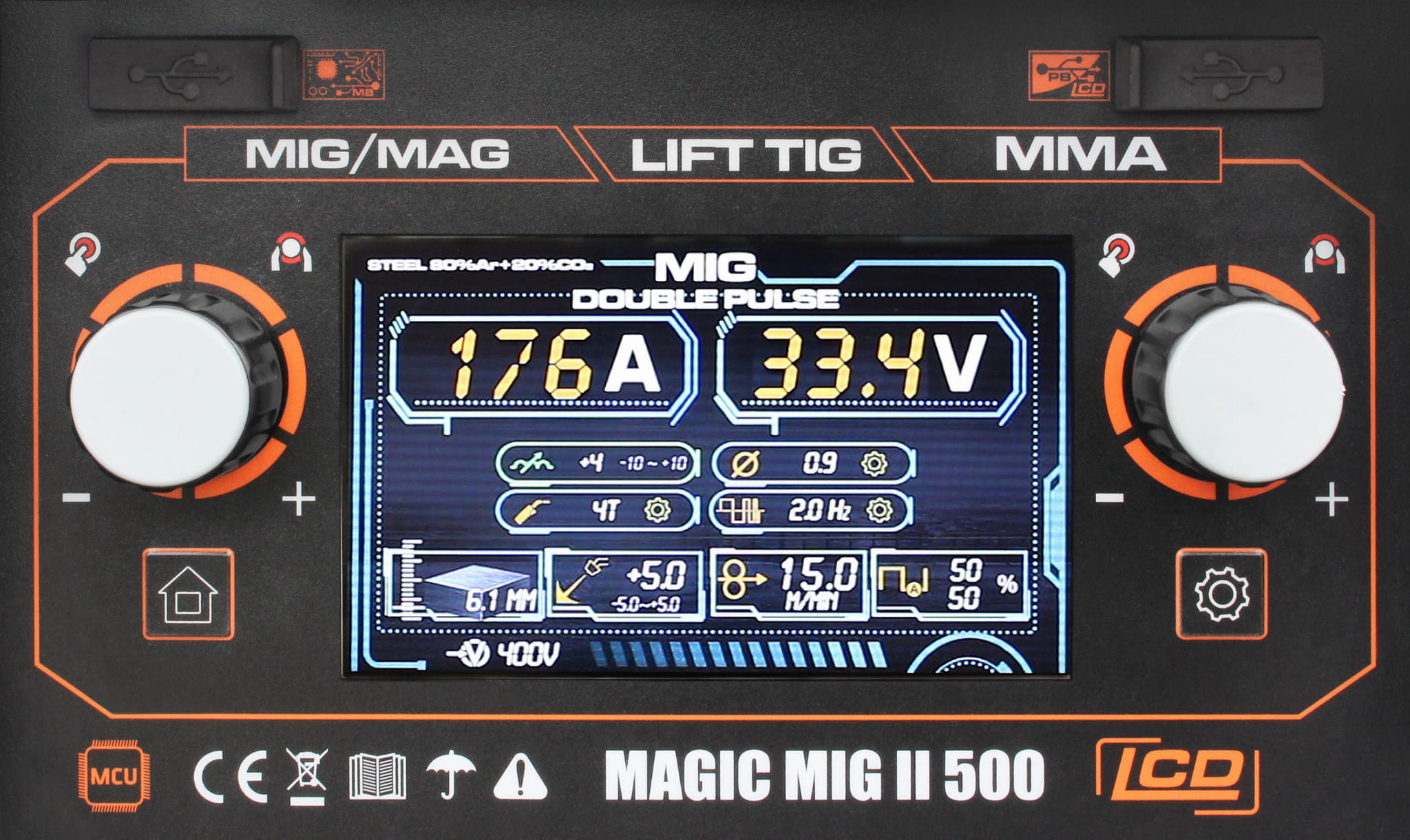

An intuitive, easy-to-use control panel with a color display allows for quick setting of all the most important welding parameters.

Thanks to synergic settings, it is possible to automatically select welding parameters according to the welding wire diameter as well as the thickness and type of material.

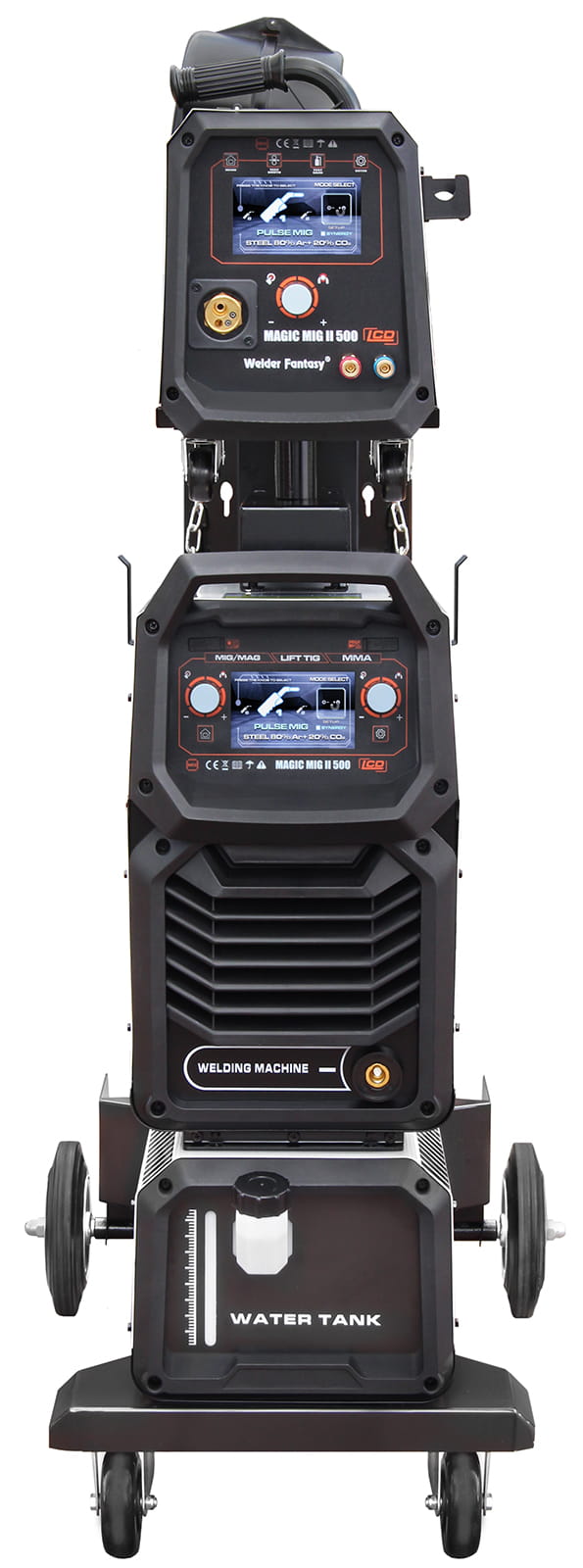

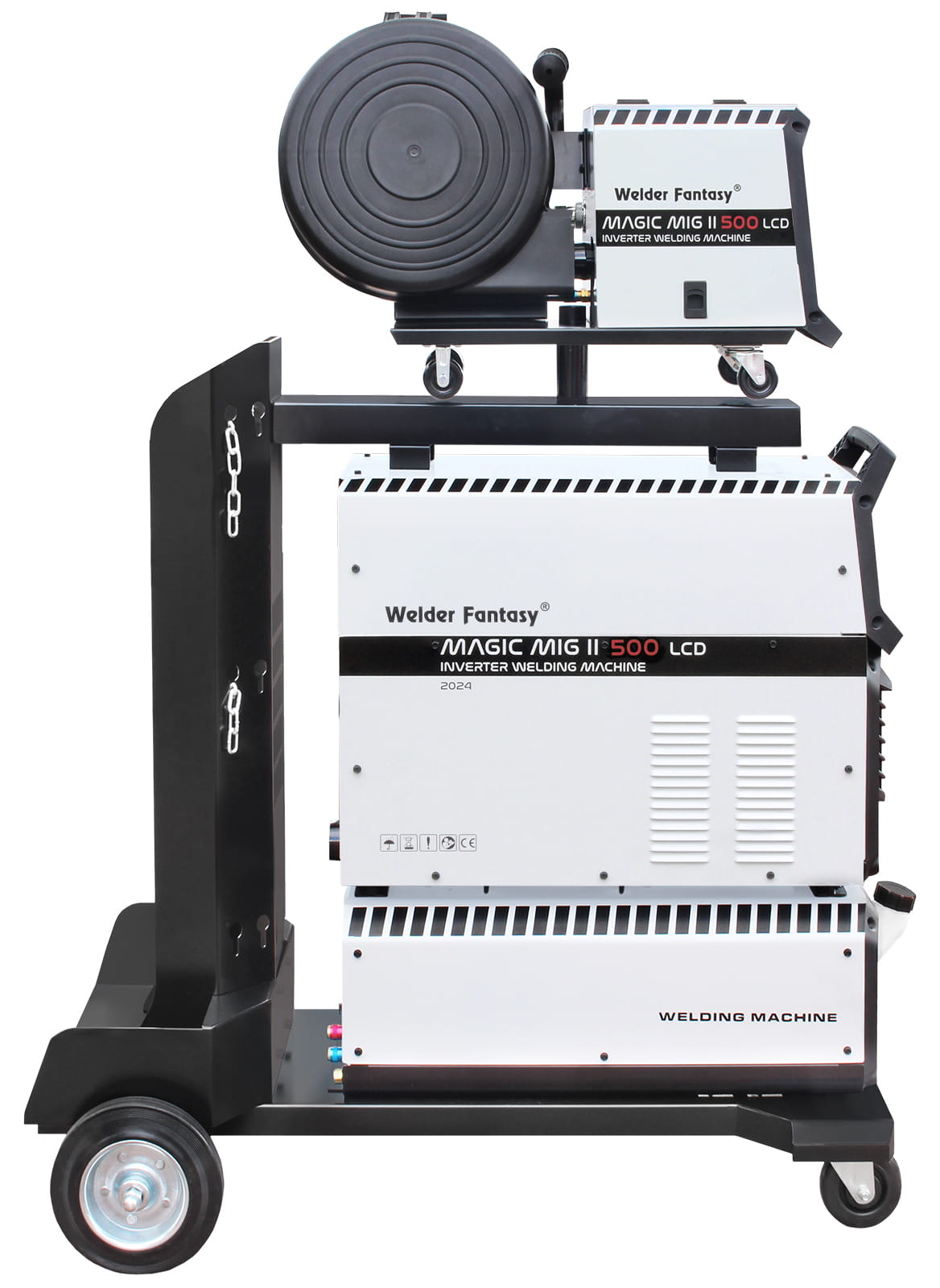

The multifunctional inverter welding machine Welder Fantasy MAGIC MIG II 500 4x4 TOWER is equipped with a cooler and a separate 4-roll wire feeder. Two control panels with LCD displays on the power source and on the wire feeder make it easier for the user to change settings without having to approach the power source each time. The use of a liquid-cooled torch significantly increases work comfort and extends the service life of consumable parts and the torch itself.

The device features smooth adjustment of voltage and welding current and is equipped with an overload thermal protection system protecting against excessive overheating of integrated circuits.

The Welder Fantasy MAGIC MIG II 500 TOWER welding machine allows operation in the following modes:

• MIG/MAG
• MIG/MAG pulse

• MIG/MAG double pulse
• FCAW,
• TIG DC lift
• MMA - shielded electrode welding.

Thanks to the use of modern IGBT technology and high-quality components, the WELDER FANTASY MAGIC MIG II 500 devices are ideally suited for professional welding work in industries such as automotive, metal structures, and many others.

IGBT technology - Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field-effect transistors with the high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation time of welding equipment.

AUTO - synergic settings - automatic adjustment of welding parameters such as voltage and welding arc current as well as wire feeder speed. The device automatically selects welding parameters according to the wire diameter and the thickness and type of material.

MIG/MAG - Arc welding in shielding gases is one of the most commonly used processes for manufacturing welded structures. The semi-automatic welding process consists of melting the edges of the welded object and the consumable electrode material with the heat of an electric arc burning between the electrode in the form of a solid wire and the welded workpiece, in a shield of inert or active gas.

MIG/MAG PULSE - an advanced form of welding that utilizes the best features of molten electrode material transfer to the welded workpiece. Unlike short-circuit transfer, pulsed welding does not produce spatter and does not pose a risk of cold laps. Welding positions in pulse mode are not limited, as they are derivatives of globular or spray transfer forms, and their use is significantly more efficient. Thanks to cooling of the spray arc process, pulsed MIG is able to extend the welding range, and the lower heat input does not cause problems with burn-through of thin materials. MIG PULSE is one of the best welding processes for a wide range of applications and metal types.

MIG/MAG DOUBLE PULSE - When welding using the MIG/MAG method with double pulse, a high level of weld face appearance (scale effect) is achieved. Additionally, the use of automatic wire feeding improves welding efficiency. The MIG/MAG double pulse method allows adjustment of current pulsation (pulse balance) and wire feed speed. This enables improvement of weld appearance. During MIG/MAG double pulse welding, current pulses occur in two ranges. The sequential system of our devices automatically combines two pulse levels: hot and cold.

FCAW - Thanks to the polarity change function, it is possible to weld without shielding gas using self-shielded FCAW wire. This method uses self-shielded flux-cored welding wire (in all positions) for welding steels of normal and increased strength not exceeding 510 MPa. The self-shielded wire can be used in single- and multi-layer welding processes, using power sources with both flat and drooping characteristics. The wire is intended for general production work, also in field conditions, and for welding structures where impact strength requirements are not specified. Welding current DC(-).

TIG DC LIFT - welding with a tungsten electrode in shielding of inert gases. The use of this method enables welding of all types of steel, i.e., carbon, alloy, stainless, acid-resistant, as well as copper alloys, e.g., bronzes or brasses.

MMA - a method in which a coated electrode is used, consisting of a metal core covered with flux coating. The welder feeds the electrode as it melts into the welded object so as to maintain an arc of constant length while simultaneously moving its melting end along the welding line. The device enables welding with all types of electrodes, e.g., basic, cellulose, rutile, or acidic.

MMA VRD - the VRD (Voltage Reduction Device – module reducing the idle (no-load) voltage of the device’s secondary circuit) function available in MMA mode. It increases safety and reduces the risk of electric shock. The function switches the welding power supply off and on when resistance between the electrode tip and the welded element is detected during welding.

ADDITIONAL FUNCTIONS:

• Arc ignition via: 2T - two-stroke, 4T - four-stroke, 2TSD - special two-stroke.
• HOT START - a function facilitating welding start in MMA mode. At the moment of arc ignition, the welding current is temporarily increased to heat the material and electrode at the contact point and to properly shape penetration and weld face in the initial phase of welding.
• ARC FORCE - a function stabilizing the arc by maintaining the welding arc voltage value regardless of its length and facilitating control over the amount of spatter.

DEVICE FEATURES:

• separate external wire feeder
• welding cooler filled with coolant
• possibility of MIG/MAG welding
• synergic settings
• possibility of TIG DC LIFT welding (the welding machine does not include a TIG torch in the set)
• possibility of MMA welding (shielded electrode)
• 7 memory programs
• compact, solid design
• IGBT transistors
• 60% efficiency

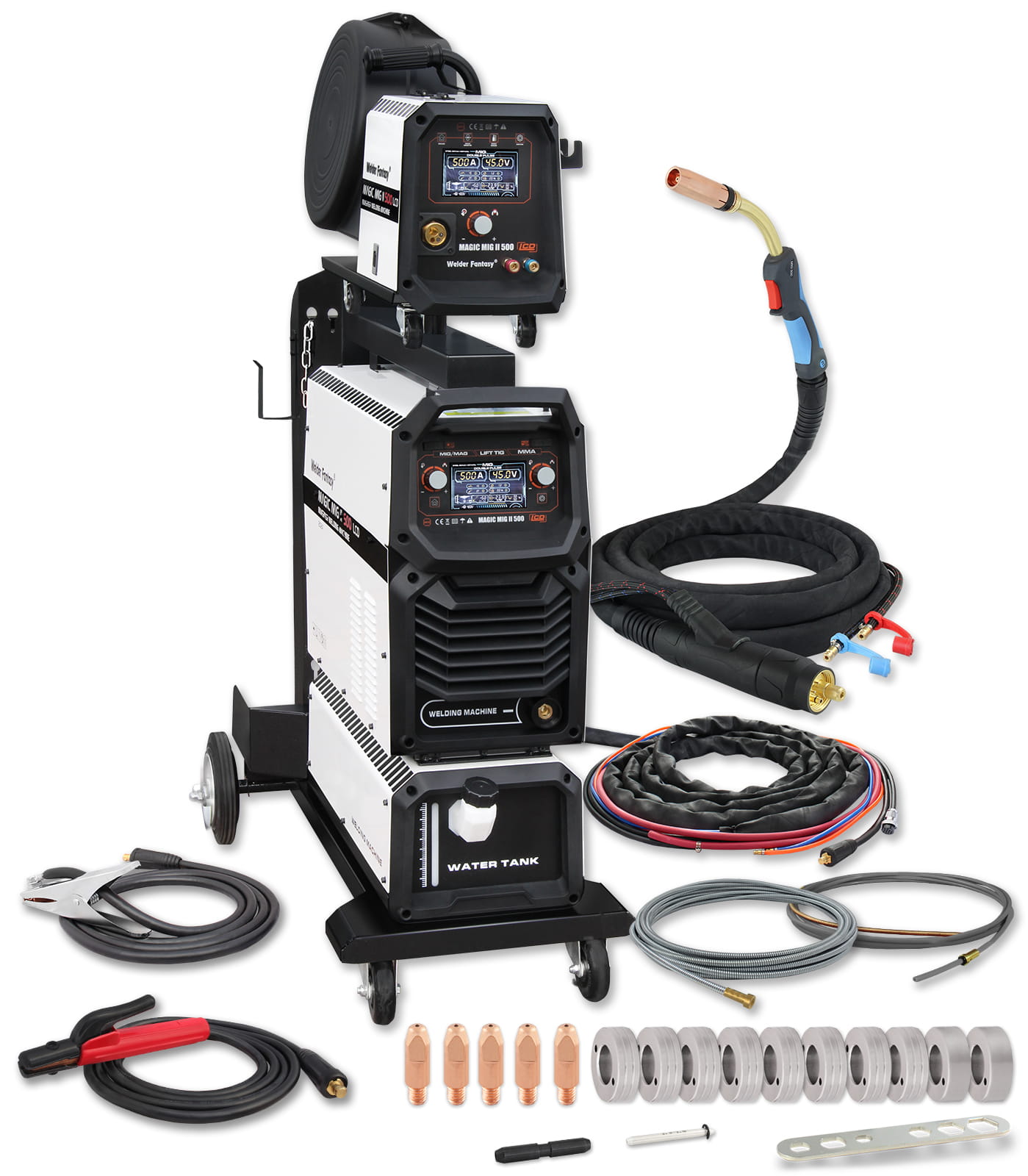

SET EQUIPMENT:

• Welder Fantasy MAGIC MIG II 500 LCD welding machine,
• separate external wire feeder,
• liquid cooler,

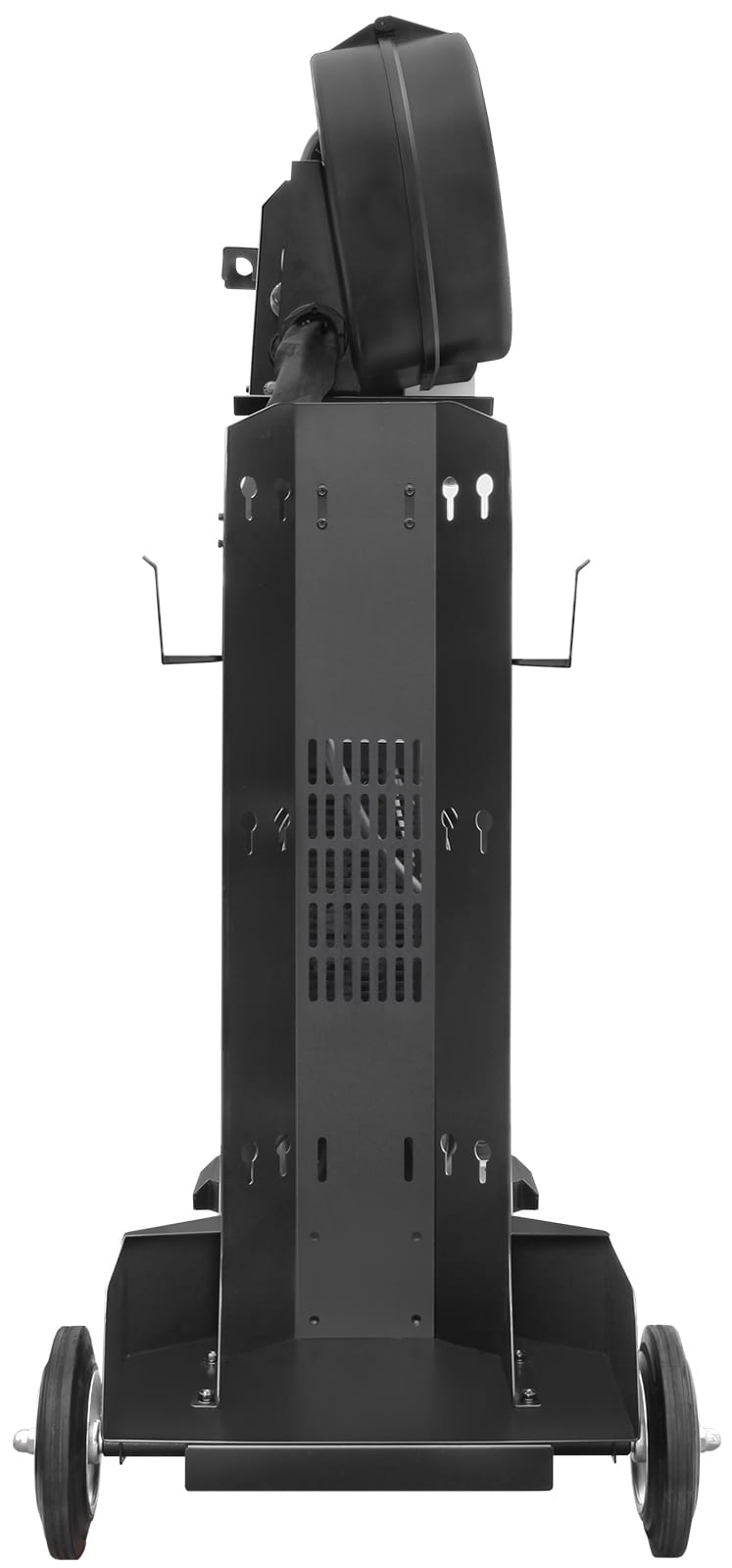

• transport chassis,

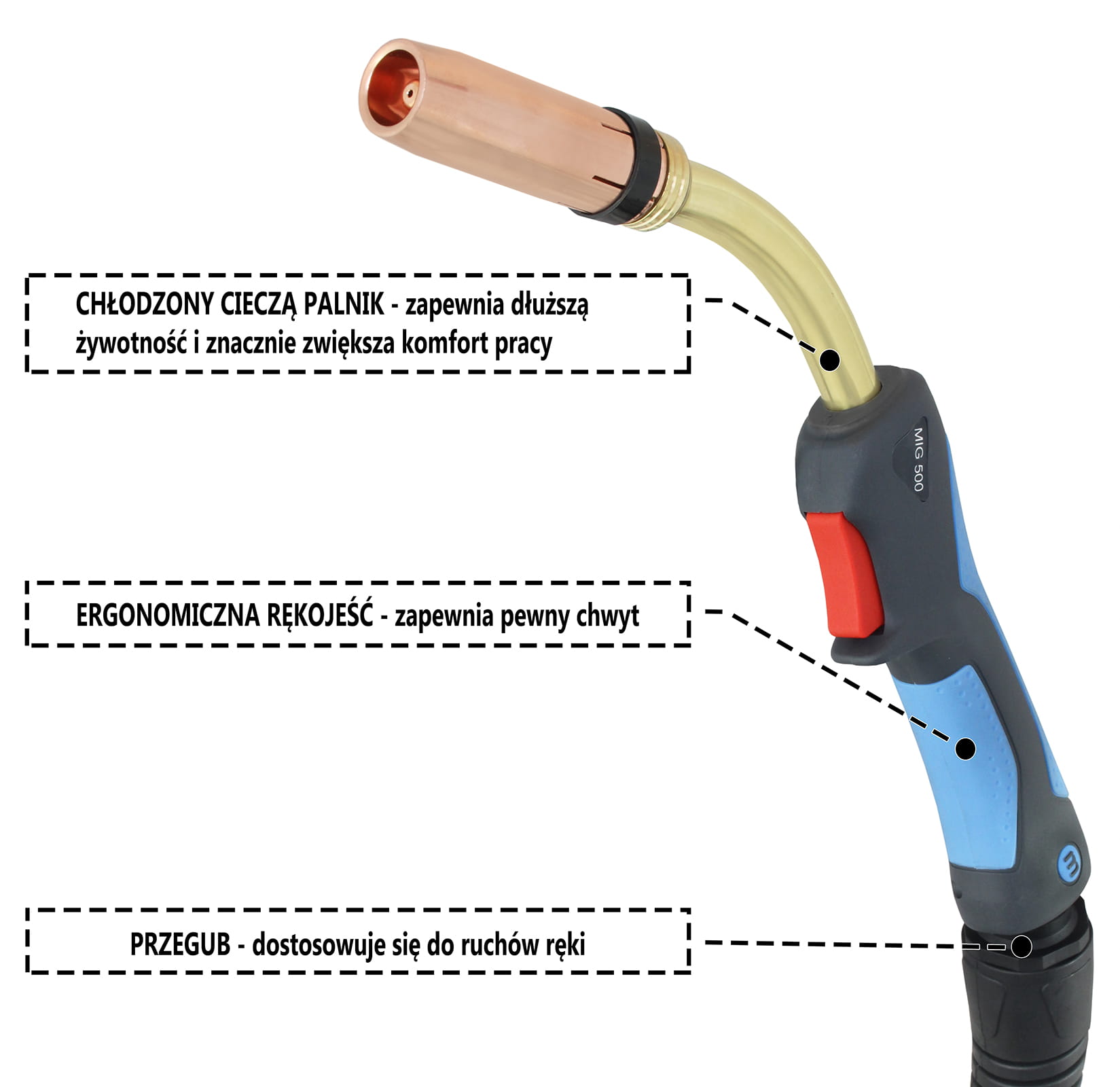

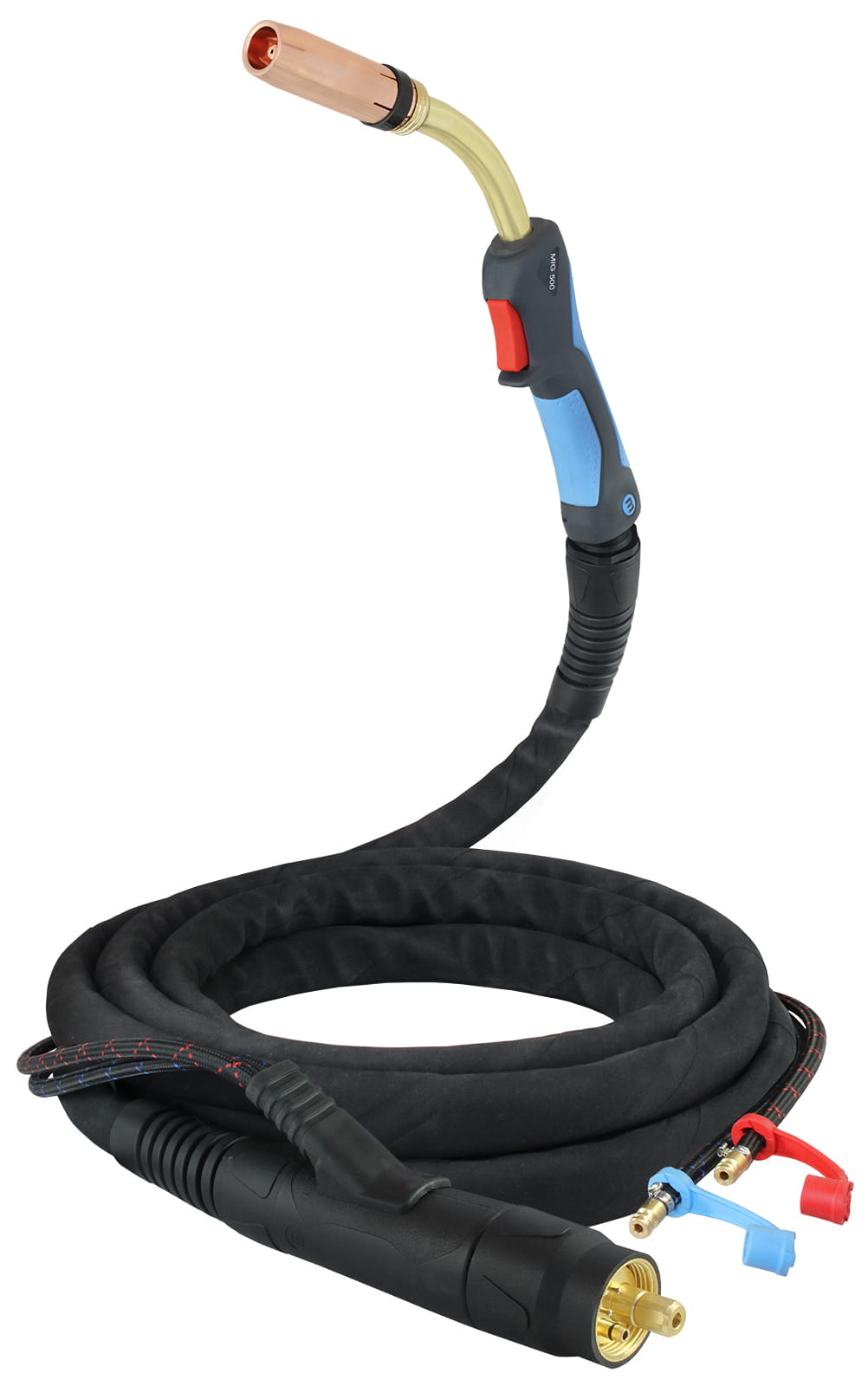

• MIG/MAG MB501 3m EURO welding torch,

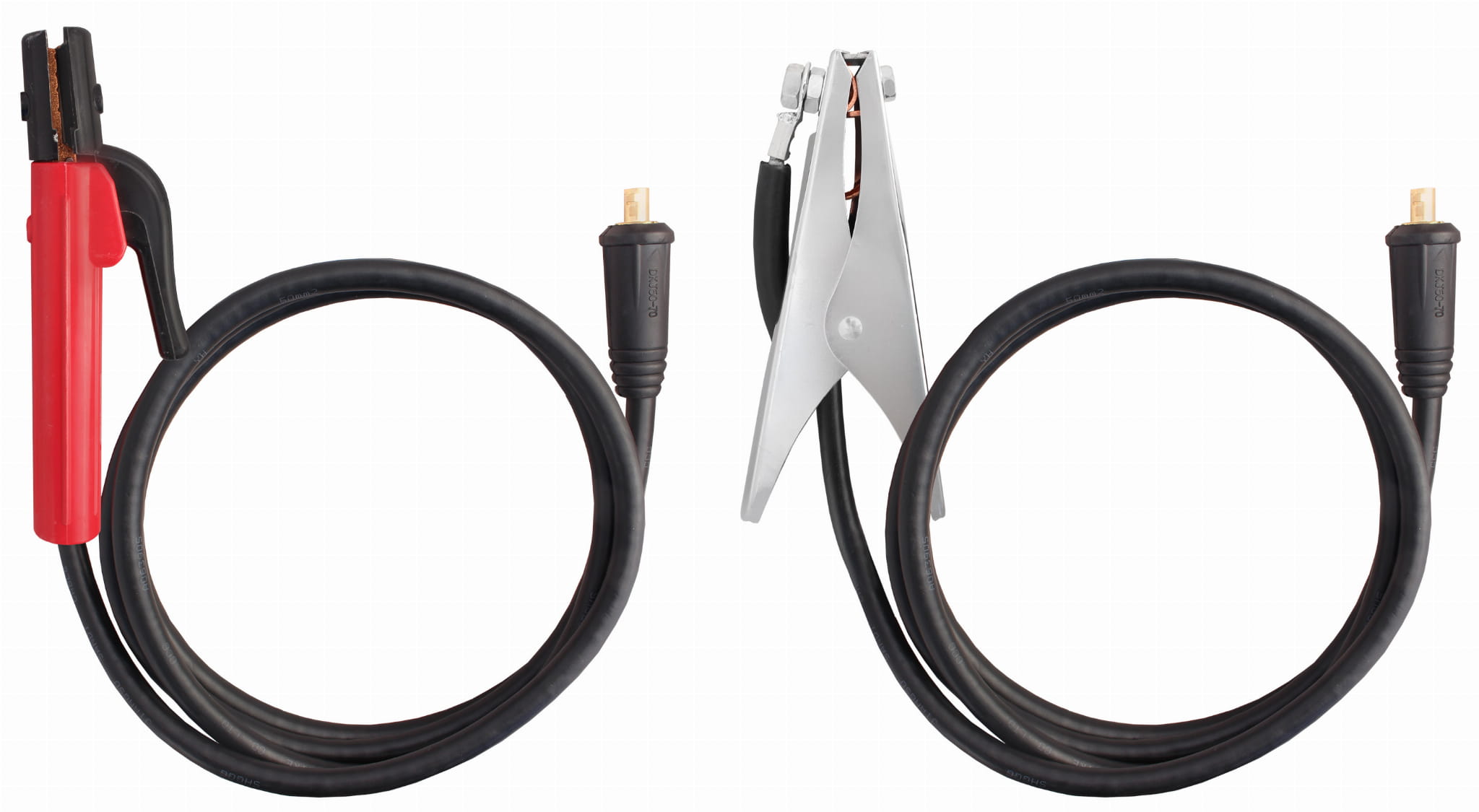

• 3 m ground cable,
• 3 m cable with electrode clamp,

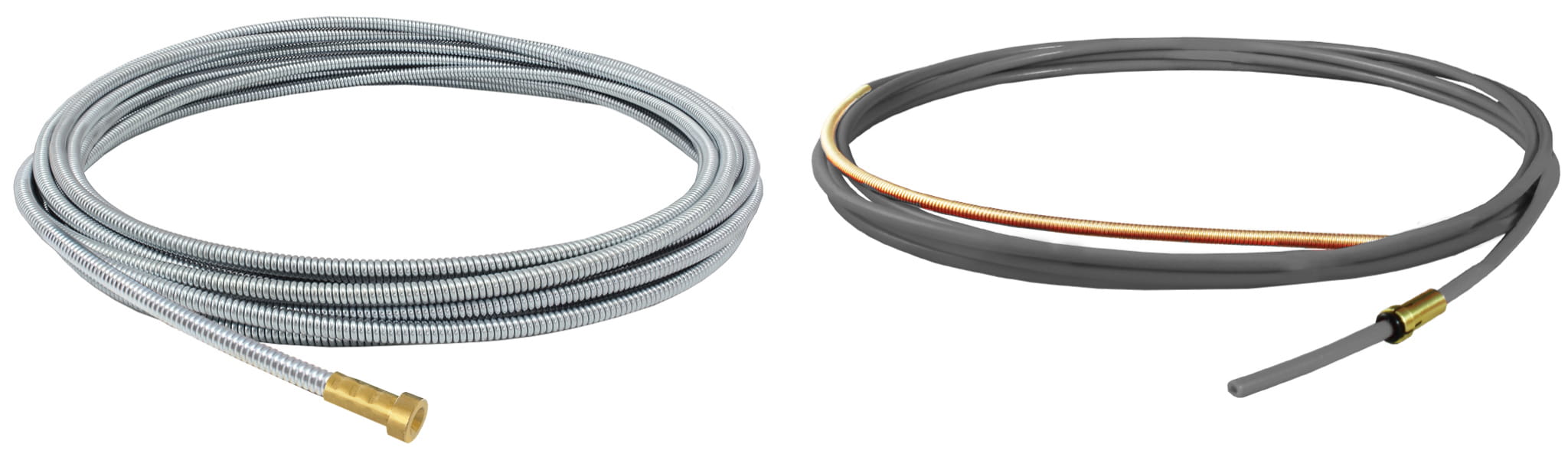

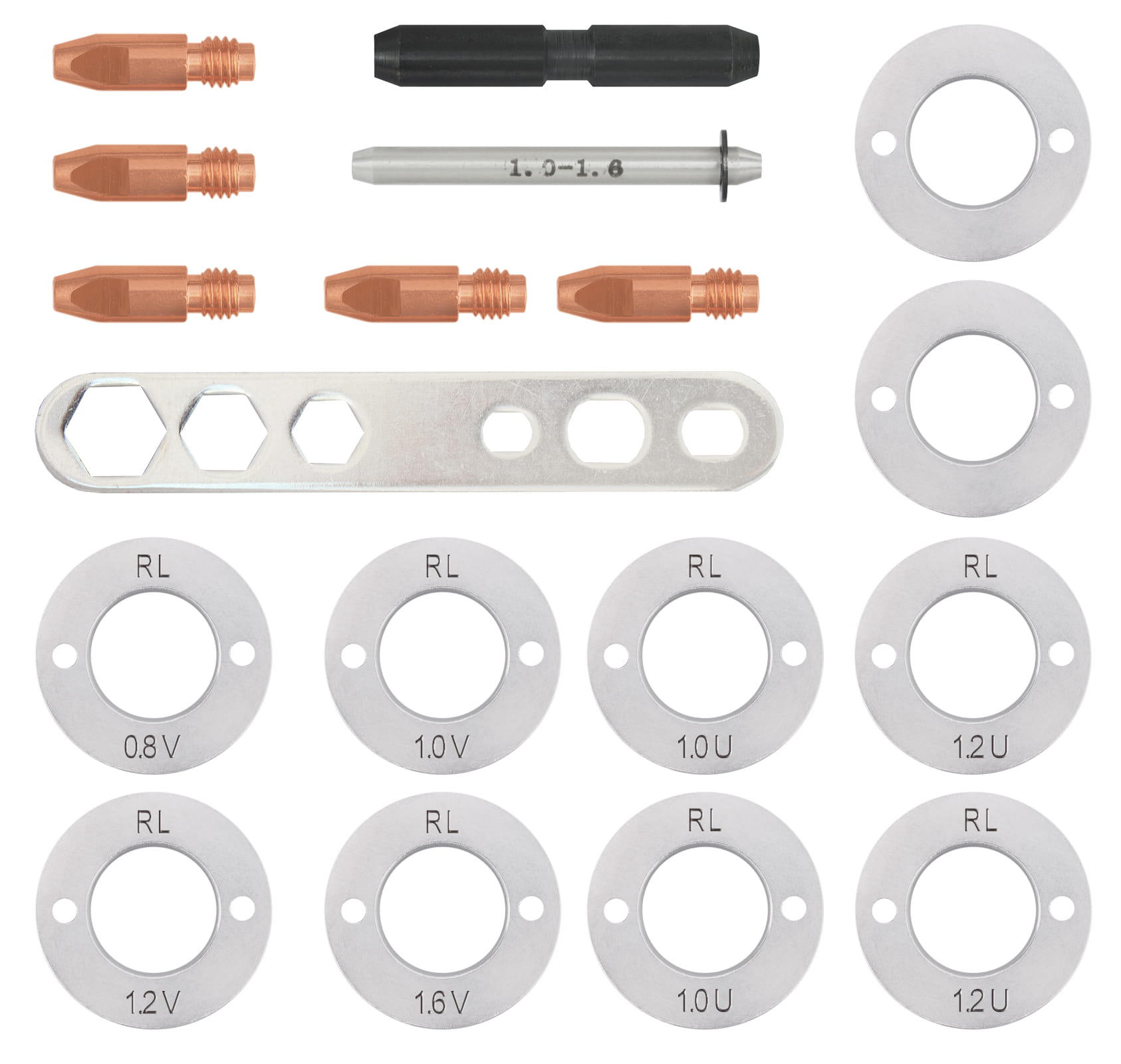

• steel wire feeder liner,
• graphite wire feeder liner,

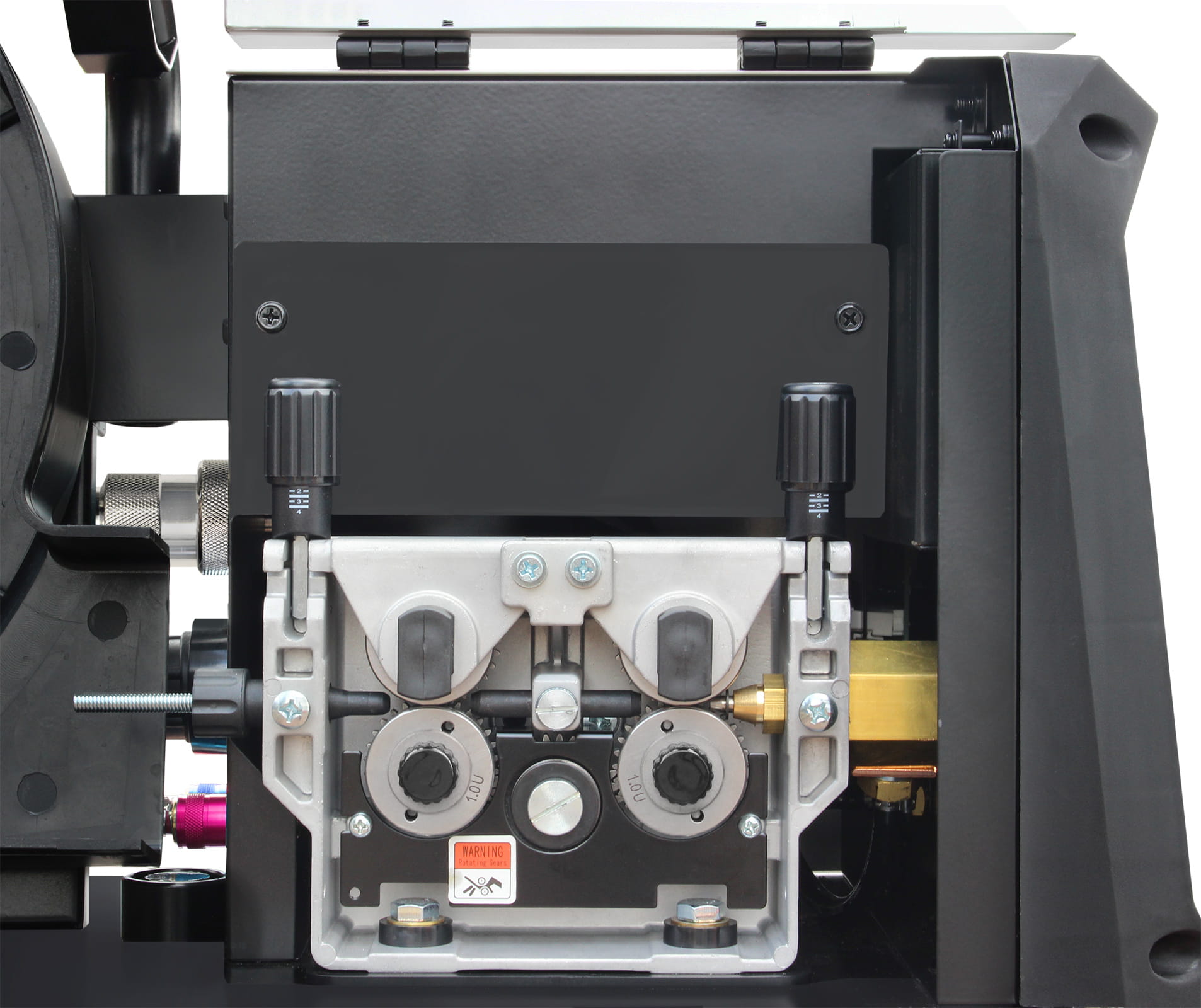

• aluminum wire rollers 1.0 / 1.2 - 4 pieces installed in the feeder,
• steel wire rollers 0.8 / 1.0 - 2 pieces,
• steel wire rollers 1.2 / 1.6 - 2 pieces,
• smooth rollers - 2 pieces,

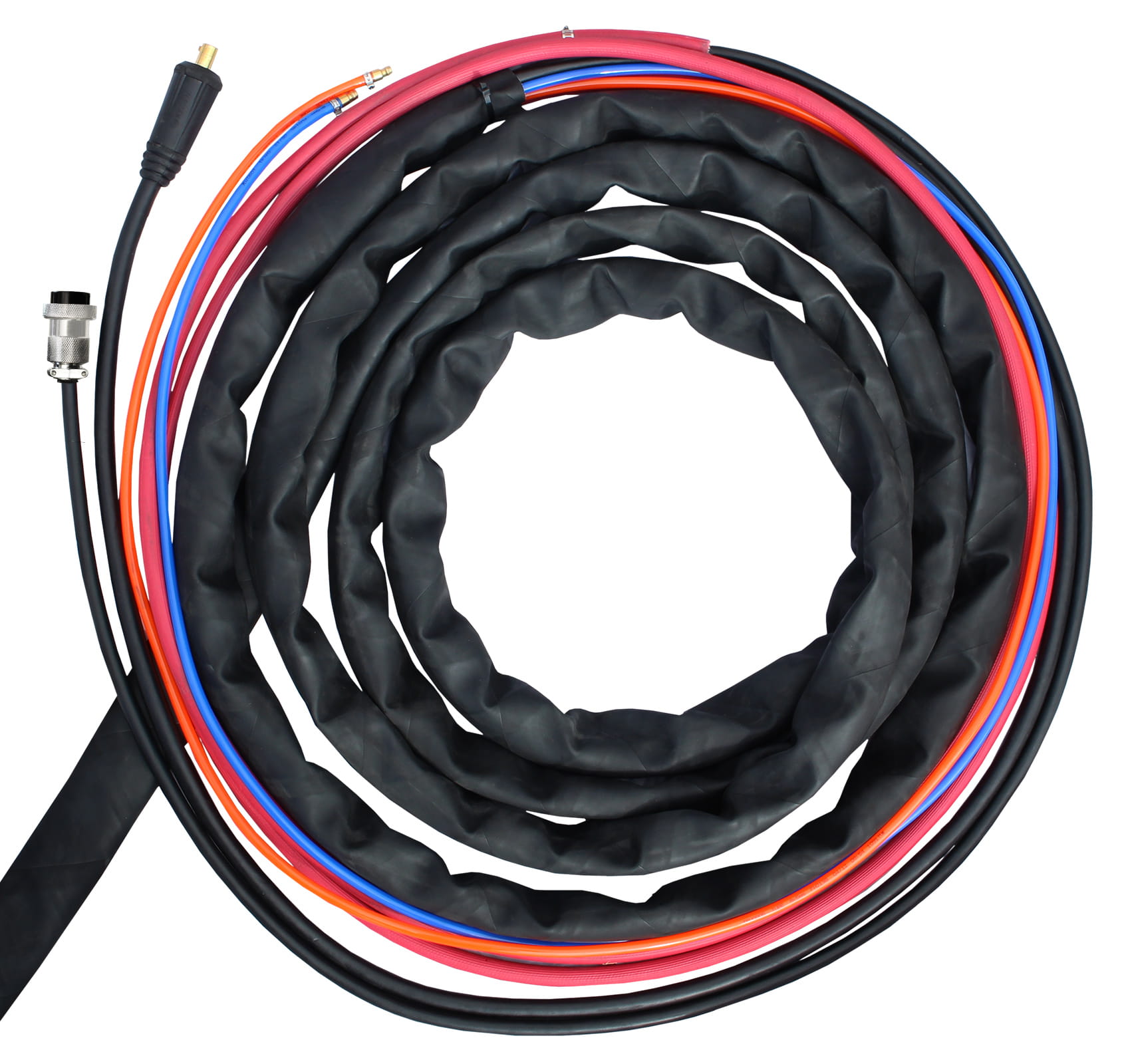

• cables between power source and feeder 10m,
• manual in Polish and warranty card.

TECHNICAL DATA:

Files to download:

MAGIC MIG II 500 LCD Instruction Manual
