PLASMA CUTTER HEFTY II 60 WELDER FANTASY
Regular price:
product unavailable
add to wish list
Description
The Welder Fantasy HEFTY II 60 plasma cutter is designed for cutting electrically conductive elements made of carbon and alloy steels, aluminum and its alloys, brass, copper, as well as cast iron.
"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK OF FACHOWIEC - View the Trademark Protection Certificate document
Plasma cutters from the new HEFTY series feature a 60% duty cycle, which allows for comfortable operation in all conditions, including industrial environments. Thanks to the use of the latest IGBT transistors, the device ensures continuous operation and is reliable. This cutter will find applications in automotive workshops, the shipbuilding industry, sheet metal work, locksmithing, and many others.
NOTE! It is possible to adapt HEFTY plasma cutters for CNC machines.
Features of Welder Fantasy HEFTY plasma cutters:
- high 60% duty cycle,
- devices based on IGBT technology
- non-contact arc ignition system with HF pilot arc,
- compact housing and low weight,
- dedicated regulator with air filter,
- manometer for air pressure control,
- smooth cutting current adjustment,
- protection against too low air pressure,
- TEST gas function,

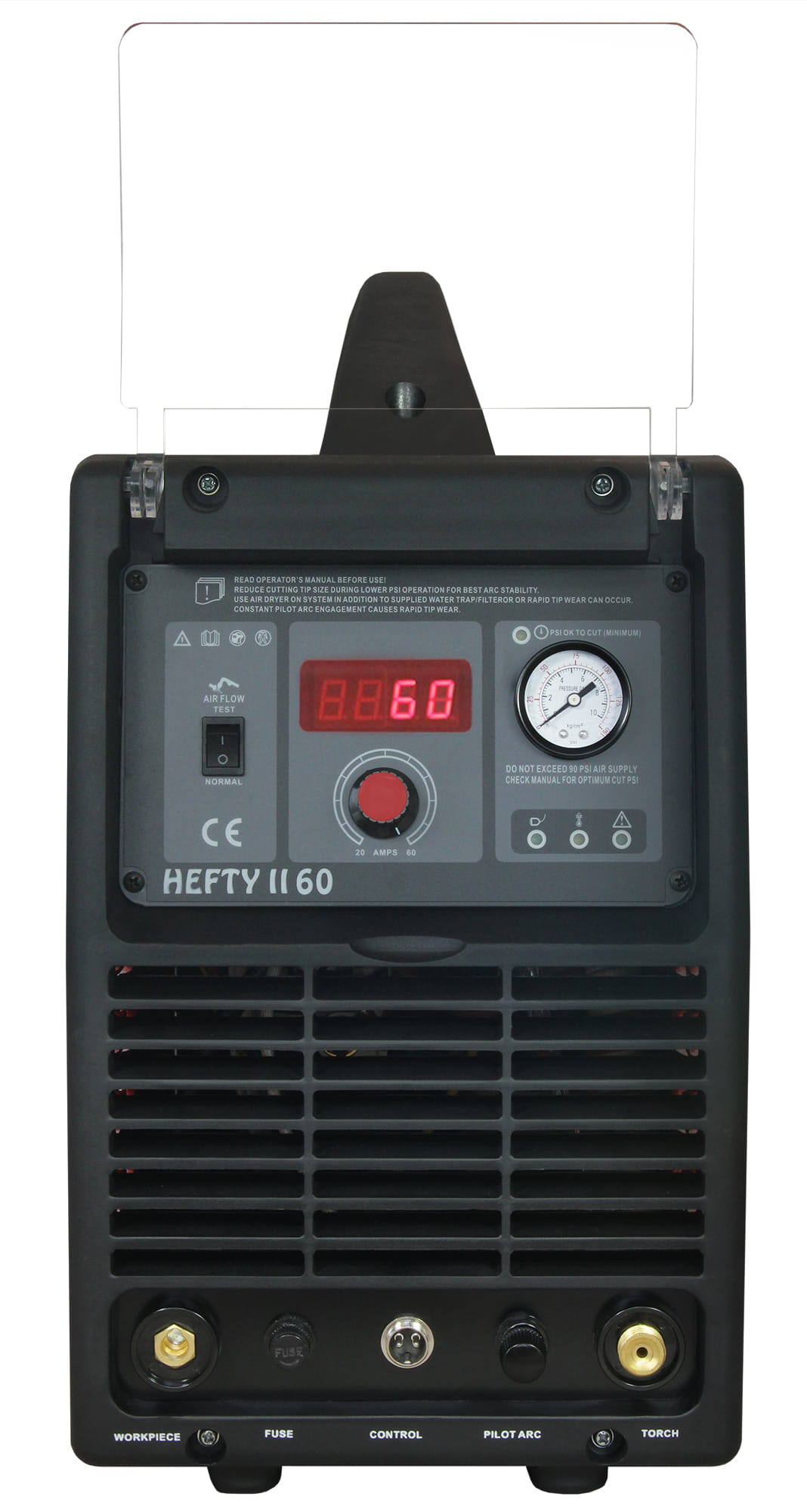

- transparent, lift-up control panel cover,
- digital cutting current display.

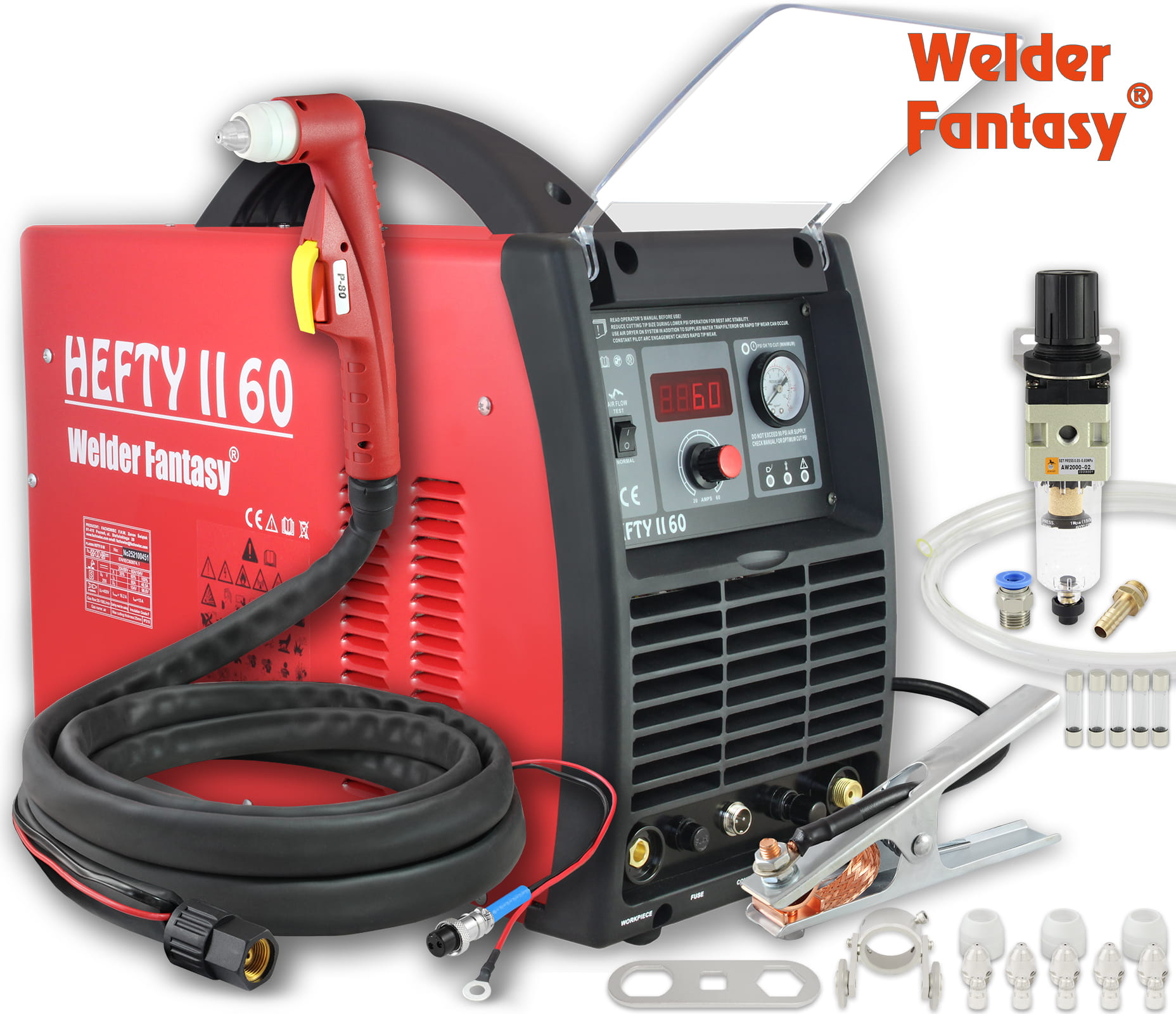

SET INCLUDES:
- Welder Fantasy HEFTY II 60 plasma cutter,

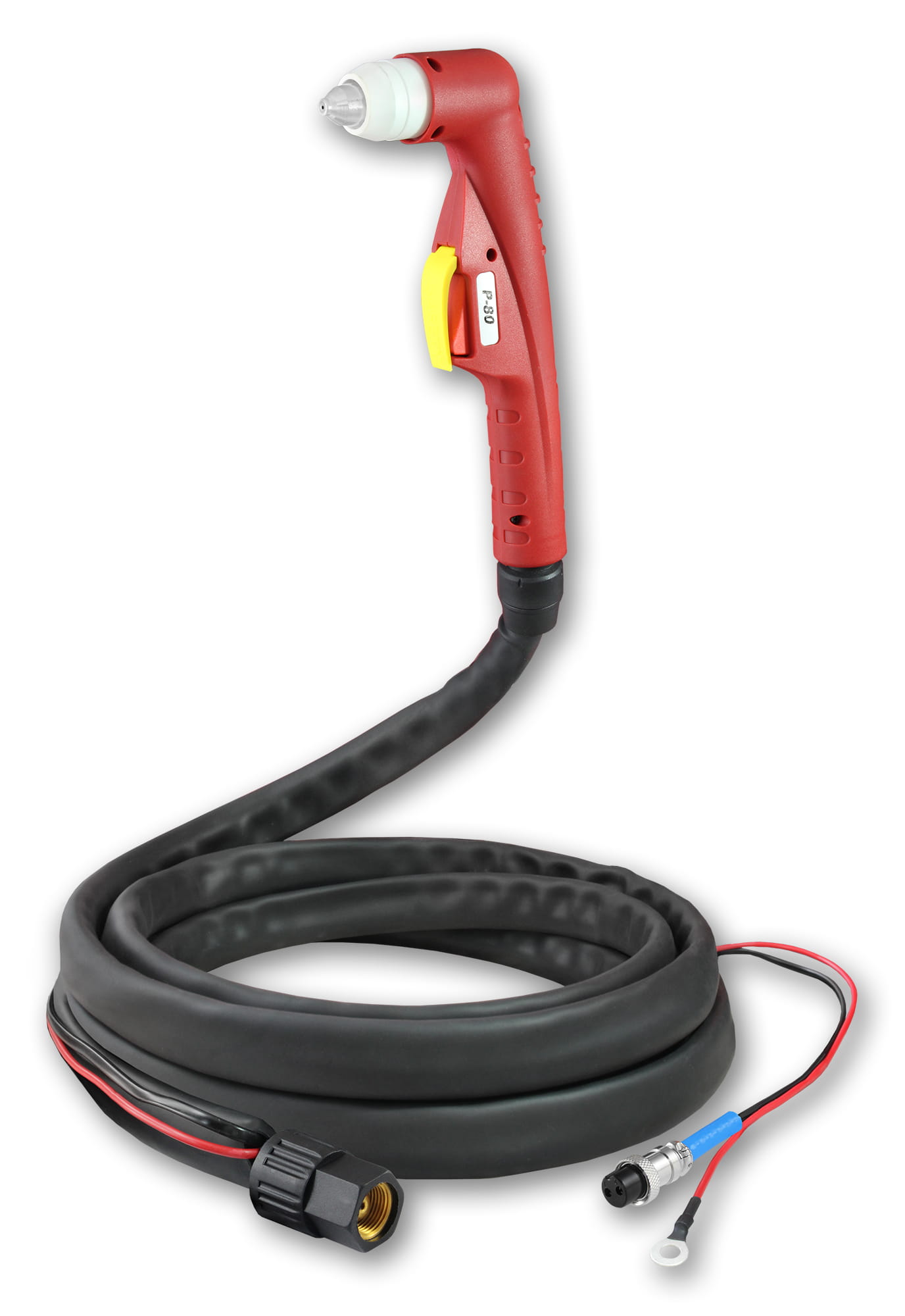

- P80-4m plasma torch,

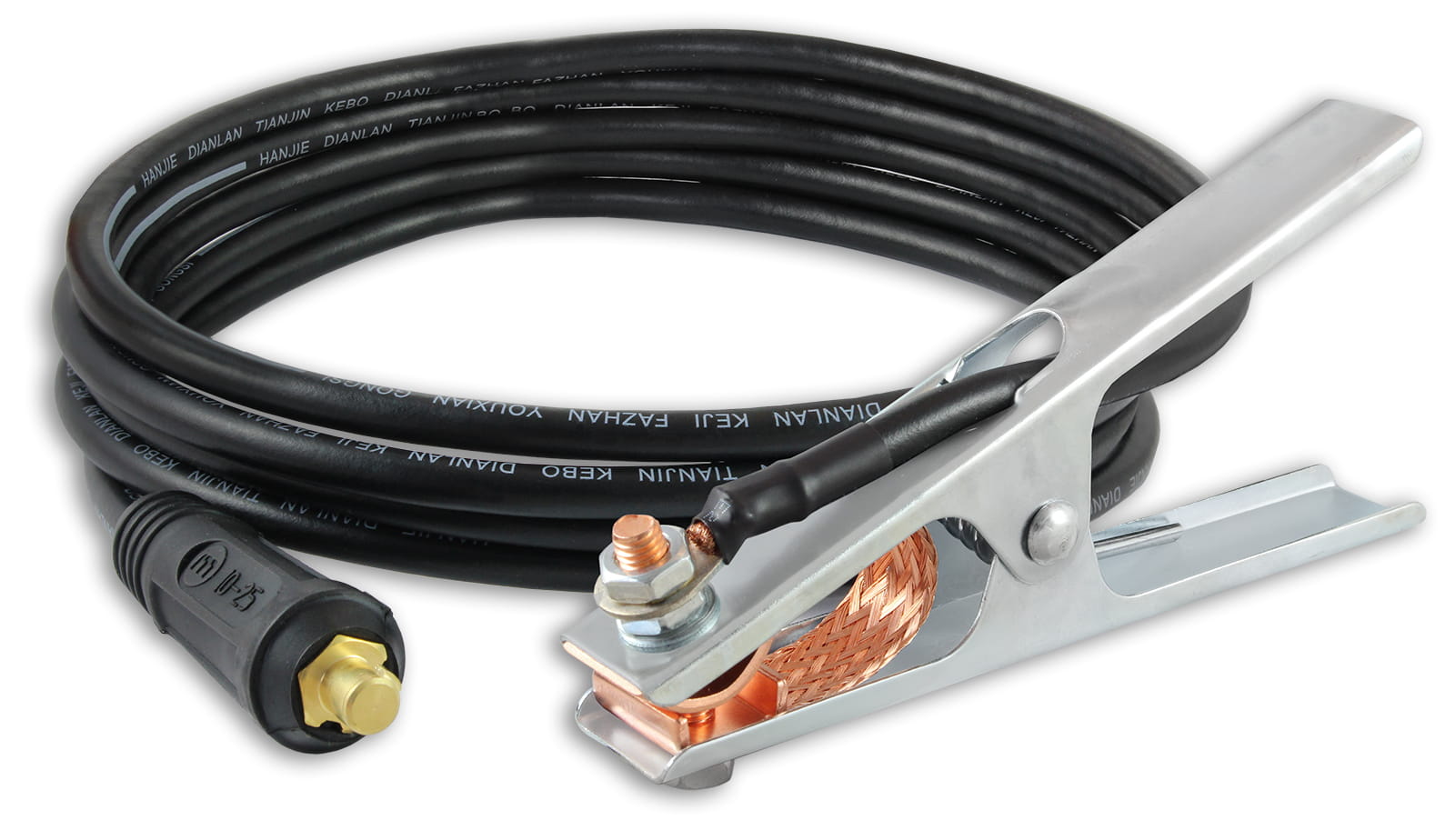

- 3m ground clamp,

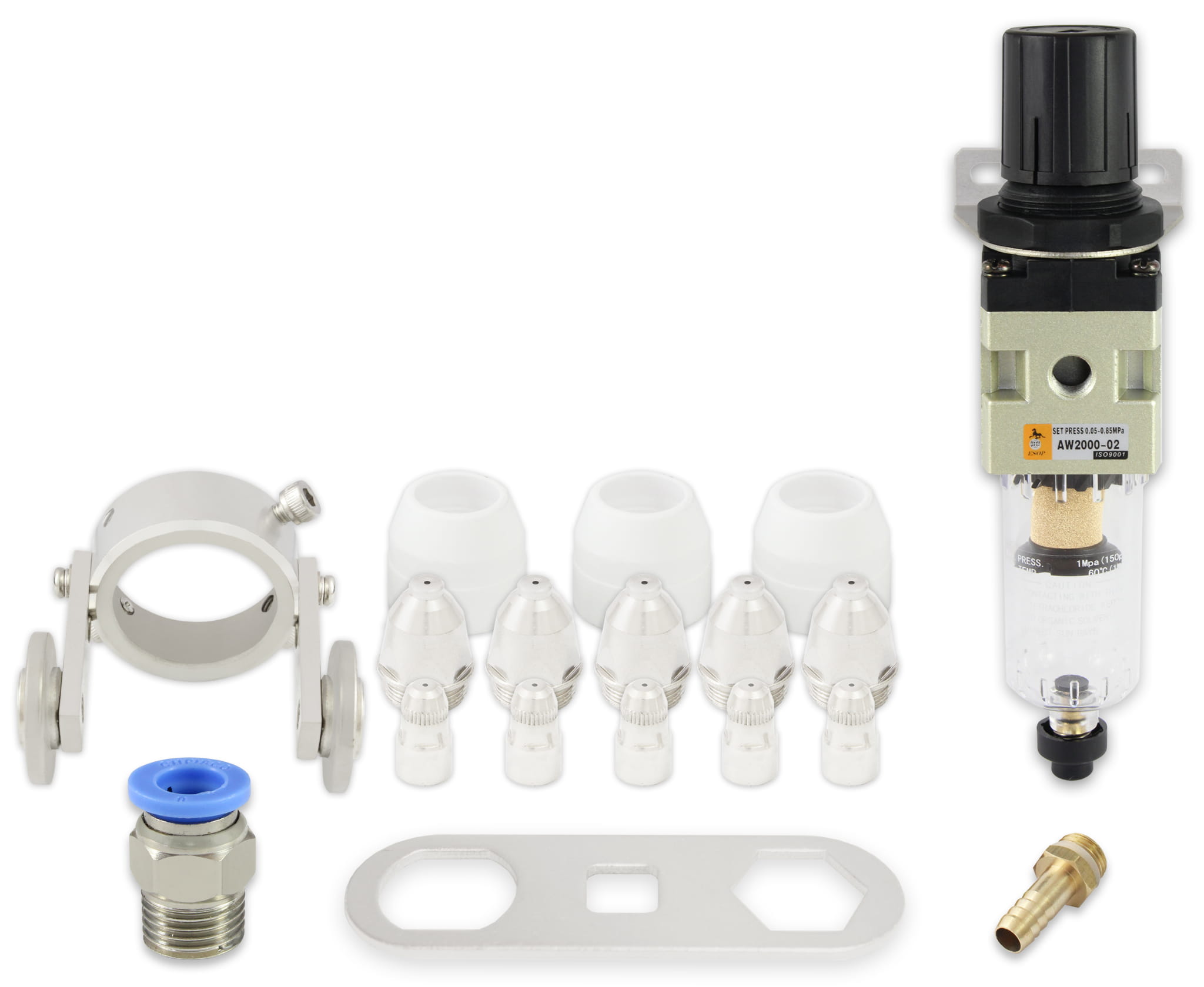

- consumables (nozzles, electrodes, ceramic cups),
- circle cutting trolley,
- air filter-regulator,
- user manual in Polish and warranty card.
View the device presentation:
TECHNICAL DATA:
|
Power supply |
3~400V 50 Hz |
|
Power consumption [kVA] |
8.8 |
|
Minimum time-delay protection [A] |
20 |
|
Weight [kg] |
20 |
|
Dimensions [mm] |
570*230*430 |
|
PLASMA PARAMETERS |
|
|
Cutting current [A] |
20-60 |
|
Duty cycle 60% [A] |
60 |
|
Duty cycle 100% [A] |
46.5 |
|
Arc ignition |
HF / contact |
|
Quality cutting thickness [mm] |
22 |
|
Severance cutting thickness [mm] |
25 |
|
Air consumption [l/min] |
150 |
|
Air pressure [bar] |
4-6 |
