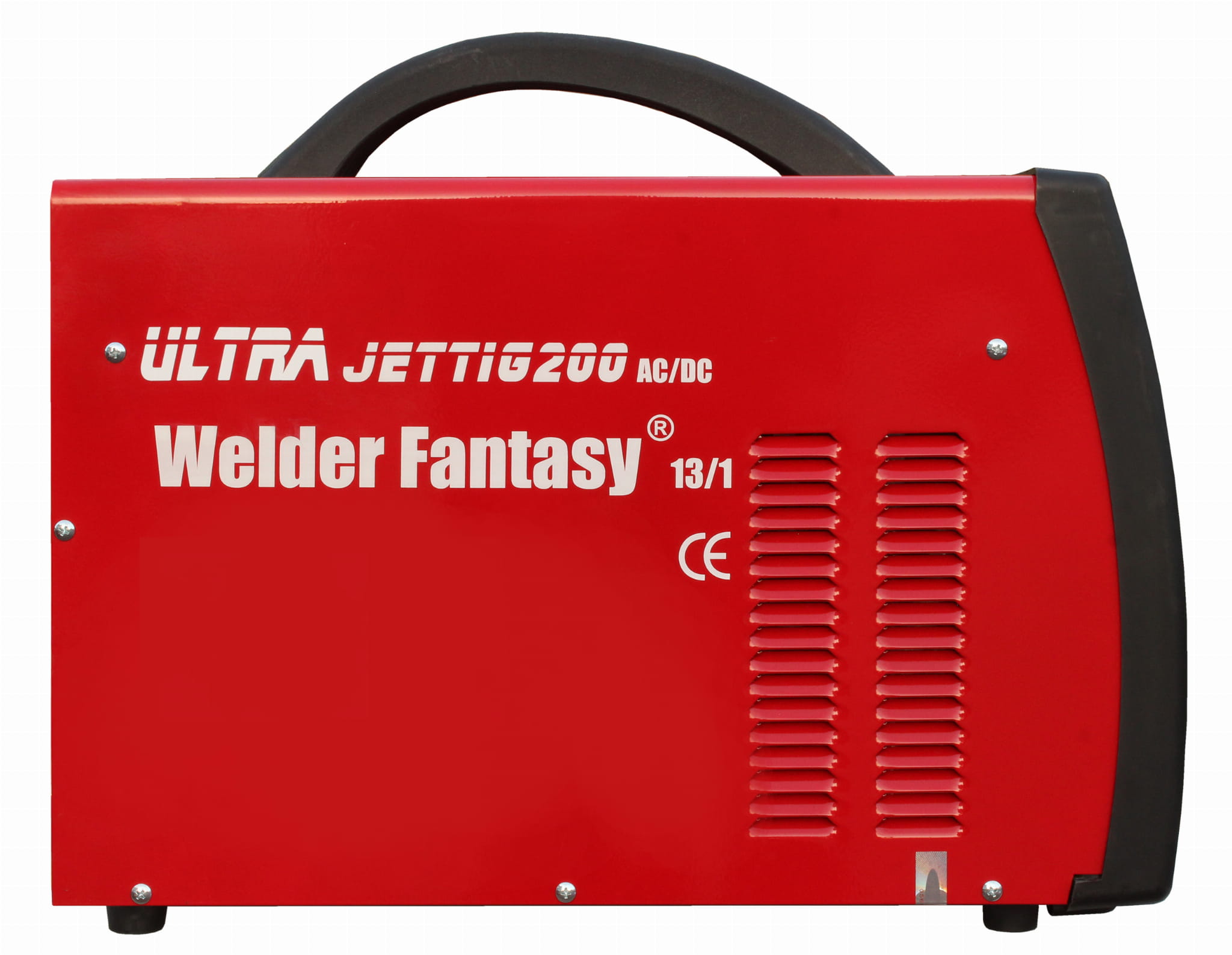

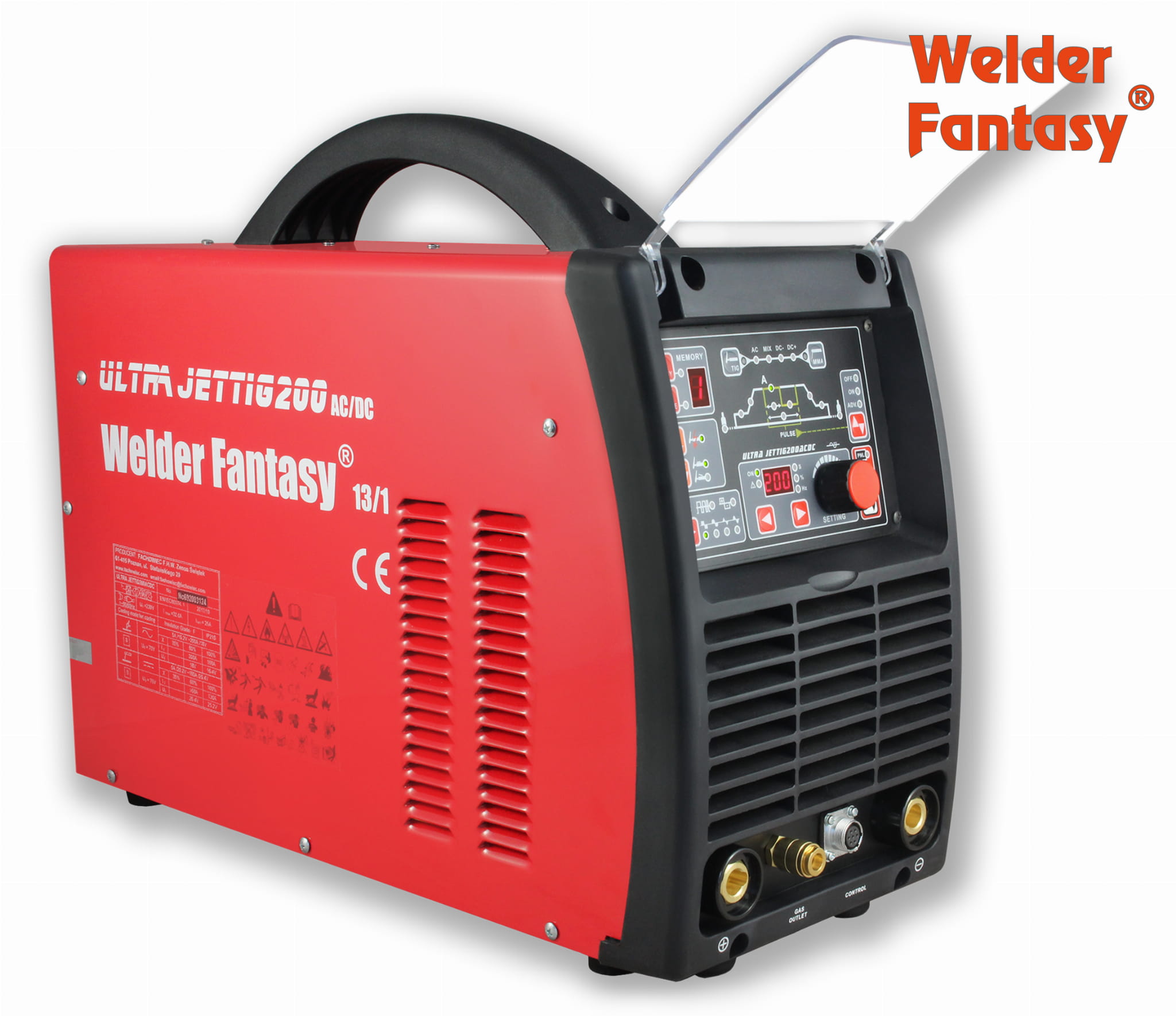

INVERTER WELDING MACHINE ULTRA JET TIG 200 AC/DC WELDER FANTASY

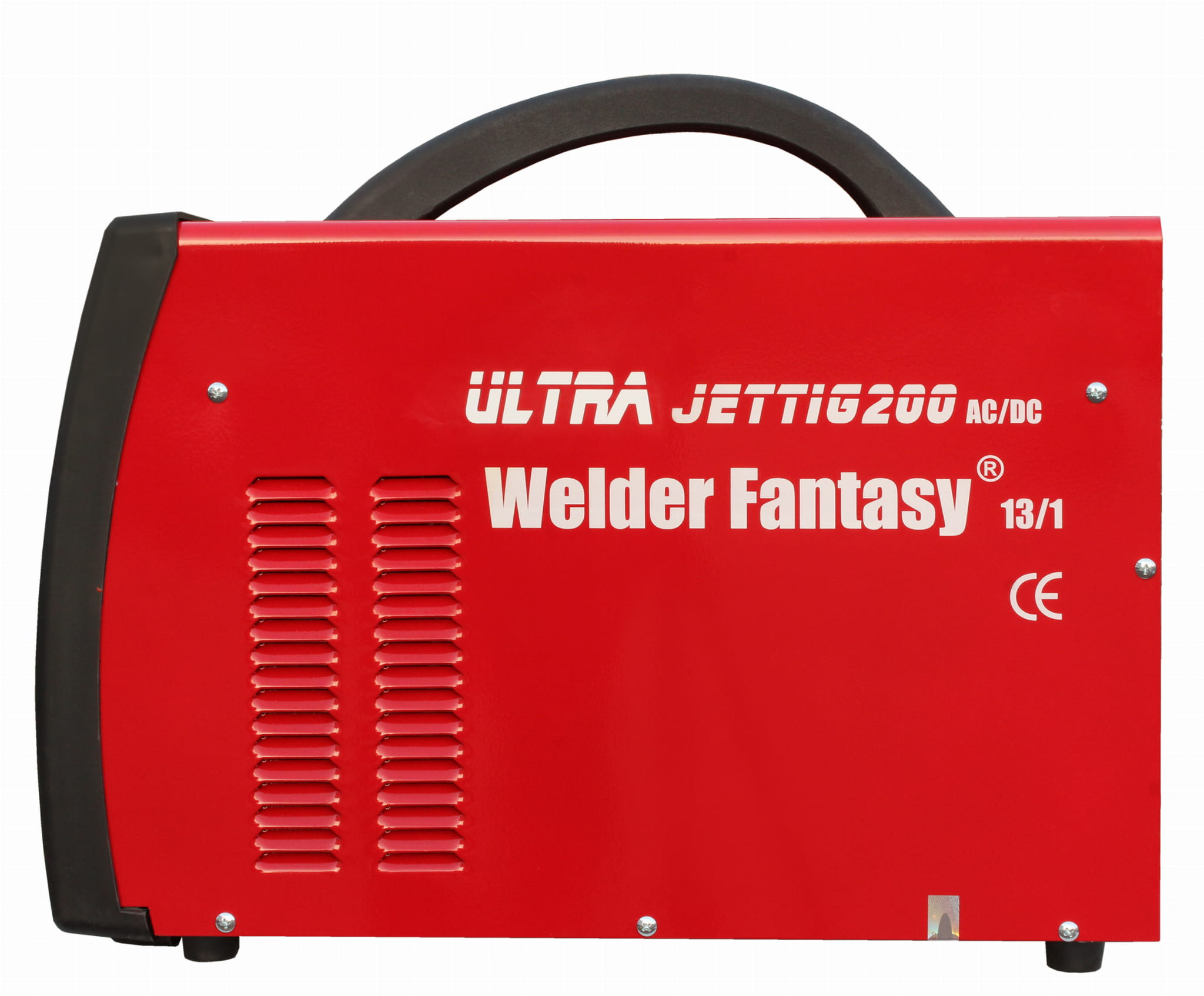

The industrial Welder Fantasy ULTRA JET TIG AC/DC 200 IGBT welding machine is a microprocessor-controlled welding power source based on IGBT technology, designed for welding carbon steels, stainless steels, acid-resistant steels, copper, brass, magnesium, titanium, and all aluminum alloys.

"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK OF THE FACHOWIEC COMPANY - View the Protection Certificate Document

This top-class device sets new standards among AC/DC welding machines, and the user-friendly control panel ensures the selection of all necessary operating parameters.

The ULTRA JET TIG AC/DC 200 welder allows operation in the following modes:

• TIG DC lift-arc - In the TIG method (Tungsten Inert Gas), an electric arc is struck in an inert gas shield (argon), between the welded element and a non-consumable electrode made of pure tungsten or tungsten with additives. In TIG lift-arc mode, the arc is initiated when the electrode touches the welded element. In TIG DC mode the current is constant.

• TIG DC HF - In order to completely eliminate the possibility of weld contamination with tungsten, it is recommended that the electrode does not touch the welded element; for this purpose non-contact arc ignition is used with the help of high-frequency discharges generated by the ionizer built into the device.

• TIG DC PULS lift-arc - arc ignition occurs through contact of the electrode with the welded material; the pulse function allows welding thin elements through periodic changes in current intensity.

• TIG DC PULS HF - non-contact HF ignition using an ionizer in TIG DC PULS mode.

• TIG AC lift-arc - a function enabling aluminum welding through the use of alternating current, which performs a cathodic cleaning function when welding aluminum. Thanks to the ability to set the AC BALANCE parameter, i.e. the alternating current balance, it is possible to regulate the ratio of the duration of its phases relative to each other.

• TIG AC HF - an analogous function enabling aluminum welding using alternating current; ignition occurs non-contact through high-frequency current generated by the ionizer.

• TIG AC PULS lift-arc - welding in this mode is a combination of alternating current with pulse, enabling welding of very thin aluminum elements. Arc ignition occurs through contact of the electrode with the welded material.

• TIG AC PULS HF - a function enabling welding of thin aluminum elements. Non-contact ignition thanks to the use of an ionizer.

• TIG MIX(AC+DC) - the TIG MIX(AC+DC) function allows welding with mixed AC + DC current. In a single cycle there is a transition between alternating current AC and direct current with negative polarity DC(-). This cycle repeats throughout the welding process. Mixed current welding is particularly useful when joining elements of different thicknesses. Noise emission is also reduced compared to welding with AC current.

• MMA DC+ - In the MMA method, a coated electrode is used, consisting of a metal core covered with flux coating. An electric arc is generated between the end of the electrode and the welded material. Arc ignition occurs by touching the electrode tip to the welded material. MMA DC+ means welding with positive polarity – more heat is released in the material and less in the electrode.

• MMA DC- - the difference compared to MMA DC+ is that the polarity in MMA DC- mode is negative, therefore the heat distribution is reversed – more heat is released on the electrode and less in the welded material.

• MMA VRD DC+ - the VRD (Voltage Reduction Device – module reducing the idle voltage of the device secondary circuit) function available in MMA DC+ mode. It increases safety and reduces the risk of electric shock. The function switches the welding power supply off and on when resistance between the electrode tip and the welded element is detected during welding.

• MMA VRD DC- - the VRD (Voltage Reduction Device) function available in MMA DC- mode operates analogously to MMA VRD DC+, the difference being the negative polarity.

For all TIG methods the following welding modes can be used:

• arc ignition via LIFT-ARC system (2T),
• arc ignition via LIFT-ARC system (4T),
• non-contact HF arc ignition (2T),
• non-contact HF arc ignition (4T),
• arc ignition using a remote control pedal.

DEVICE FEATURES:

• solid, compact construction,
• small dimensions and low weight,
• IGBT transistors,
• 60% duty cycle,

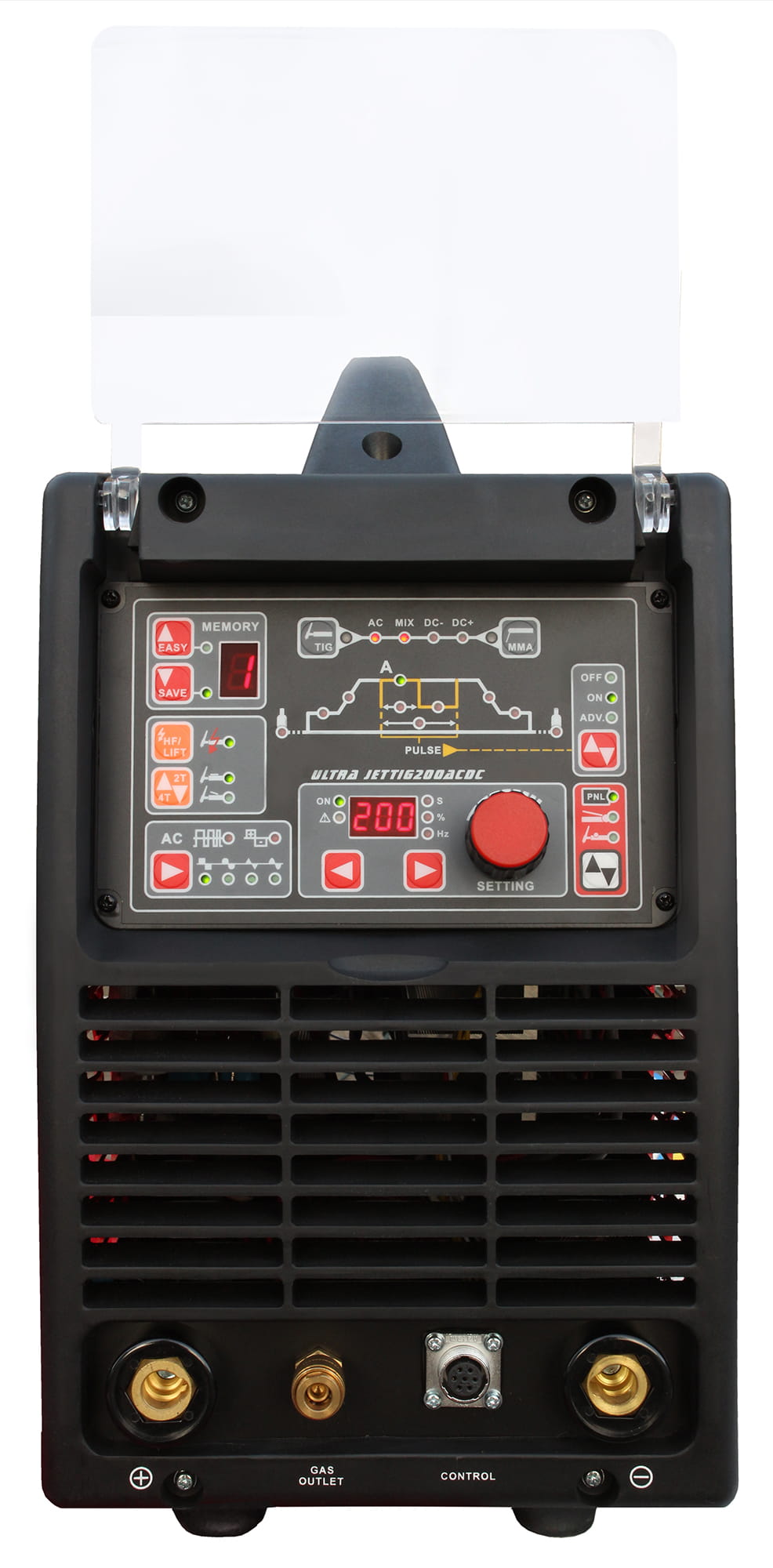

• easy-to-use control panel,
• LCD display of welding parameters,
• LCD display of individual program,
• possibility to save a full 9 programs,
• very wide selection of welding functions:
  • HF - the device is equipped with an ionizer that allows non-contact arc ignition.
  • PRE and POST GAS - gas flow before and after welding.
  • UP and DOWN SLOPE - rise and fall of welding current.
  • PULS - pulsed current function mainly used when welding thin elements (even with a thickness of 0.1 mm), metals with low melting temperatures such as lead, or welding in forced positions. Other advantages of pulsed current welding include a smaller heat-affected zone, greater stability of the welding arc, deeper penetration and improved weld face appearance.
  • TIG MIX – welding with mixed AC DC- current. In a single cycle there is a transition between alternating current AC and direct current with negative polarity DC(-). This cycle repeats throughout the welding process. Mixed current welding is particularly useful when joining elements of different thicknesses. Noise emission is also reduced compared to welding with AC current.
  • Waveform selection: ADVANCED SQUARE - square, SOFT SQUARE - trapezoidal, TRIANGULAR - triangular, SINE - sinusoidal

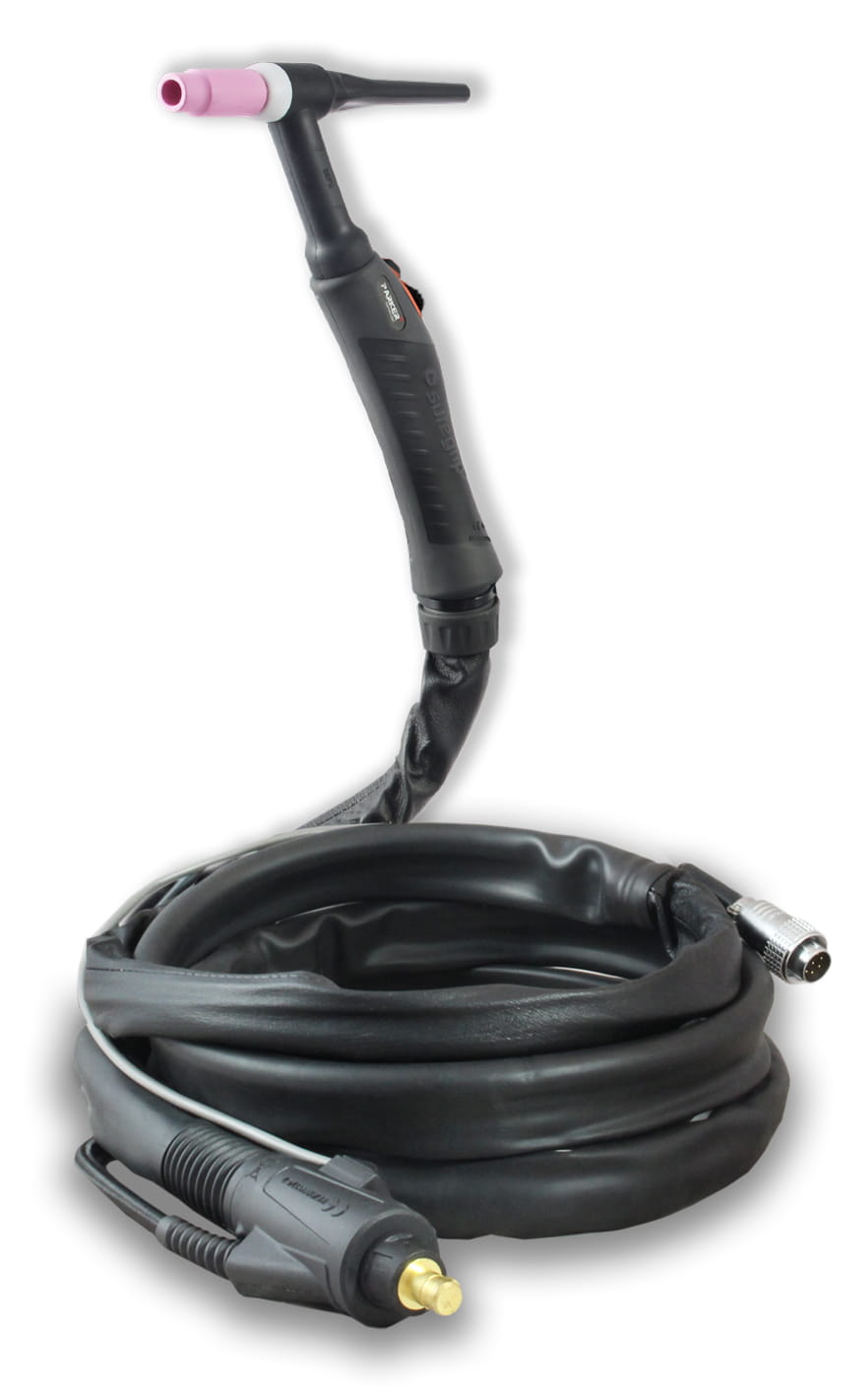

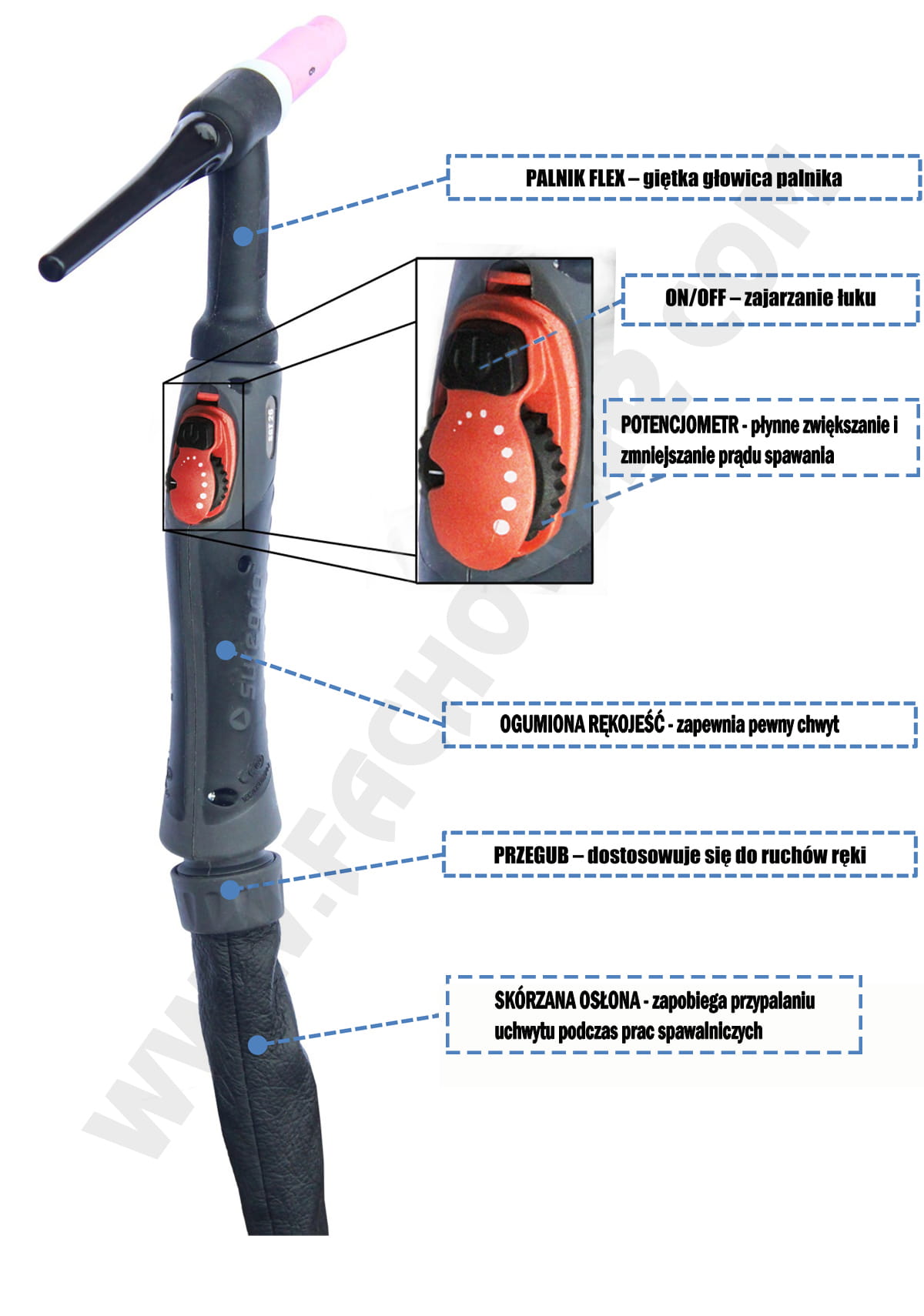

• The set with the welder includes a top-class welding torch: TIG PARKER SUREGRIP SGT26 FLEX 4M with welding current adjustment

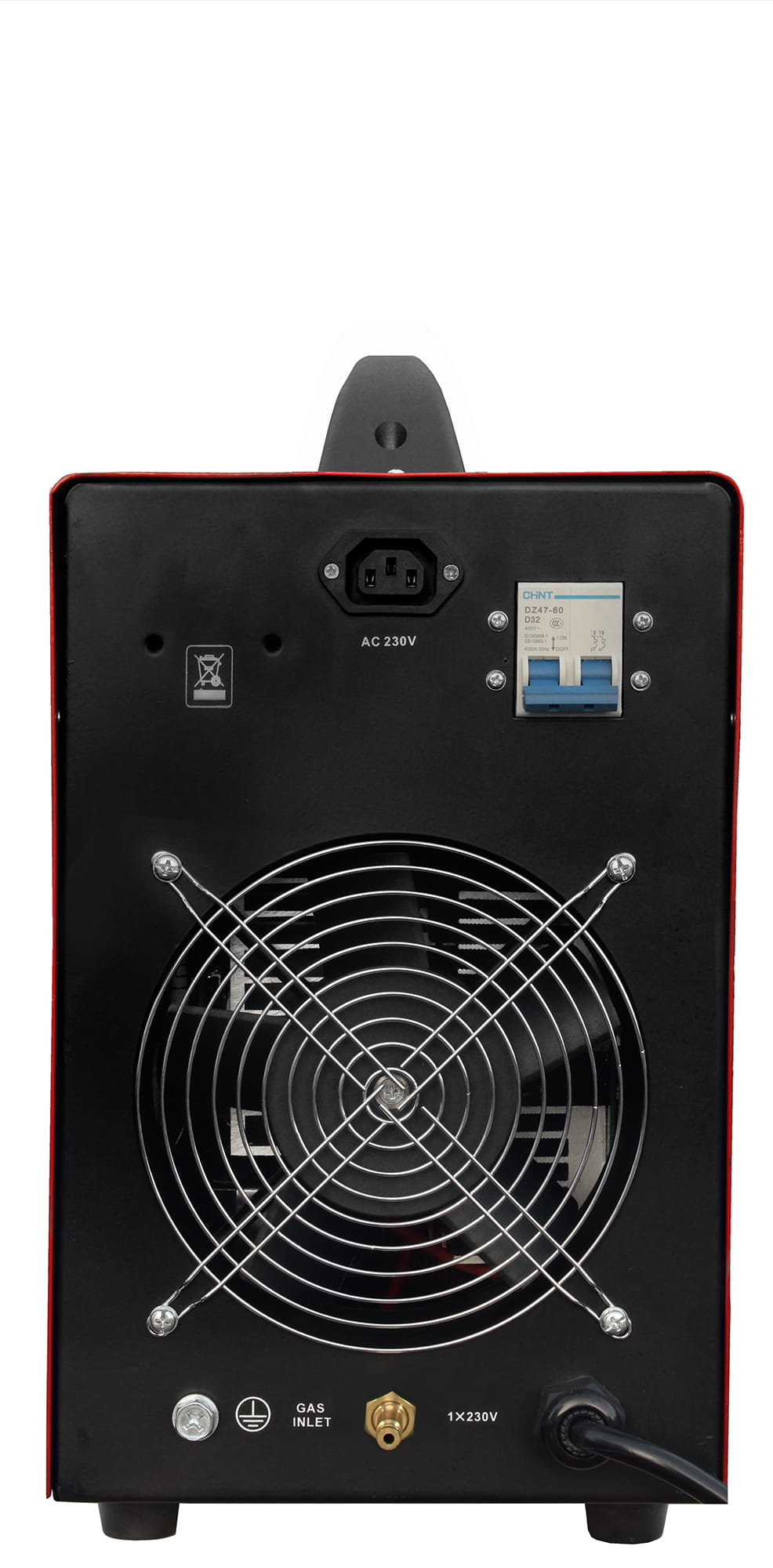

• industrial plug 230V - 32A, NOTE!!! - changing the power plug does not void the warranty.

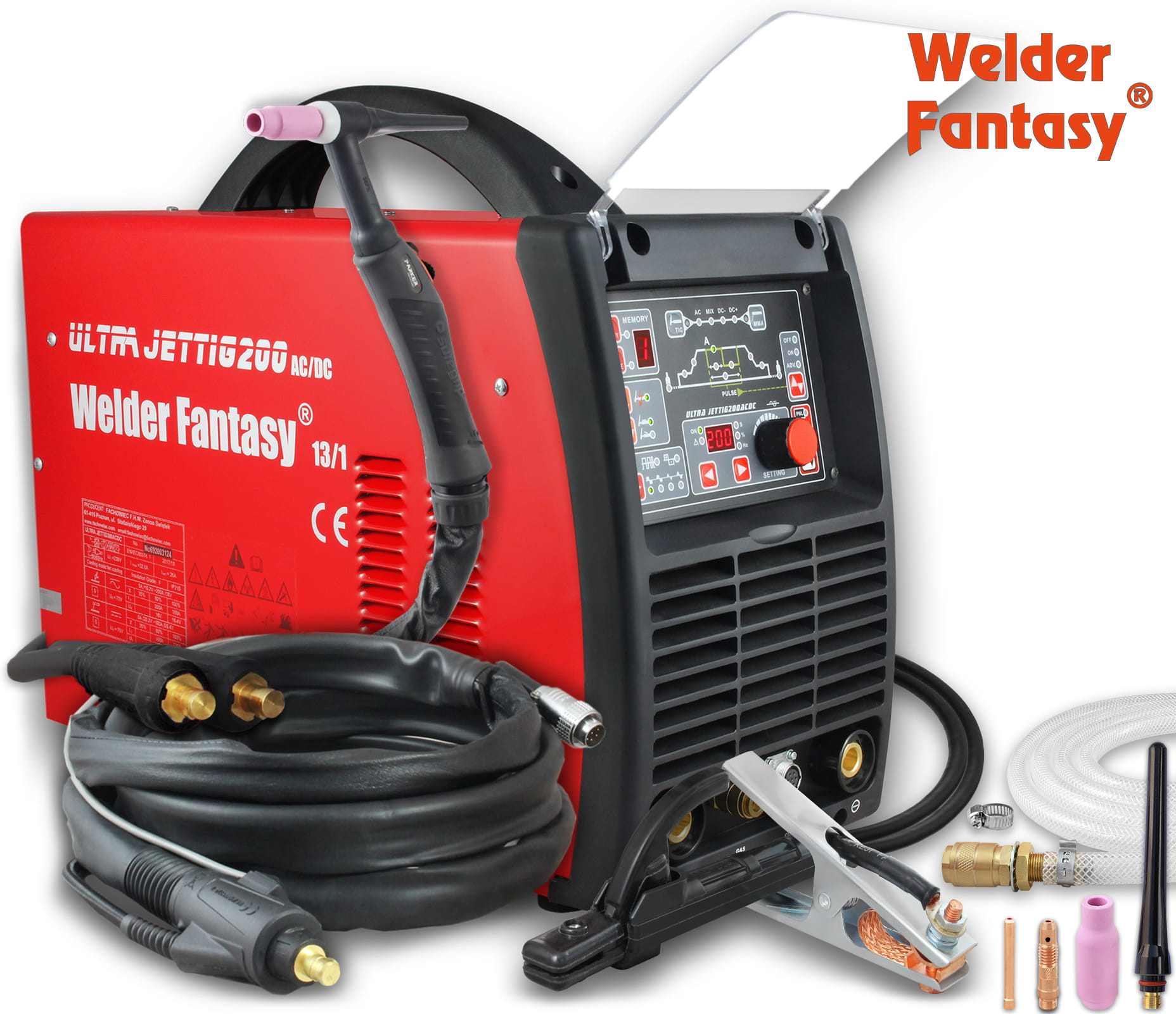

THE COMPLETE SET INCLUDES:
- Welder Fantasy ULTRA JET TIG AC/DC 200 IGBT welder,
- welding torch PARKER SUREGRIP SGT26 FLEX TIG SRT 26-4m with welding current adjustment,

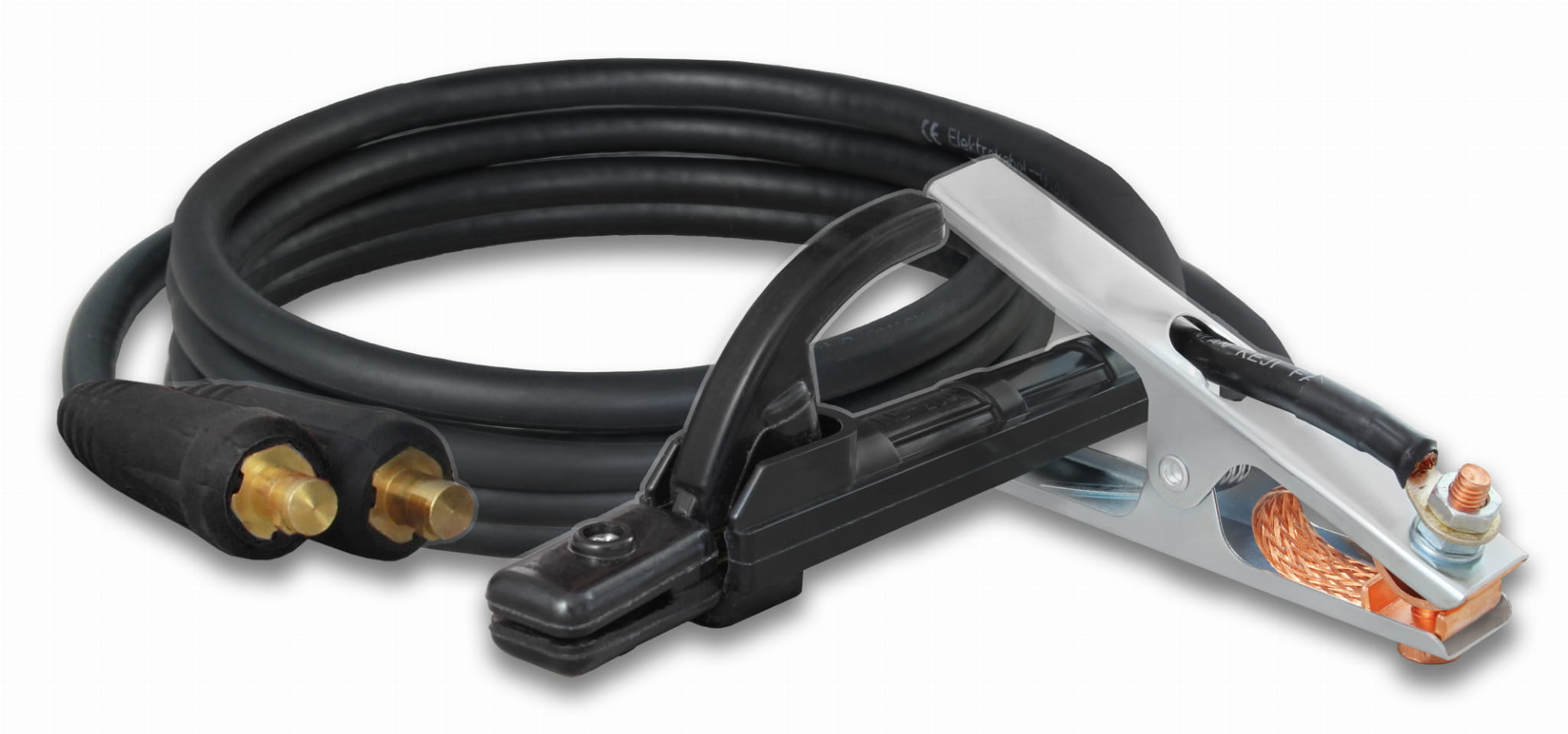

- ground clamp 2.5 m,
- electrode holder 2.5 m,
- additional consumable elements,
- user manual and warranty card.

TECHNICAL DATA:

Files for download:

ULTRA JET TIG 200AC/DC user manual
