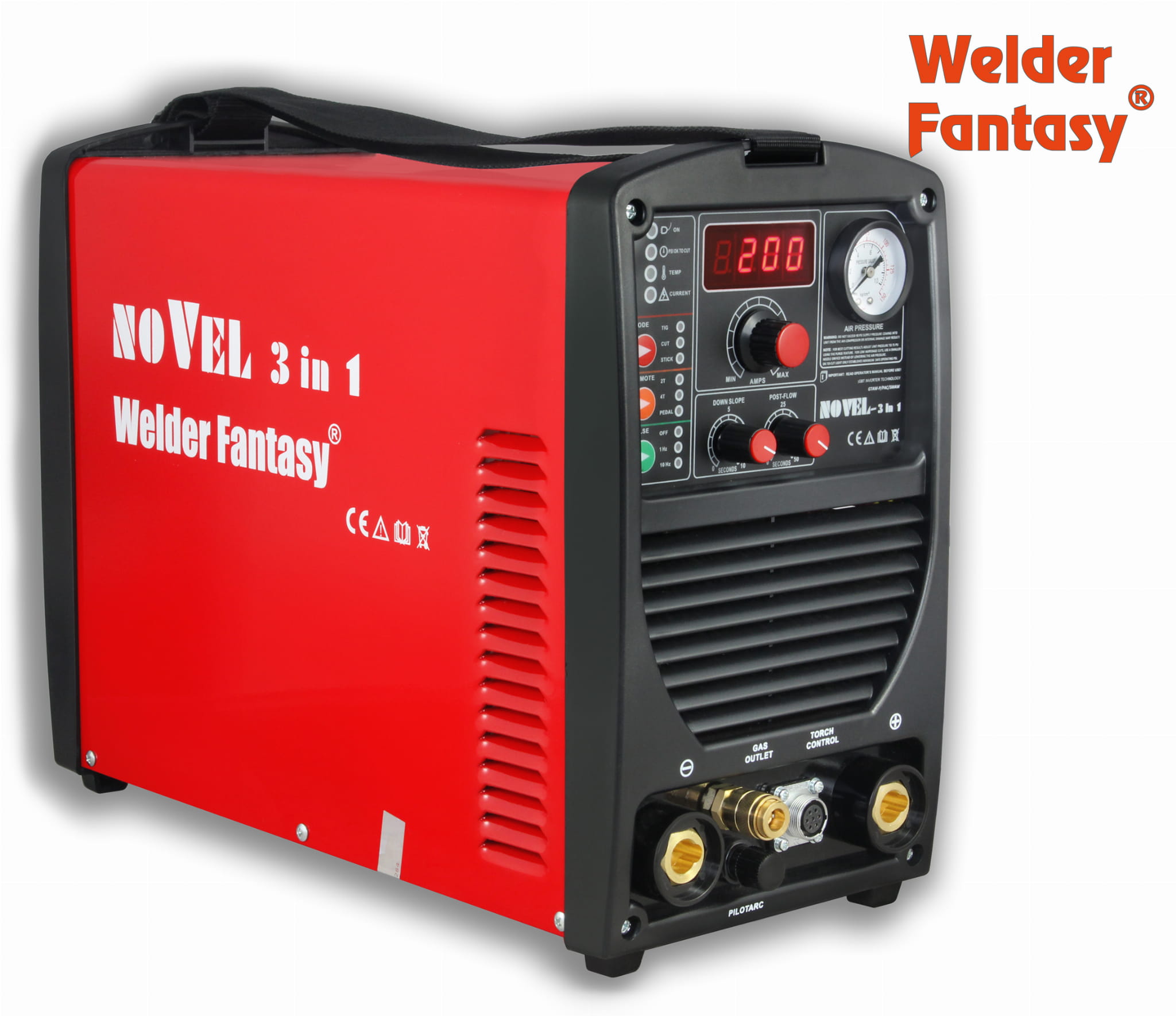

INVERTER WELDING MACHINE NOVEL 200 TIG/MMA/PLAZMA WELDER FANTASY

The Welder Fantasy NOVEL 3w1 series welding machine is an integrated multifunctional welding device enabling TIG DC and MMA welding as well as manual plasma cutting with a power of 50A.

"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK OF THE FACHOWIEC COMPANY - View the Trademark Protection Certificate

Its versatility and build quality allow for a wide range of applications both in small locksmith-welding workshops and in professional construction and assembly work. The clear control panel allows selection of optimal operating parameters for both beginners and experienced welders.

NOVEL 3w1 is a device for users looking for multiple application possibilities and compact dimensions combined with an attractive price.

The Welder Fantasy NOVEL 3w1 device enables welding in the following modes:

• TIG DC PULSE HF - non-contact HF ignition using an ionizer in TIG DC PULSE mode. The pulse function allows welding of thin elements through periodic changes in current intensity.

• TIG DC HF - in order to completely eliminate the possibility of contaminating the weld with tungsten, it is recommended that the electrode does not touch the welded element; for this purpose, non-contact arc ignition is used by means of high-frequency discharges generated by the ionizer built into the device.

• PLASMA CUT - function enabling cutting of electrically conductive elements made of carbon and alloy steels, aluminum and its alloys, brass, copper, as well as cast iron.

• MMA DC+ - in the MMA method, a coated electrode is used, consisting of a metal core covered with flux coating. An electric arc is generated between the end of the electrode and the welded material. Arc ignition occurs by touching the electrode tip to the welded material. MMA DC+ means welding with positive polarity - more heat is generated in the material and less in the electrode.

• MMA DC- - the difference compared to MMA DC+ is that the polarity in MMA DC- mode is negative, therefore the heat distribution is reversed - more heat is generated on the electrode and less in the welded material.

DEVICE FEATURES:

• compact, integrated design,
• small dimensions and low weight,
• IGBT transistors,
• 60% efficiency,

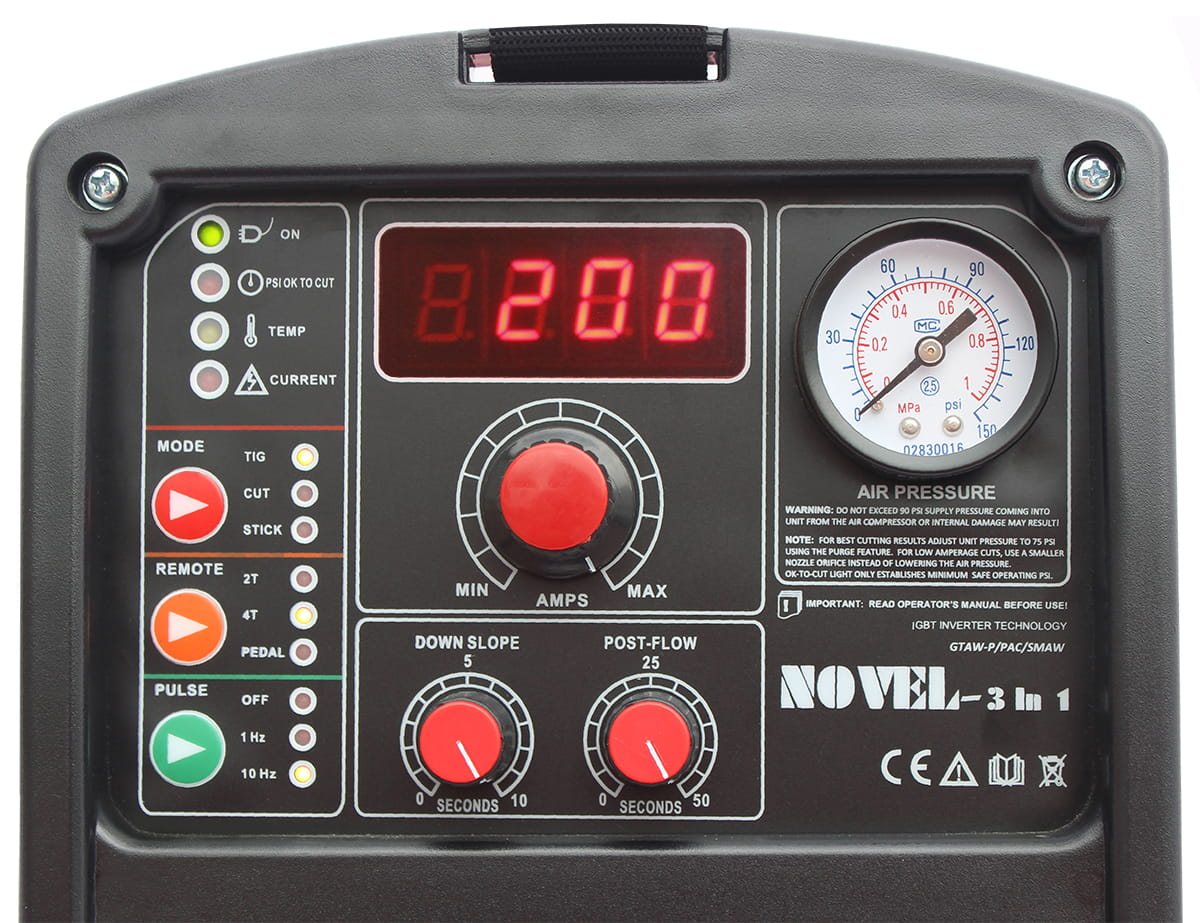

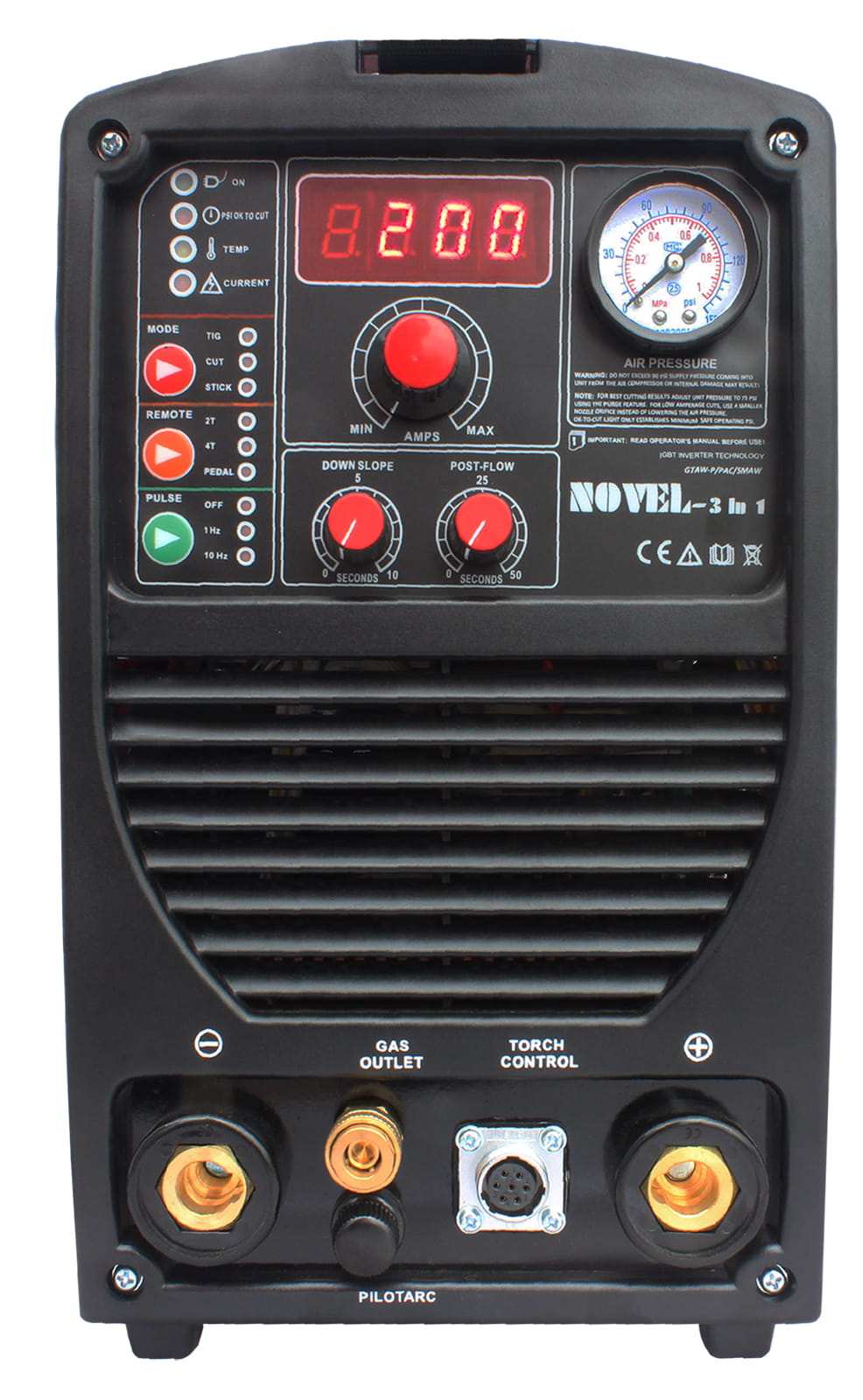

• easy-to-use control panel,
• compressed air pressure gauge,
• LCD display of operating parameters,
• very wide selection of welding functions:
  • HF - the device is equipped with an ionizer that allows non-contact arc ignition.
  • POST GAS - adjustable with a knob, gas flow time after welding and after plasma cutting
  • DOWN SLOPE - adjustable with a knob, current fall time after TIG welding (crater filling)
  • 2T / 4T / PEDAL - selection between two-stroke / four-stroke / control pedal operation mode,
  • PULSE - pulsed welding in TIG method with a pulse frequency of 1Hz or 10Hz.

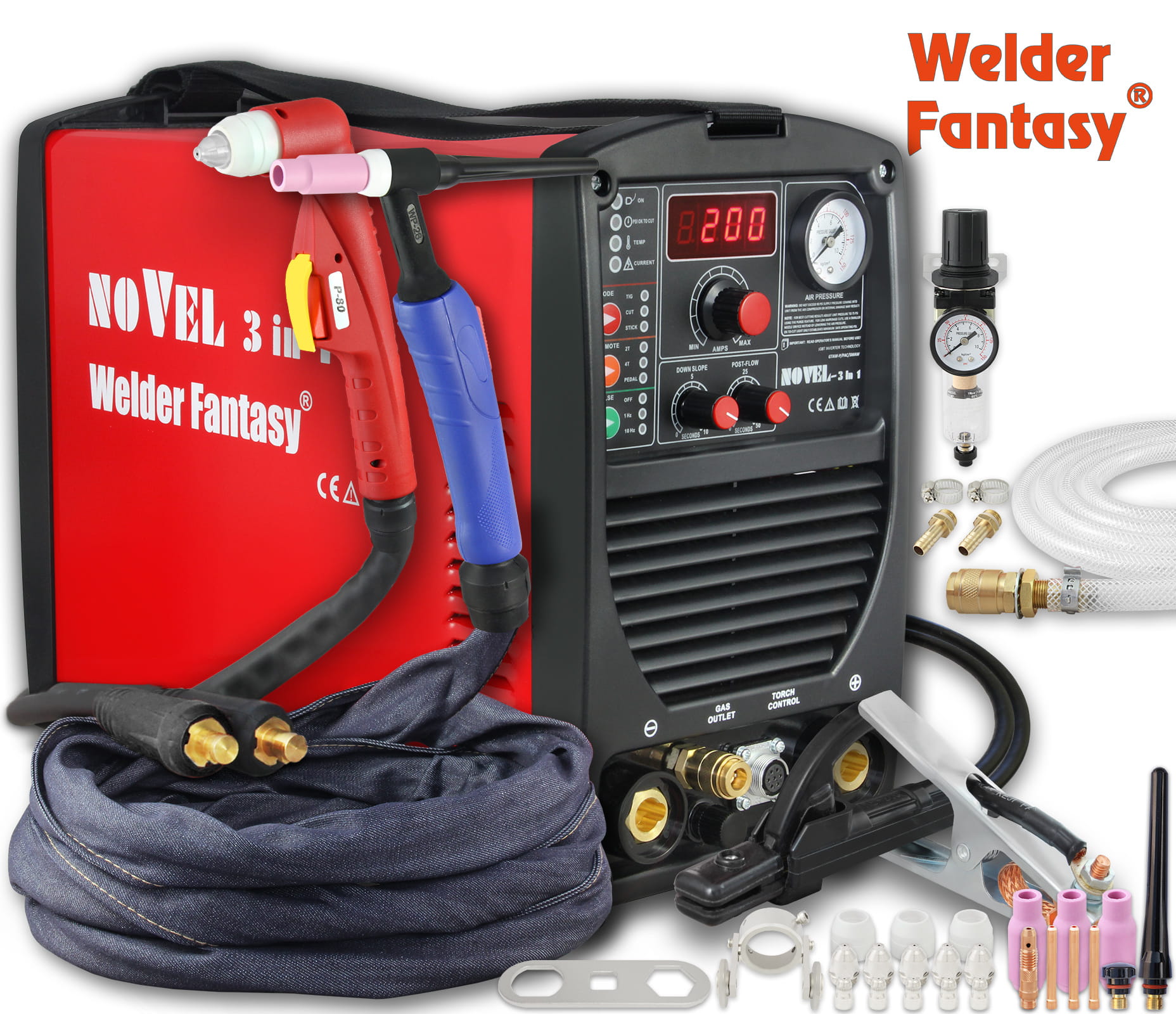

SET EQUIPMENT:

• Welder Fantasy NOVEL 200 IGBT welding machine,

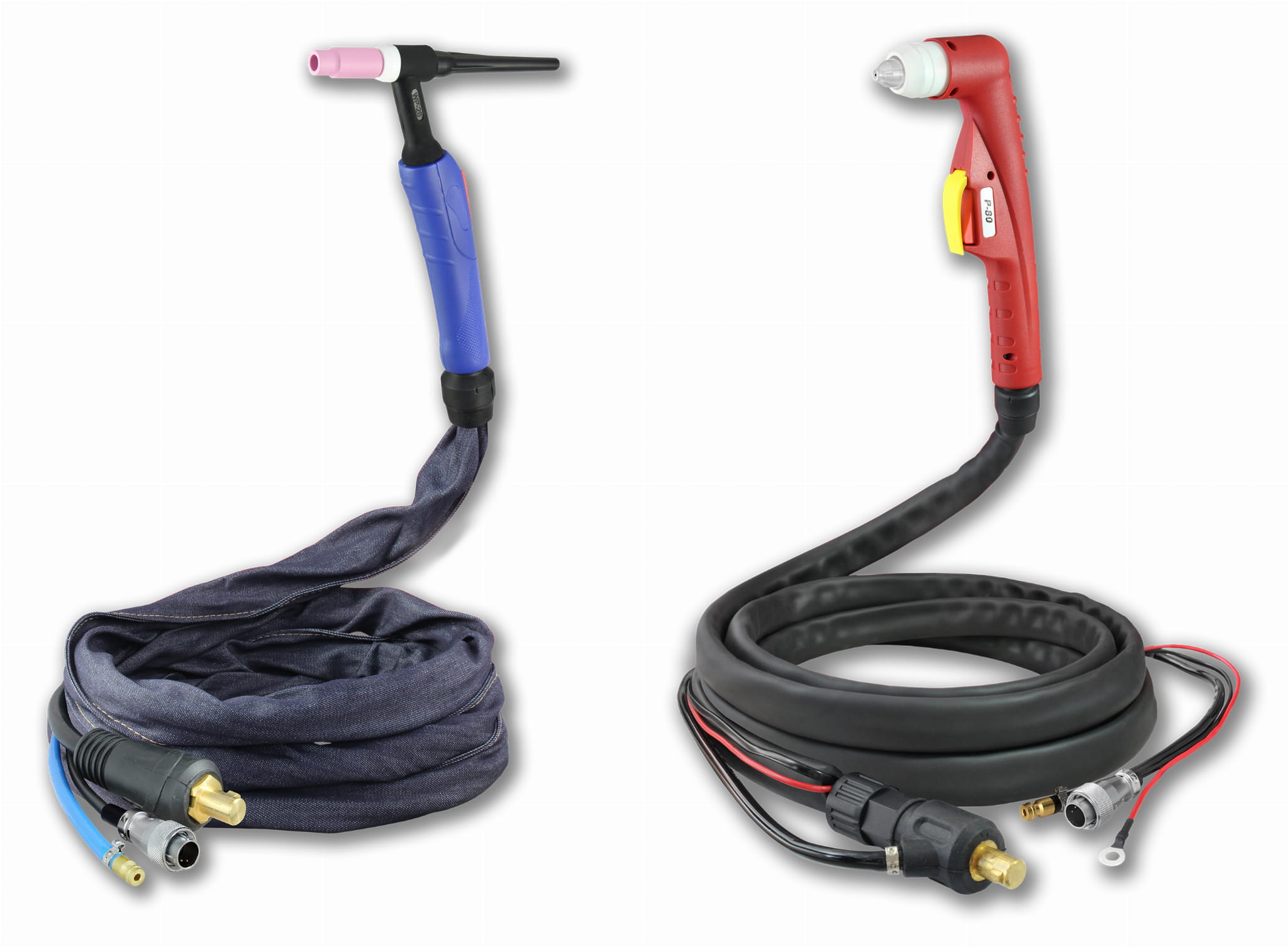

• TIG SRT 26-4m torch,

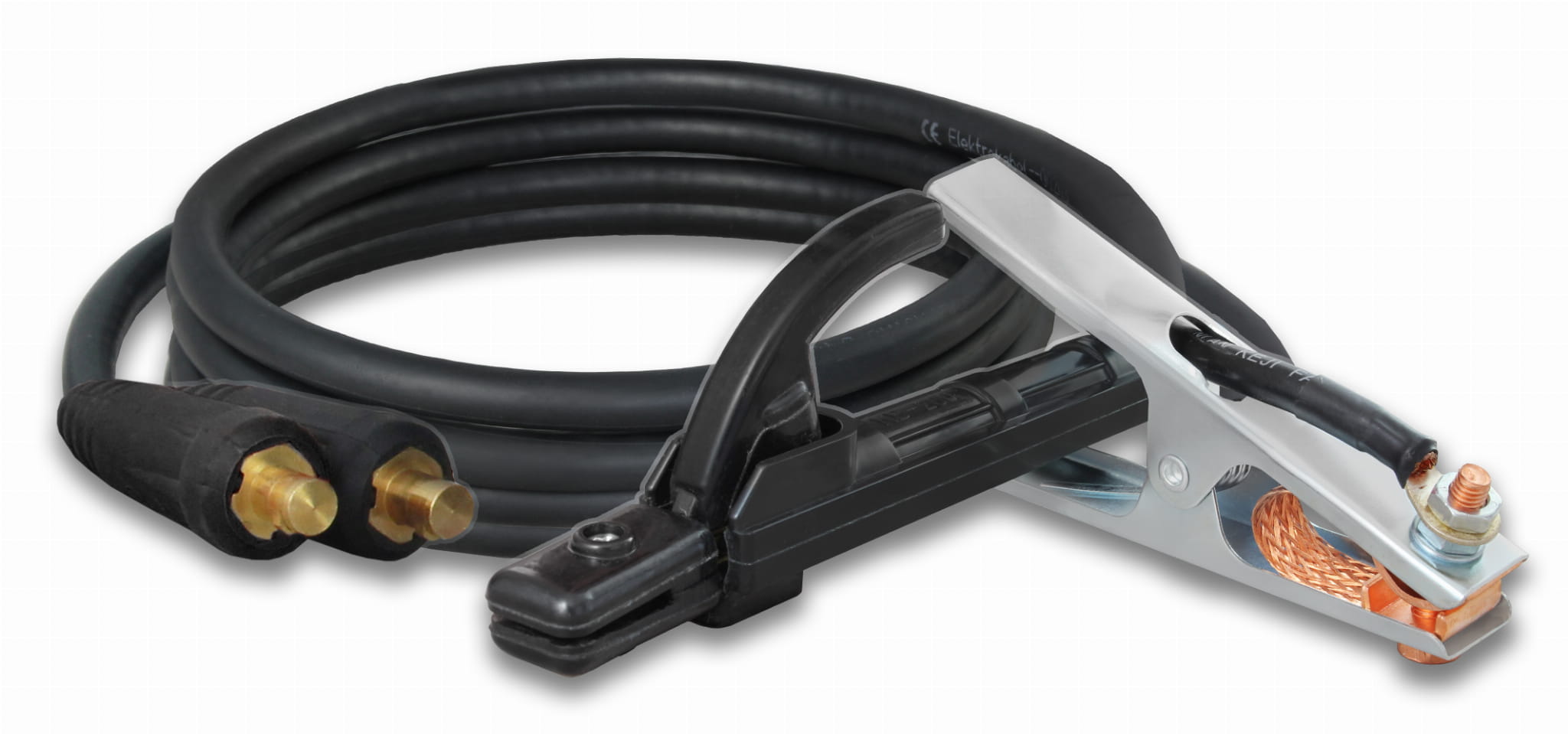

• ground clamp 3m,
• electrode holder 3m,
• P80-4m plasma torch,

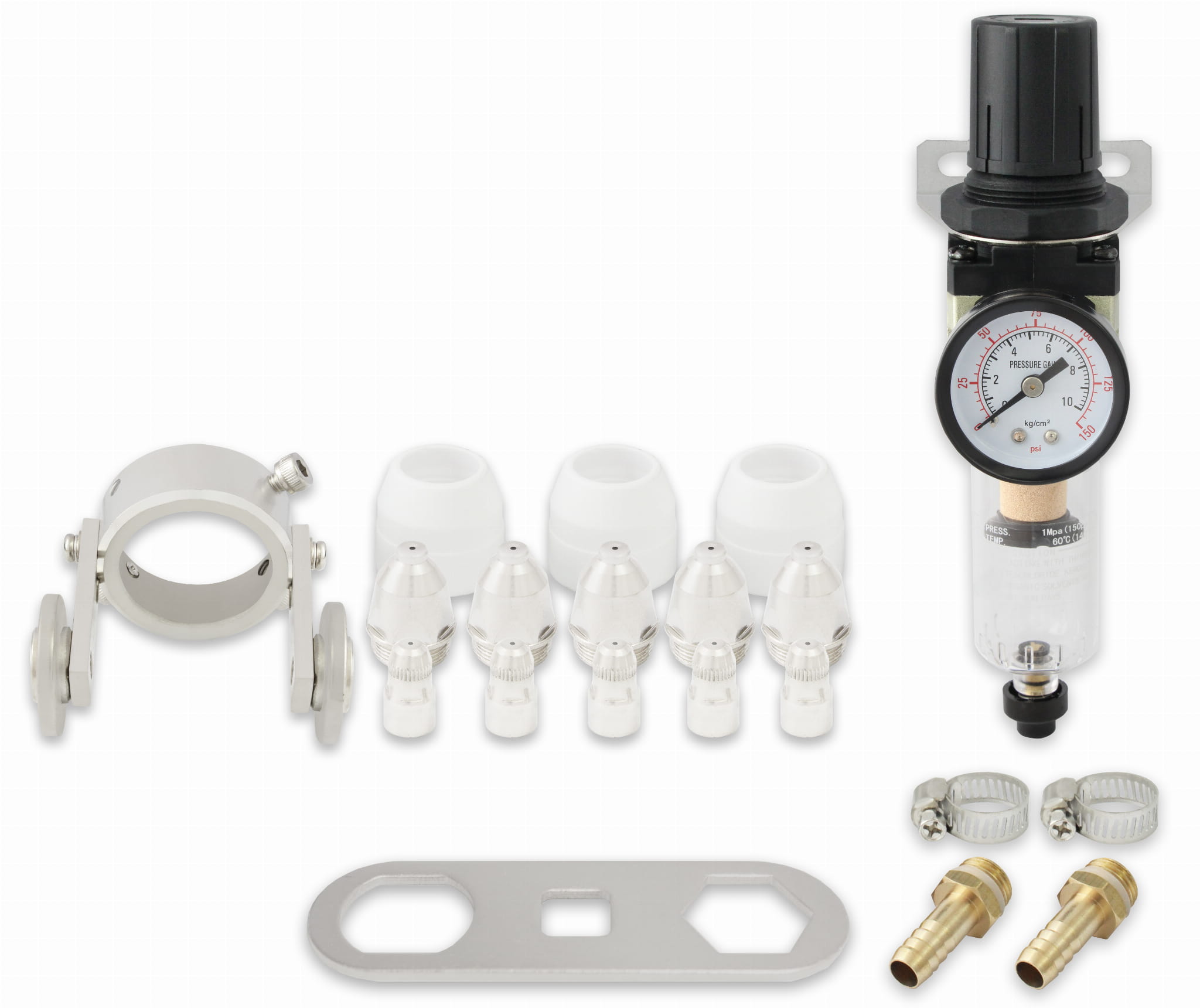

• additional consumable parts (nozzles, connectors, collets, electrodes),
• plasma torch carriage,
• compressed air filter-regulator,
• instruction manual and warranty card.
