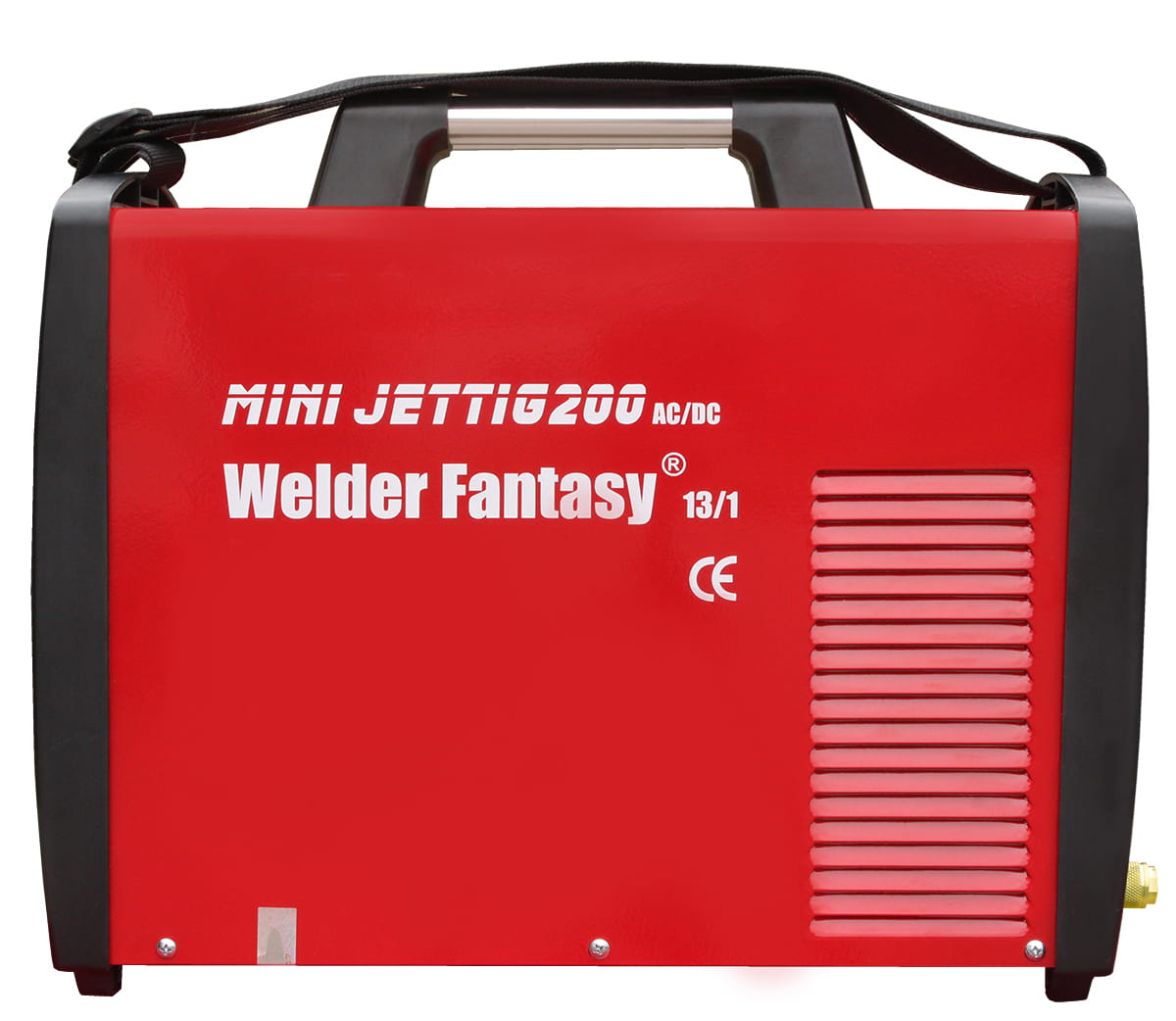

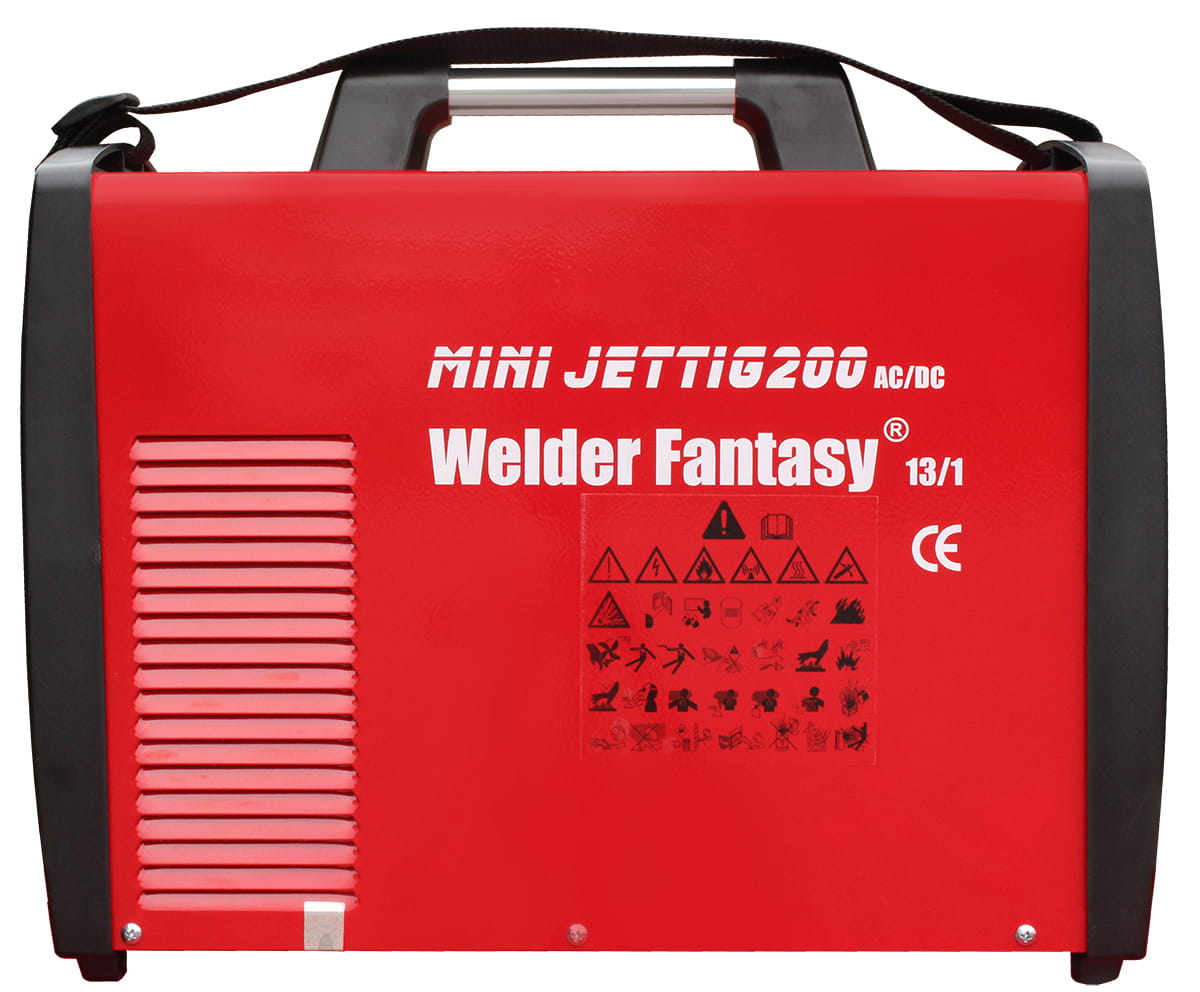

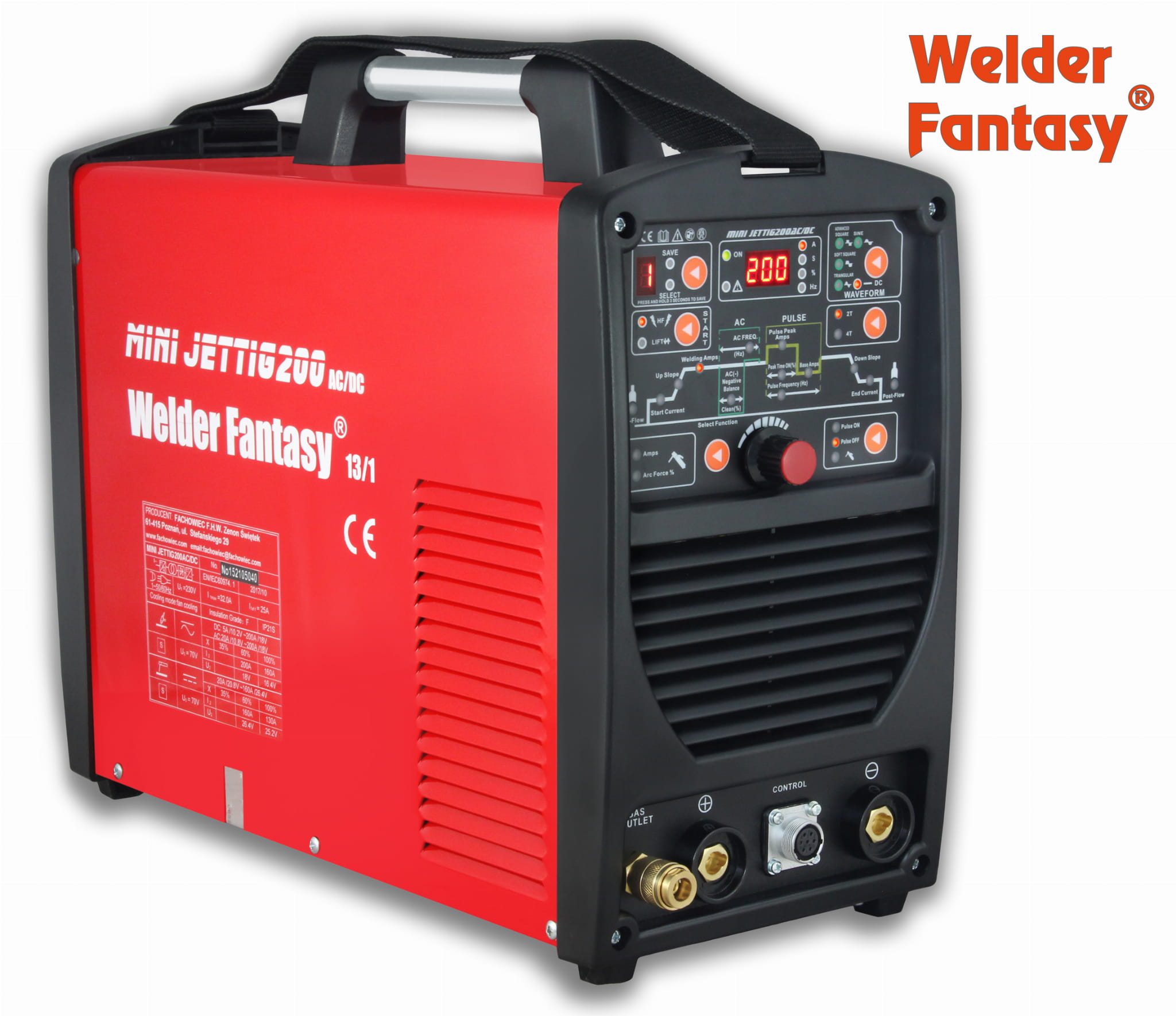

INVERTER WELDING MACHINE MINI JET TIG 200 AC/DC WELDER FANTASY

Industrial welding machine Welder Fantasy MINI JET TIG is a microprocessor-controlled welding power source based on IGBT technology, designed for welding carbon steels, stainless steels, acid-resistant steels, copper, brass, magnesium, titanium, and all aluminum alloys.

"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK - View Trademark Protection Certificate

This top-class device sets new standards among AC/DC welding machines, and the user-friendly control panel ensures the selection of all necessary operating parameters.

The MINI JET TIG AC/DC 200 welding machine allows operation in the following modes:

• TIG DC lift-arc - In the TIG method (Tungsten Inert Gas), the electric arc is struck in a shield of inert gas (argon), between the workpiece and a non-consumable electrode made of pure tungsten or tungsten with additives. In TIG lift-arc mode, the arc is initiated when the electrode touches the workpiece. In TIG DC mode, the current is constant.

• TIG DC HF - To completely eliminate the possibility of tungsten contamination of the weld, it is recommended that the electrode does not touch the workpiece; for this purpose, non-contact arc ignition is used with the help of high-frequency discharges generated by the built-in ionizer.

• TIG DC PULS lift-arc - arc ignition occurs by contact of the electrode with the welded material, the pulse function allows welding of thin elements by periodic changes in current intensity.

• TIG DC PULS HF - non-contact HF ignition using an ionizer in TIG DC PULS mode.

• TIG AC lift-arc - a function that allows welding of aluminum by using alternating current, which performs a cathodic cleaning function during aluminum welding. Thanks to the ability to set the AC BALANCE parameter, i.e., the balance of alternating current, it is possible to adjust the ratio of the duration of its phases relative to each other.


• TIG AC HF - an analogous function enabling welding of aluminum with alternating current, ignition occurs without contact via high-frequency current generated by the ionizer.

• TIG AC PULS lift-arc - welding in this mode combines the use of alternating current with pulse, enabling welding of very thin aluminum elements. Arc ignition occurs through contact of the electrode with the welded material.

• TIG AC PULS HF - a function enabling welding of thin aluminum elements. Non-contact ignition thanks to the use of an ionizer.

• MMA DC+ - In the MMA method, a coated electrode is used, consisting of a metal core covered with flux. An electric arc is generated between the end of the electrode and the welded material. Arc ignition occurs by touching the electrode to the material. MMA DC+ means welding with positive polarity – more heat is generated in the material and less in the electrode.

• MMA DC- - the difference from MMA DC+ is that the polarity in MMA DC- mode is negative, so the heat distribution is reversed – more heat is generated in the electrode and less in the welded material.

For all TIG methods, the following welding modes can be used:

• arc ignition via LIFT-ARC system (2T),
• arc ignition via LIFT-ARC system (4T),
• non-contact HF arc ignition (2T),
• non-contact HF arc ignition (4T),
• arc ignition using a remote control pedal.

DEVICE FEATURES:

• compact, robust design,
• small dimensions and low weight,
• IGBT transistors,
• 60% efficiency,
• easy-to-use control panel,
• LCD display of welding parameters,
• LCD display of individual program,
• ability to save up to 9 full programs,
• very wide range of welding functions:
  • waveform selection - advanced square (rectangular), soft square (trapezoidal), triangular, sine (sinusoidal).
  • HF - the device is equipped with an ionizer that allows non-contact arc ignition.
  • 2T/4T
  • PRE and POST GAS - gas flow before and after welding.
  • UP and DOWN SLOPE - rise and fall of welding current.
  • PULS - pulsed current function, mainly used for welding thin elements (even as thin as 0.1 mm), metals with low melting points such as lead, or welding in forced positions. Other advantages of pulsed welding include a smaller heat-affected zone, greater arc stability, deeper penetration, and improved weld appearance.
  • ARC FORCE - function stabilizing the welding process by maintaining arc voltage regardless of its length and facilitating control of spatter.

THE COMPLETE SET INCLUDES:
- Welder Fantasy MINI JET TIG AC/DC 200 IGBT welding machine,
- PARKER SUREGRIP SGT26 FLEX TIG SRT 26-4m welding torch,

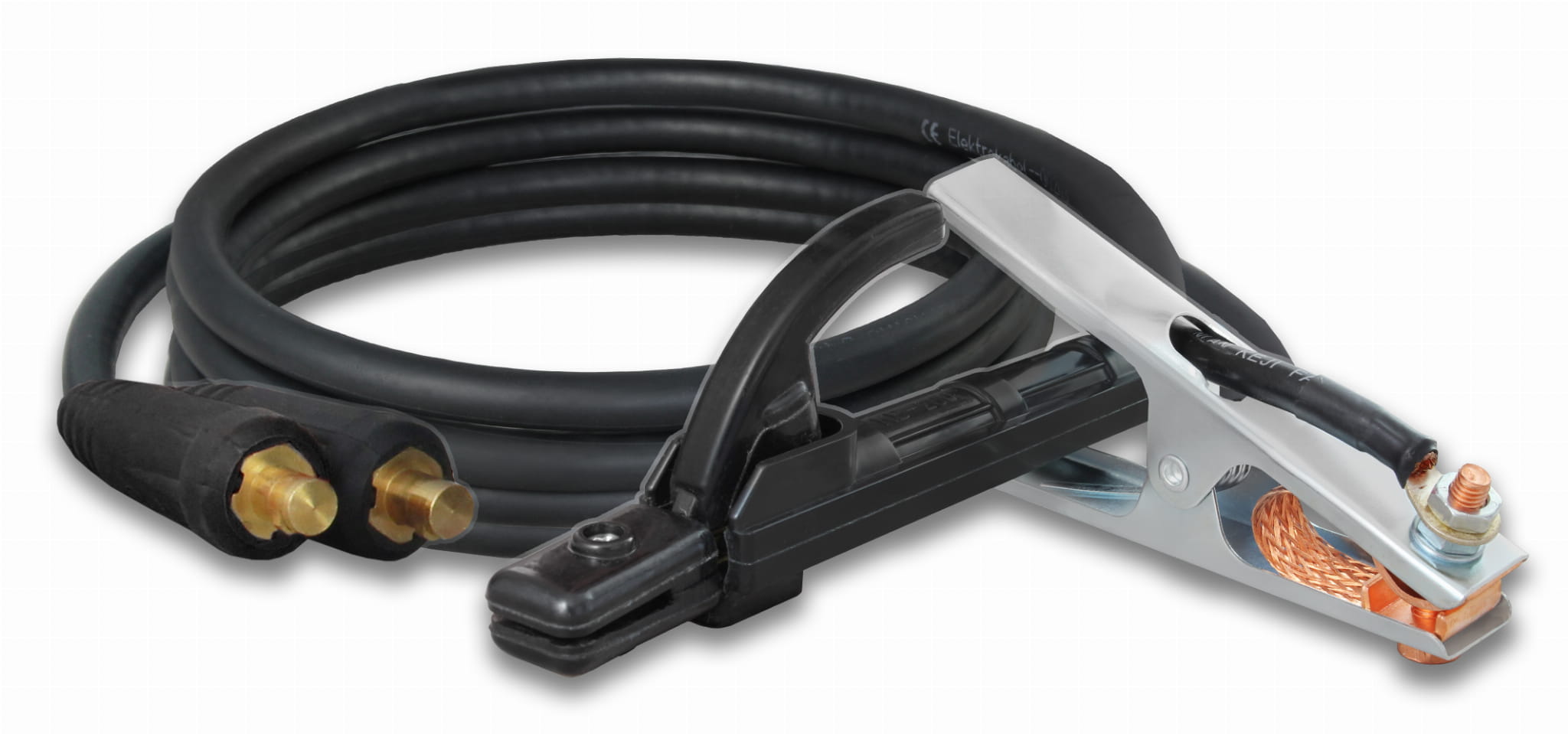

- 2.5 m ground clamp,
- 2.5 m electrode holder,
- additional consumable parts,
- user manual and warranty card.

TECHNICAL DATA:

Files to download:

User manual MINI JET TIG 200 AC/DC
