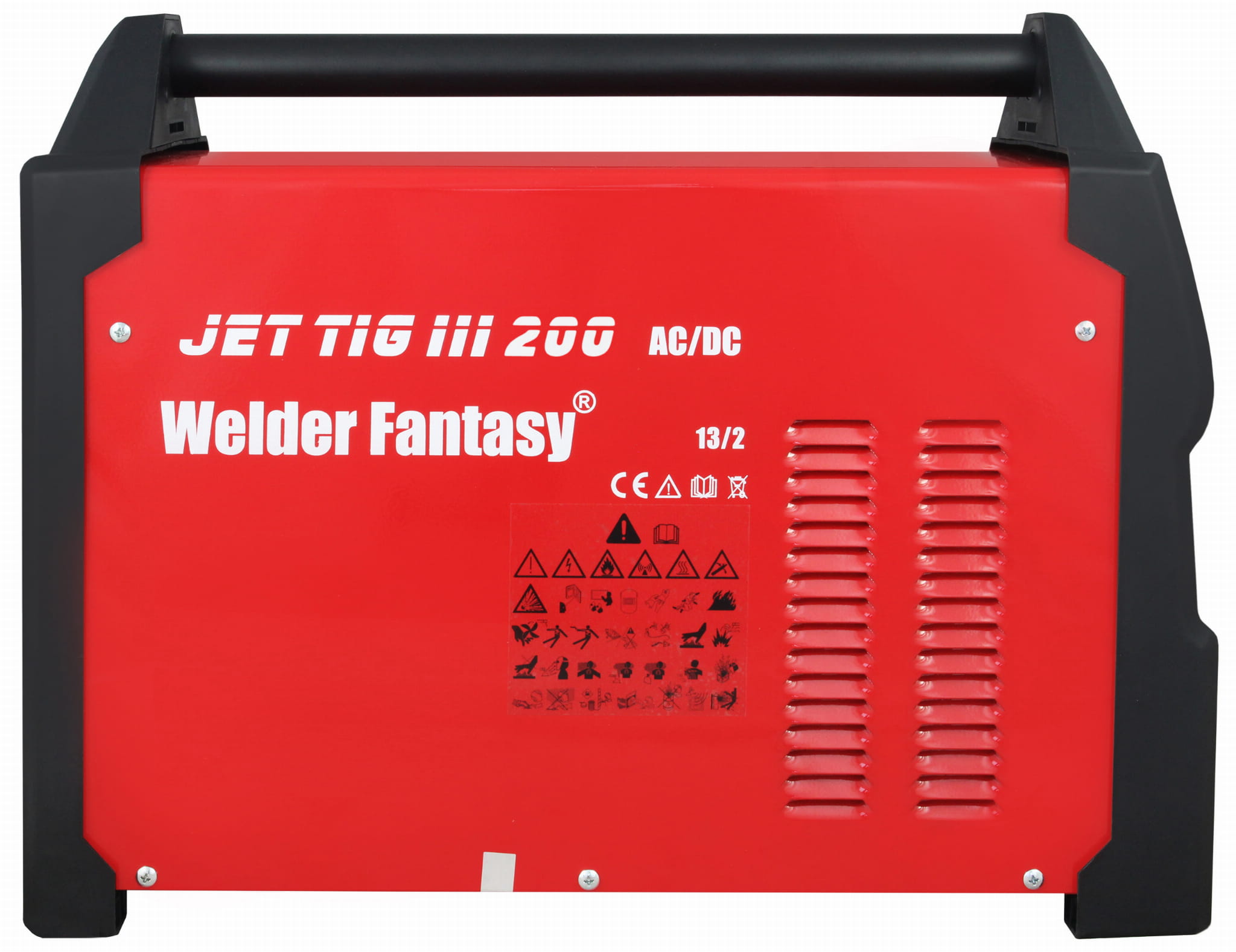

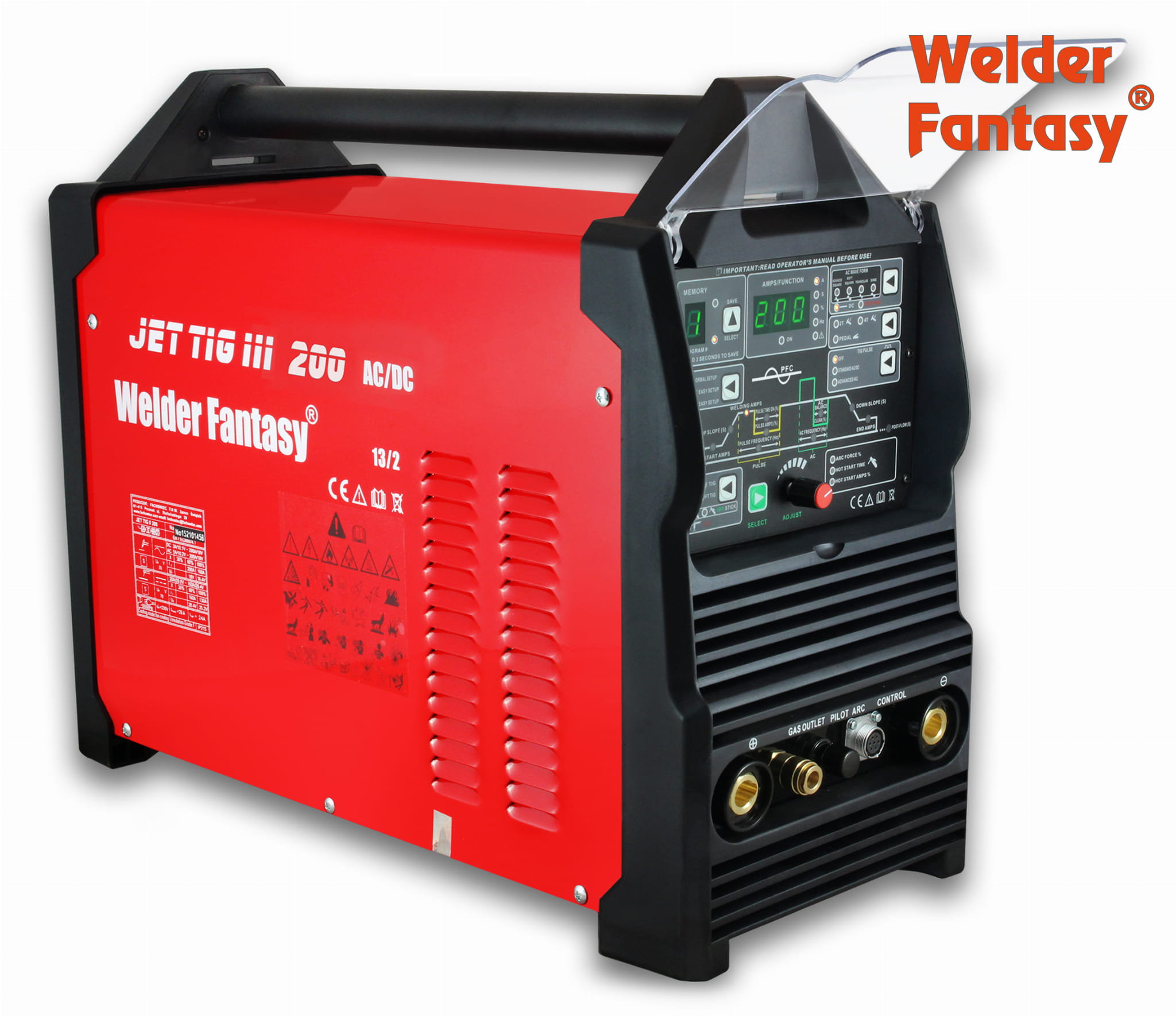

INVERTER WELDING MACHINE JET TIG III 200 AC/DC WELDER FANTASY

Industrial equipment Welder Fantasy JET TIG III 200 are microprocessor-controlled welding power sources based on IGBT technology, designed for welding carbon steels, stainless steels, acid-resistant steels, copper, brass, magnesium, titanium, and all aluminum alloys.

"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK OF THE COMPANY FACHOWIEC -View the Protection Certificate document

This top-class device sets new standards among AC/DC welding machines, and the user-friendly control panel allows selection of all necessary operating parameters.

The JET TIG III AC/DC 200 welder allows welding using the following methods:

• TIG DC PULSE lift-arc - arc ignition occurs through contact of the electrode with the welded material; the pulse function allows welding thin elements through periodic changes in current intensity.

• TIG DC PULSE HF - non-contact HF ignition using an ionizer in TIG DC PULSE mode

• TIG DC lift-arc - In the TIG method (Tungsten Inert Gas), the electric arc is struck in an inert gas shield (argon) between the welded element and a non-consumable electrode made of pure tungsten or tungsten with additives. In TIG lift-arc mode, arc ignition occurs when the electrode touches the welded element. In TIG DC mode the current is constant.

• TIG DC HF - In order to completely eliminate the possibility of contaminating the weld with tungsten, it is recommended that the electrode does not touch the welded element; for this purpose, non-contact arc ignition is used by means of high-frequency discharges generated by the ionizer built into the device.

• TIG AC PULSE lift-arc - welding in this mode combines the use of alternating current with pulse, enabling welding of very thin aluminum elements. Arc ignition occurs through contact of the electrode with the welded material.

• TIG AC PULSE HF - a function enabling welding of thin aluminum elements. Non-contact ignition thanks to the use of an ionizer.

• TIG AC lift-arc - a function that allows welding aluminum by using alternating current, which performs a cathodic cleaning function during aluminum welding. Thanks to the possibility of setting the AC BALANCE parameter, i.e. the balance of alternating current, it is possible to regulate the ratio of the duration of its phases relative to each other.

• TIG AC HF - an analogous function enabling aluminum welding with alternating current; ignition occurs without contact through high-frequency current generated by the ionizer.

• TIG AC + DC - the ADVANCED AC function enables welding with mixed AC DC- current. In a single cycle, there is a transition between AC alternating current and DC negative polarity current DC(-). This cycle repeats throughout the entire welding process. Welding with mixed current is particularly useful when joining elements of different thicknesses. Noise emission is also reduced compared to welding with AC alternating current.

• PLASMA CUT - a function enabling cutting of electrically conductive elements made of carbon steels and alloy steels, aluminum and its alloys, brass, copper, as well as cast iron

• MMA DC+ - In the MMA method a coated electrode is used, consisting of a metal core covered with flux coating. An electric arc is generated between the end of the electrode and the welded material. Arc ignition occurs by touching the electrode tip to the welded material. MMA DC+ means welding with positive polarity – more heat is released in the material and less in the electrode.

• MMA DC- - the difference compared to MMA DC+ is that the polarity in MMA DC- mode is negative, therefore the heat distribution is reversed – more heat is released on the electrode and less in the welded material.

• MMA VRD DC+ - available in MMA DC+ mode, the VRD (Voltage Reduction Device – module reducing the no-load voltage of the device's secondary circuit). It increases safety and reduces the risk of electric shock. The function switches the welding power supply off and on when resistance between the electrode tip and the welded element is measured during welding.

• MMA VRD DC- - available in MMA DC- mode, the VRD (Voltage Reduction Device) function operates analogously to MMA VRD DC+, the difference being the negative polarity.

For all TIG methods it is possible to use the following welding modes:

• ARC IGNITION THROUGH LIFT-ARC SYSTEM (2T and 4T)
• NON-CONTACT HF ARC IGNITION (2T and 4T)
• ARC IGNITION WITH REMOTE CONTROL PEDAL (2T and 4T)

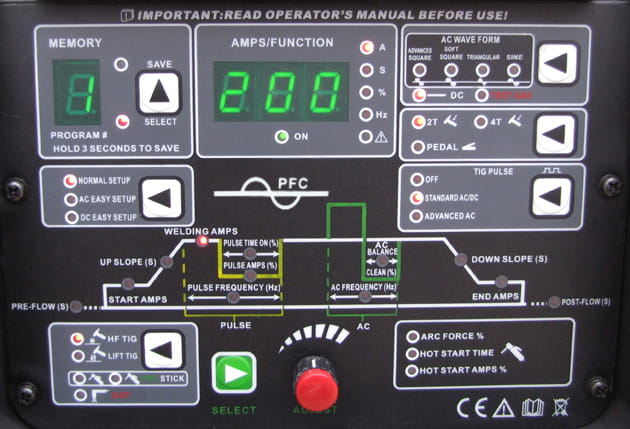

DEVICE FEATURES:

• solid, compact design
• IGBT transistors

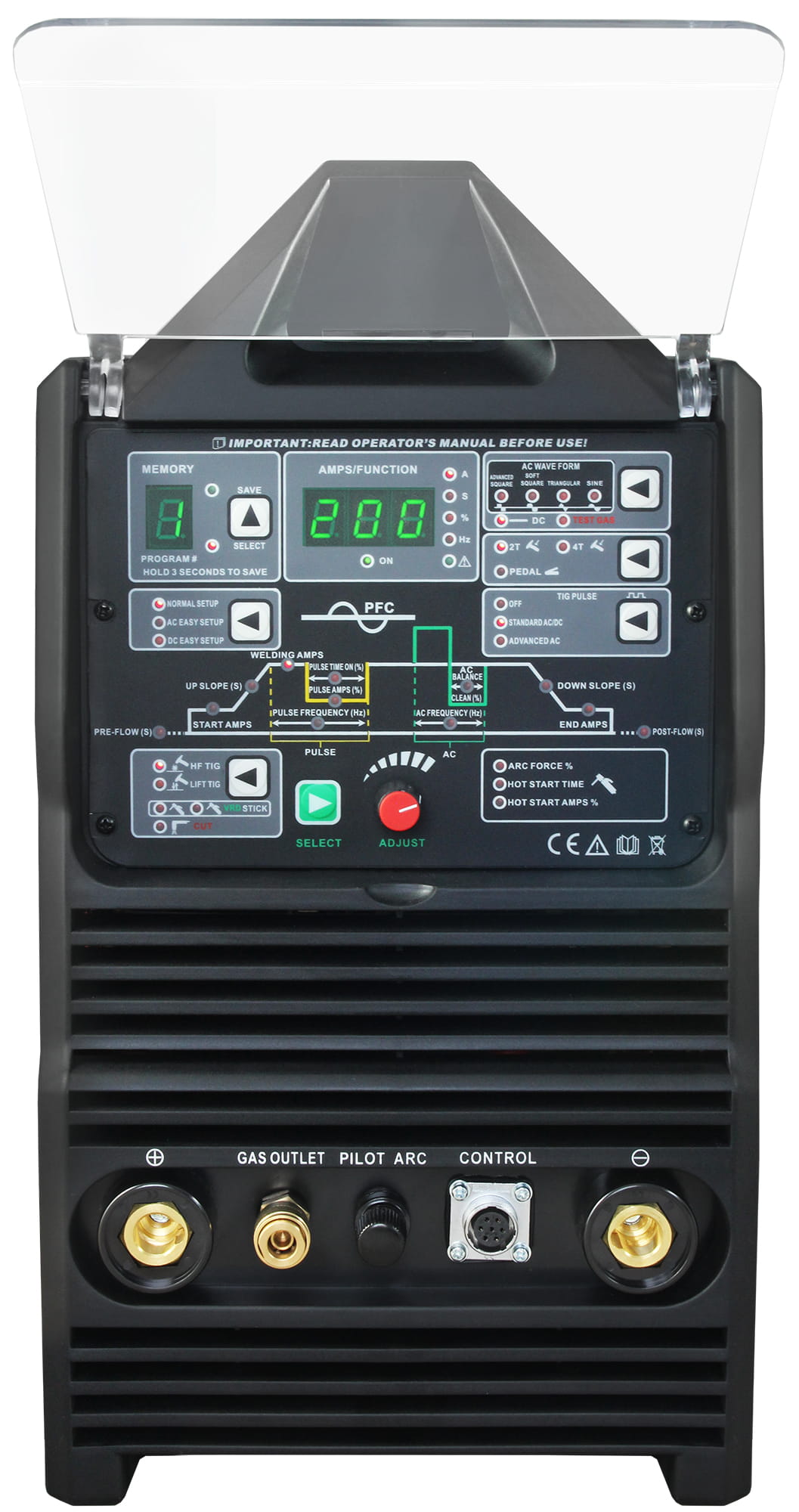

• LCD display of welding parameters
• LCD display of individual program
• ability to save a full 9 user programs
• 2-STROKE and 4-STROKE
• HF or LIFT mode

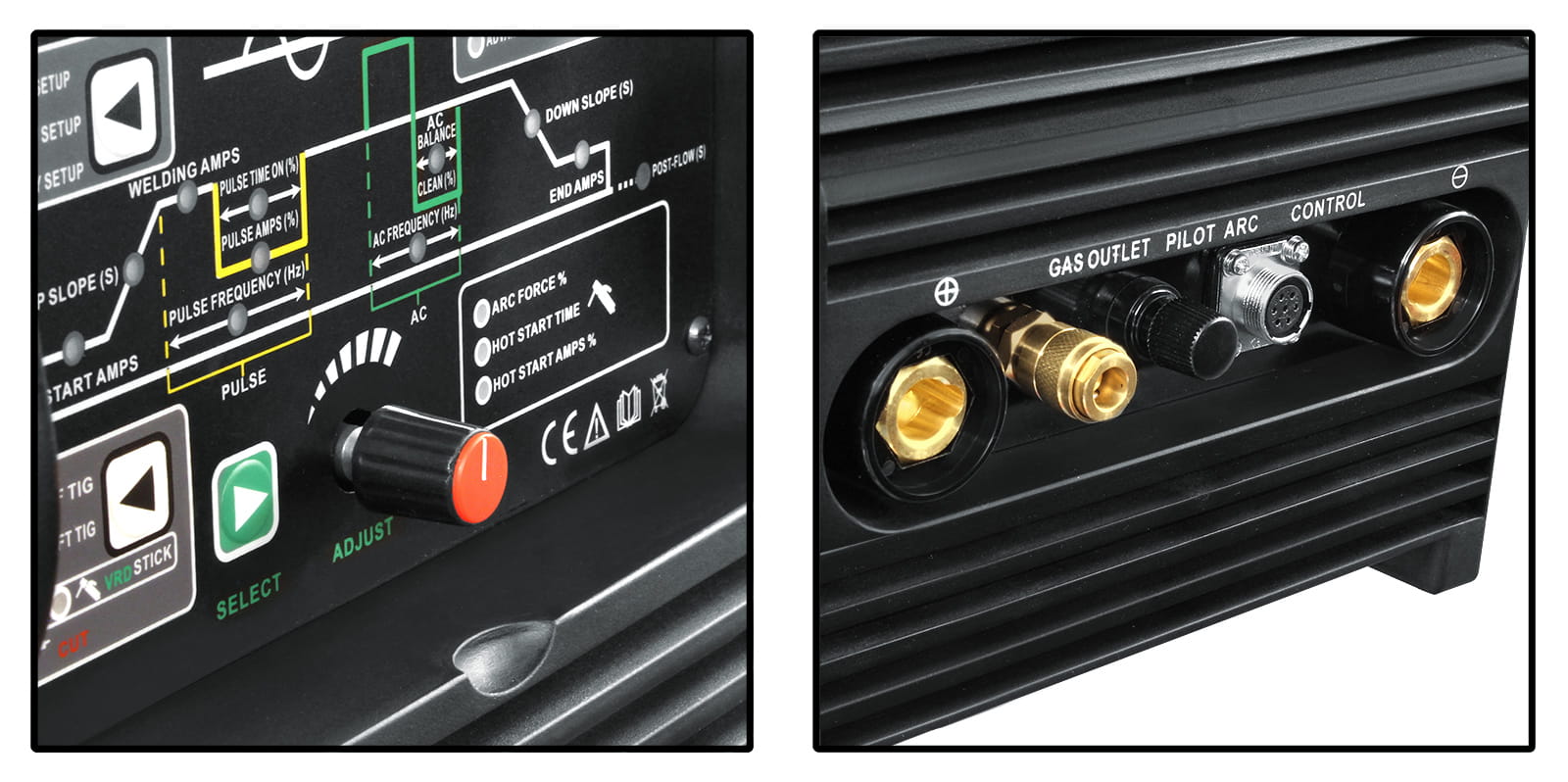

• dual-function adjust knob (coarse and fine adjustment)
• possibility to connect remote control – control pedal, torch with potentiometer
• very wide selection of welding functions:
  • waveform shape selection:

    • ADVANCED SQUARE - rectangular AC waveform allows welding aluminum with magnesium addition

    • SOFT SQUARE - trapezoidal AC waveform is used for welding aluminum with silicon addition

    • TRIANGULAR - triangular waveform setting is optimal for welding thin elements, including anodized aluminum

    • SINE - sinusoidal waveform is recommended for welding pure aluminum 99.999%
  • AC/DC EASY SETUP - possibility to use pre-programmed factory settings.
  • NORMAL SETUP - welding parameters set according to individual needs.
  • HF - the device is equipped with an ionizer that enables non-contact ignition of the welding arc.
  • PRE and POST GAS - gas flow before and after welding.
  • UP and DOWN SLOPE - rise and fall of welding current.
  • PULSE - pulsed current function mainly used when welding thin elements (even 0.1 mm thick), metals with low melting temperature such as lead, or welding in forced positions. Other advantages of pulsed current welding include a smaller heat-affected zone, greater welding arc stability, greater penetration depth and improved weld face appearance.
  • CUT - plasma cutting function.
  • HOT START - function increasing current during arc ignition, facilitating the start of welding.
  • ARC FORCE - function stabilizing the welding process by maintaining the welding arc voltage regardless of its length and helping control the amount of spatter.
  • VRD - Voltage Reduction Device - reduces the no-load voltage of the device's secondary circuit. Increases safety and reduces the risk of electric shock.
  • PFC - Power Factor Correction - increases the power factor to a value as close as possible to 100% in order to reduce power losses in transmission lines.
  • GAS TEST

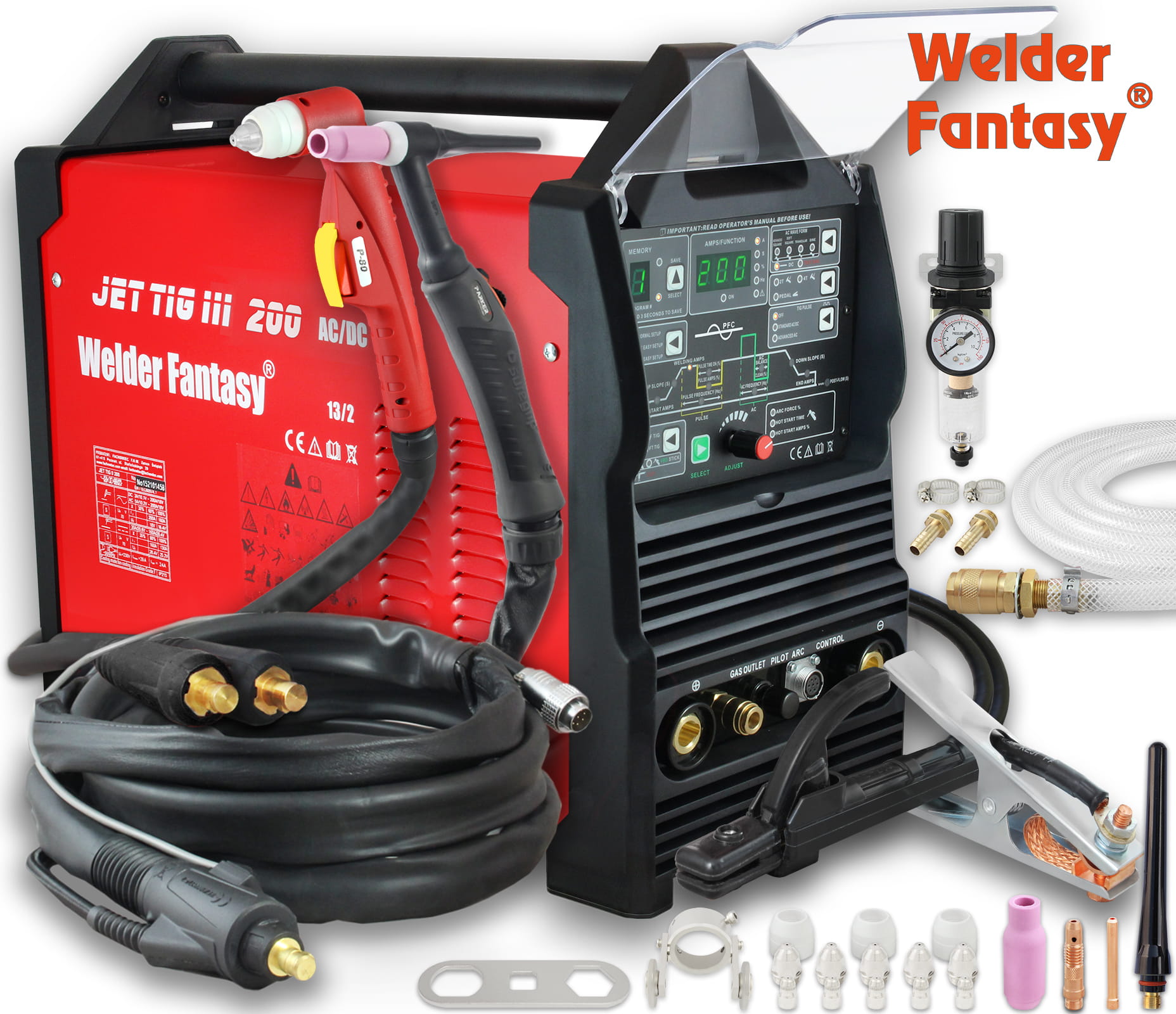

SET CONTENTS:

• welder Welder Fantasy JET TIG III AC/DC 200 IGBT

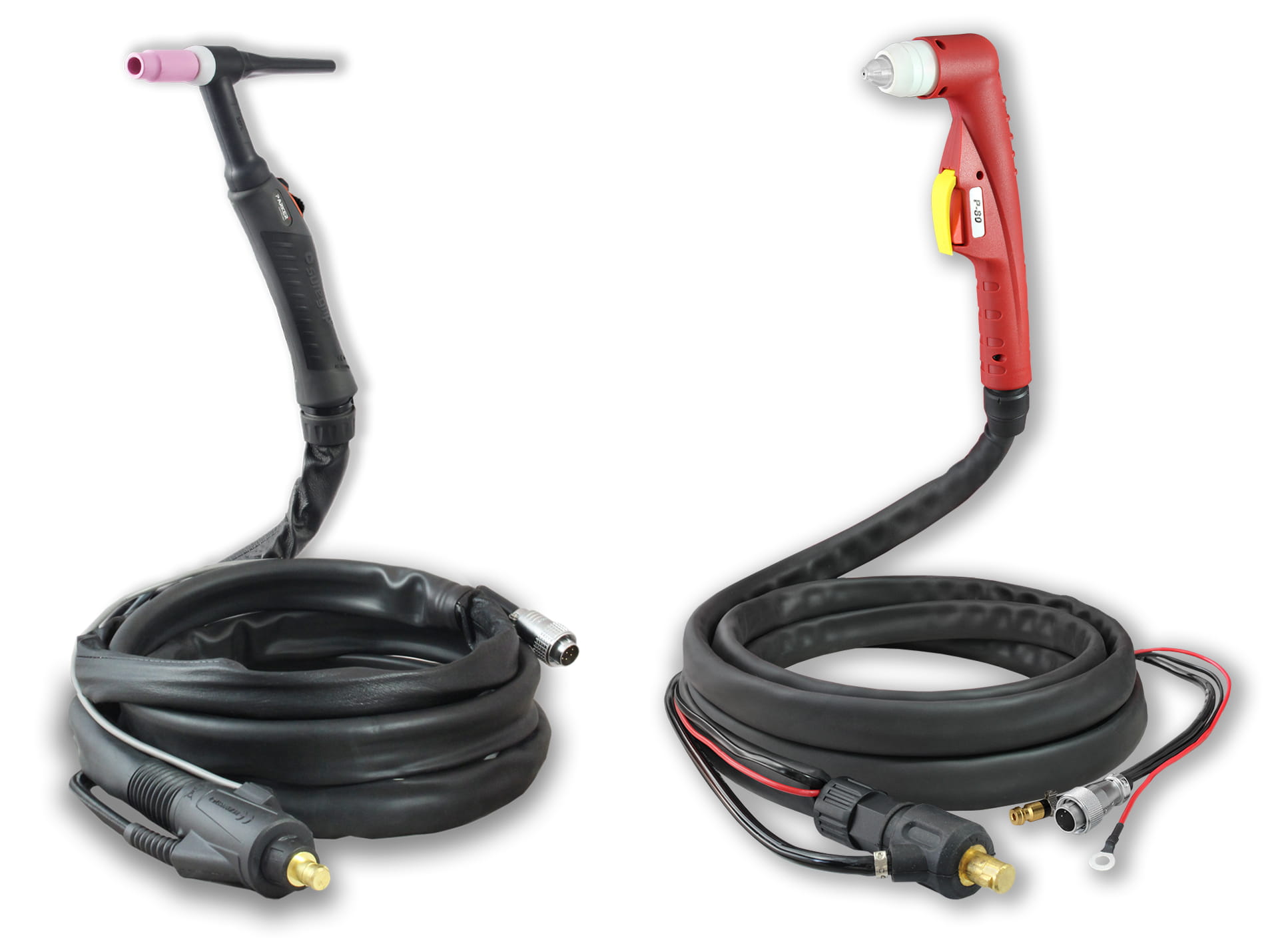

• TIG torch PARKER SGT 26 FLEX - 4 m with welding current adjustment

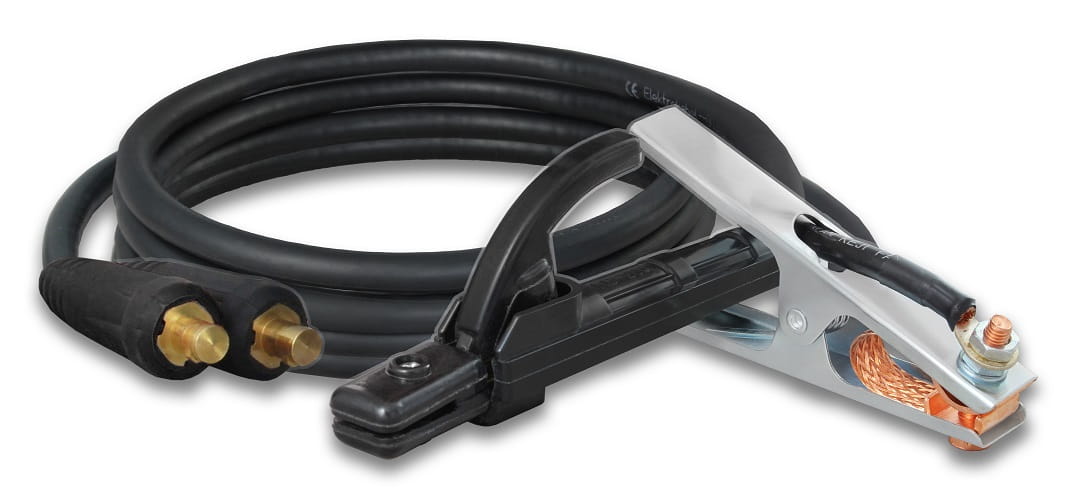

• ground clamp 3 m
• electrode holder 3 m
• plasma torch P80 - 4 m

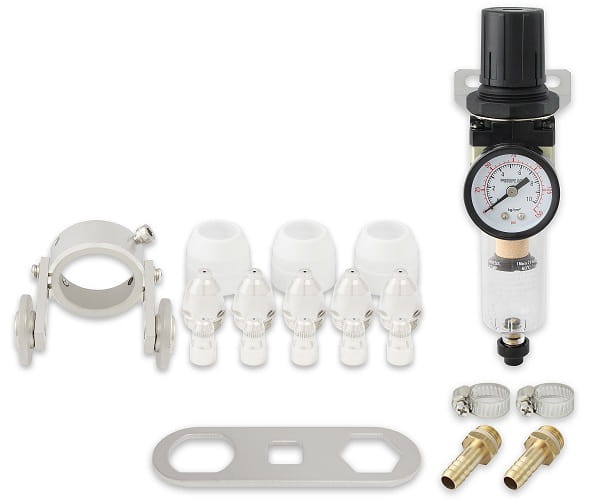

• plasma torch carriage
• compressed air filter-regulator
• additional consumables (nozzles, connectors, collets, electrodes)
• instruction manual in Polish


TECHNICAL DATA:

Files to download:

JET TIG III 200 AC/DC user manual
