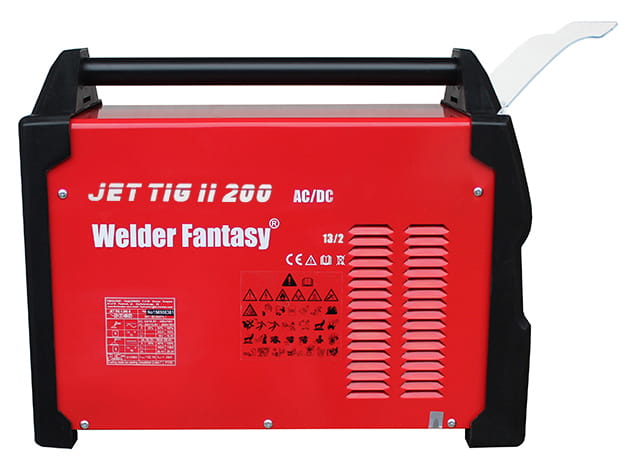

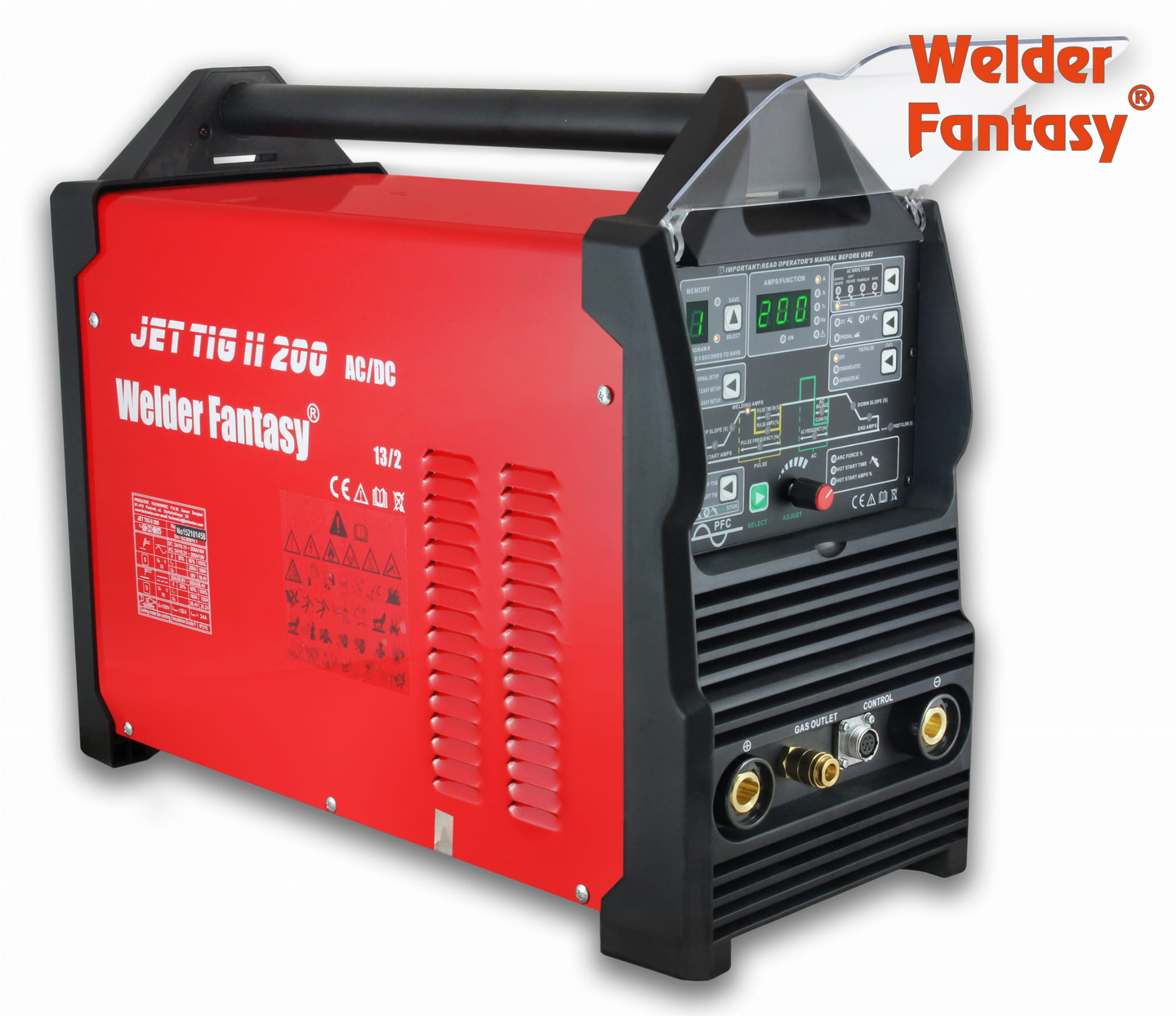

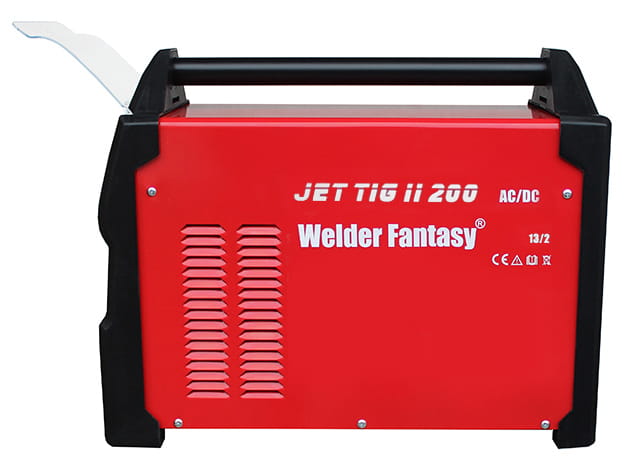

INVERTER WELDING MACHINE JET TIG II 200 AC/DC WELDER FANTASY

Industrial devices Welder Fantasy JET TIG II 200 are microprocessor-controlled welding power sources based on IGBT technology, designed for welding carbon steels, stainless steels, acid-resistant steels, copper, brass, magnesium, titanium, and all aluminum alloys.

"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK OF FACHOWIEC - See the Protection Certificate document

A top-class device sets new standards among AC/DC welding machines, and the user-friendly control panel allows selection of all necessary working parameters.

The JET TIG II AC/DC 200 welder allows welding with the following methods:

• TIG DC PULS lift-arc - the arc is ignited by touching the electrode to the material being welded; the pulse function allows welding of thin elements through periodic changes in current intensity.

• TIG DC PULS HF - contactless HF ignition using the ionizer in TIG DC PULS mode.

• TIG DC lift-arc - In the TIG method (Tungsten Inert Gas), the electric arc is ignited in an inert gas (argon) shield between the material being welded and a non-consumable electrode made of pure tungsten or tungsten with additives. In TIG lift-arc mode, the arc is ignited when the electrode touches the material. In TIG DC mode, the current is direct.

• TIG DC HF - To completely eliminate the possibility of tungsten contamination of the weld, it is recommended that the electrode does not touch the material; for this purpose, contactless arc ignition using high-frequency discharges generated by the built-in ionizer is used.

• TIG AC PULS lift-arc - Welding in this mode combines alternating current with pulsing, allowing welding of very thin aluminum elements. The arc ignites by contact of the electrode with the welded material.

• TIG AC PULS HF - A function that allows welding thin aluminum elements. Contactless ignition is achieved using the ionizer.

• TIG AC lift-arc - A function allowing aluminum welding using alternating current, which acts as cathode cleaning during welding. By adjusting the AC BALANCE parameter, it is possible to regulate the ratio of the duration of the AC phases relative to each other.

• TIG AC HF - A similar function enabling aluminum welding with alternating current, with contactless ignition using high-frequency current generated by the ionizer.

• TIG AC + DC - The ADVANCED AC function allows welding with mixed AC DC current. In a single cycle, it switches between alternating current AC and direct current with negative polarity DC(-). This cycle repeats throughout the welding process. Mixed current welding is particularly useful when joining elements of different thicknesses. It also reduces noise emissions compared to AC welding.

• MMA DC+ - In the MMA method, a coated electrode consisting of a metal core covered with a coating is used. An electric arc is generated between the tip of the electrode and the material being welded. The arc ignites when the electrode tip touches the material. MMA DC+ means welding with positive polarity - more heat is released in the material and less in the electrode.

• MMA DC- - The difference compared to MMA DC+ is that the polarity in MMA DC- mode is negative, so the heat distribution is reversed - more heat is released at the electrode and less in the material being welded.

• MMA VRD DC+ - Available in MMA DC+ mode, the VRD function (Voltage Reduction Device) reduces the open-circuit voltage of the secondary circuit. It increases safety and reduces the risk of electric shock. The function switches the welding power on and off when the resistance between the electrode tip and the welded material is detected during welding.

• MMA VRD DC- - Available in MMA DC- mode, the VRD function works similarly to MMA VRD DC+, with the difference being negative polarity.

For all TIG methods, the following welding modes can be used:

• ARC IGNITION VIA LIFT-ARC SYSTEM (2T and 4T)
• CONTACTLESS ARC IGNITION HF (2T and 4T)
• ARC IGNITION USING REMOTE CONTROL PEDAL (2T and 4T)

DEVICE FEATURES:

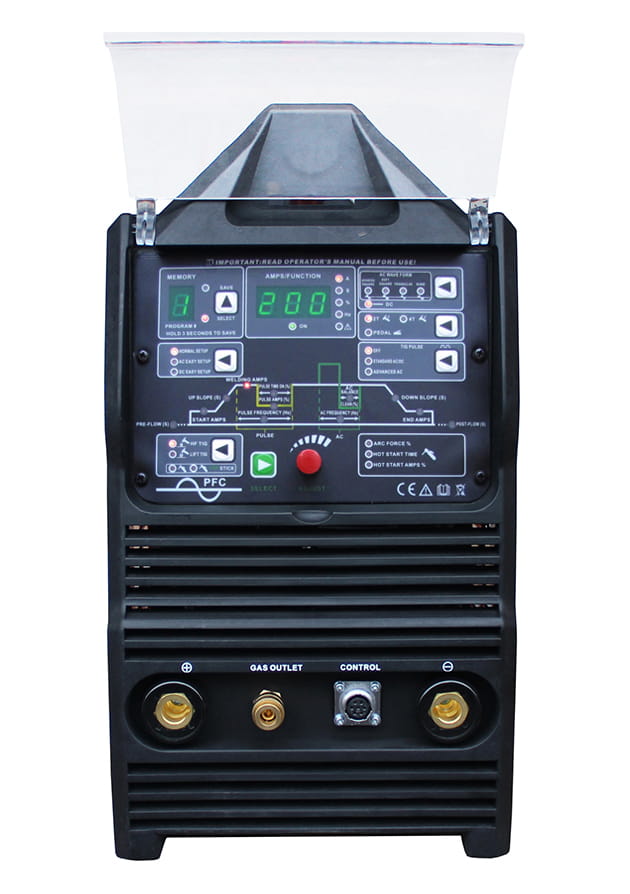

• LCD display of welding parameters
• LCD display of individual program
• Ability to save 9 full programs
• 2-TACK and 4-TACK
• HF or LIFT mode
• Dual-function adjust knob (coarse and fine adjustment)
• Ability to connect remote control - foot pedal, torch with potentiometer
• Very wide selection of welding functions:
  • Ability to select waveform shape:

    • ADVANCED SQUARE - rectangular AC waveform for welding aluminum with magnesium addition

    • SOFT SQUARE - trapezoidal AC waveform for welding aluminum with silicon addition

    • TRIANGULAR - triangular waveform setting optimal for welding thin elements, including anodized aluminum

    • SINE - sinusoidal waveform recommended for welding pure aluminum 99.999%
  • AC/DC EASY SETUP - ability to use factory preset settings.
  • NORMAL SETUP - welding parameters set according to individual needs.
  • HOT START - function increasing current at arc ignition, facilitating the start of welding.
  • HF - device equipped with ionizer, allowing contactless arc ignition.
  • PRE and POST GAS - gas flow before and after welding.
  • UP and DOWN SLOPE - welding current ramp-up and ramp-down.
  • PULS - pulse current function, mainly used for welding thin elements (even 0.1 mm), low melting point metals such as lead, or welding in constrained positions. Other advantages of pulse welding include smaller heat-affected zone, greater arc stability, deeper penetration, and improved weld appearance.
  • ARC FORCE - function stabilizing the welding process by maintaining arc voltage regardless of its length, and facilitates control of spatter amount.
  • VRD - Voltage Reduction Device reduces secondary open-circuit voltage. Increases safety and reduces risk of electric shock.
  • PFC - Power Factor Correction increases power factor to values as close as possible to 100% to reduce power losses in transmission lines.

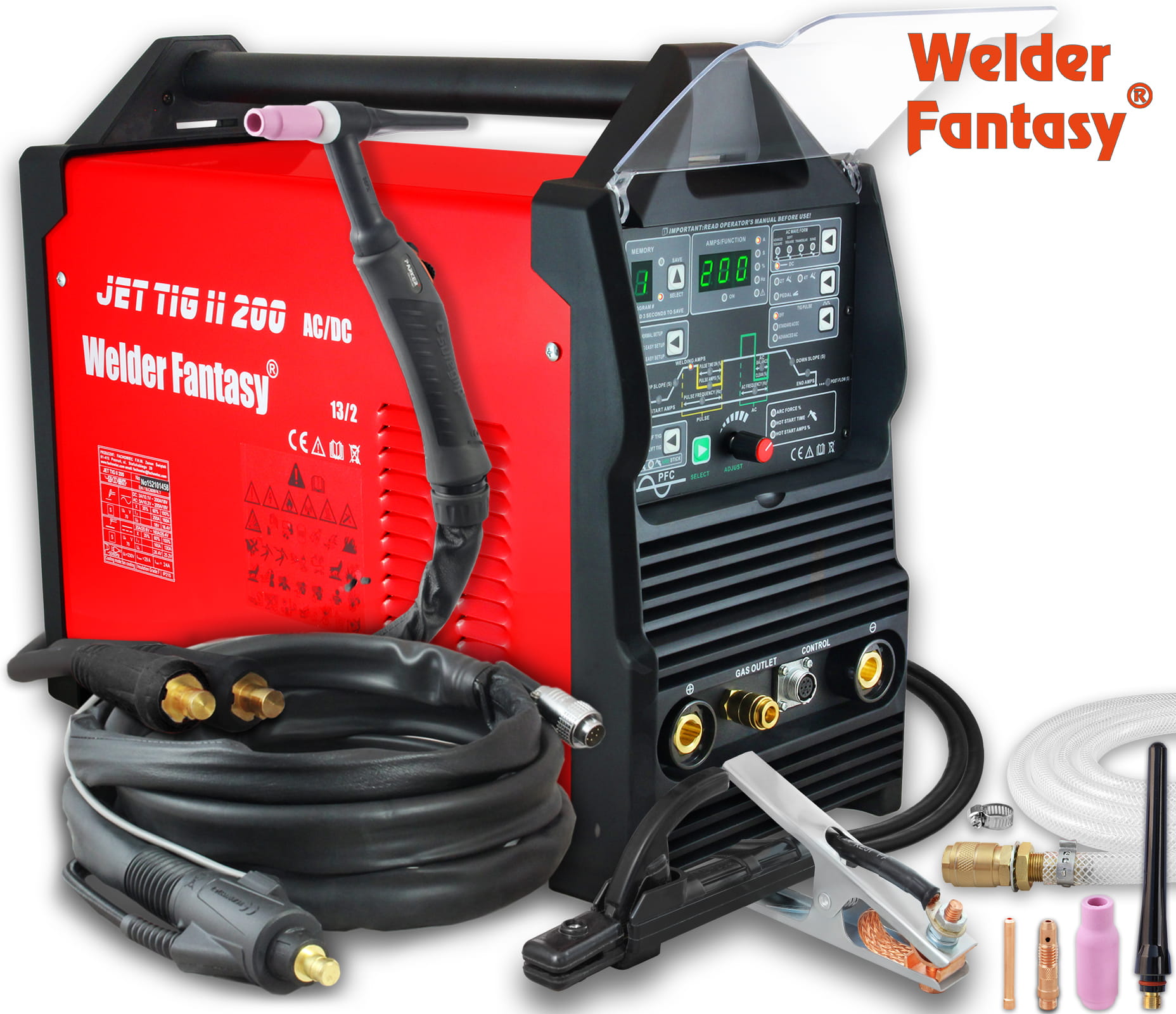

SET EQUIPMENT:
- Welder Welder Fantasy JET TIG II AC/DC 200 IGBT

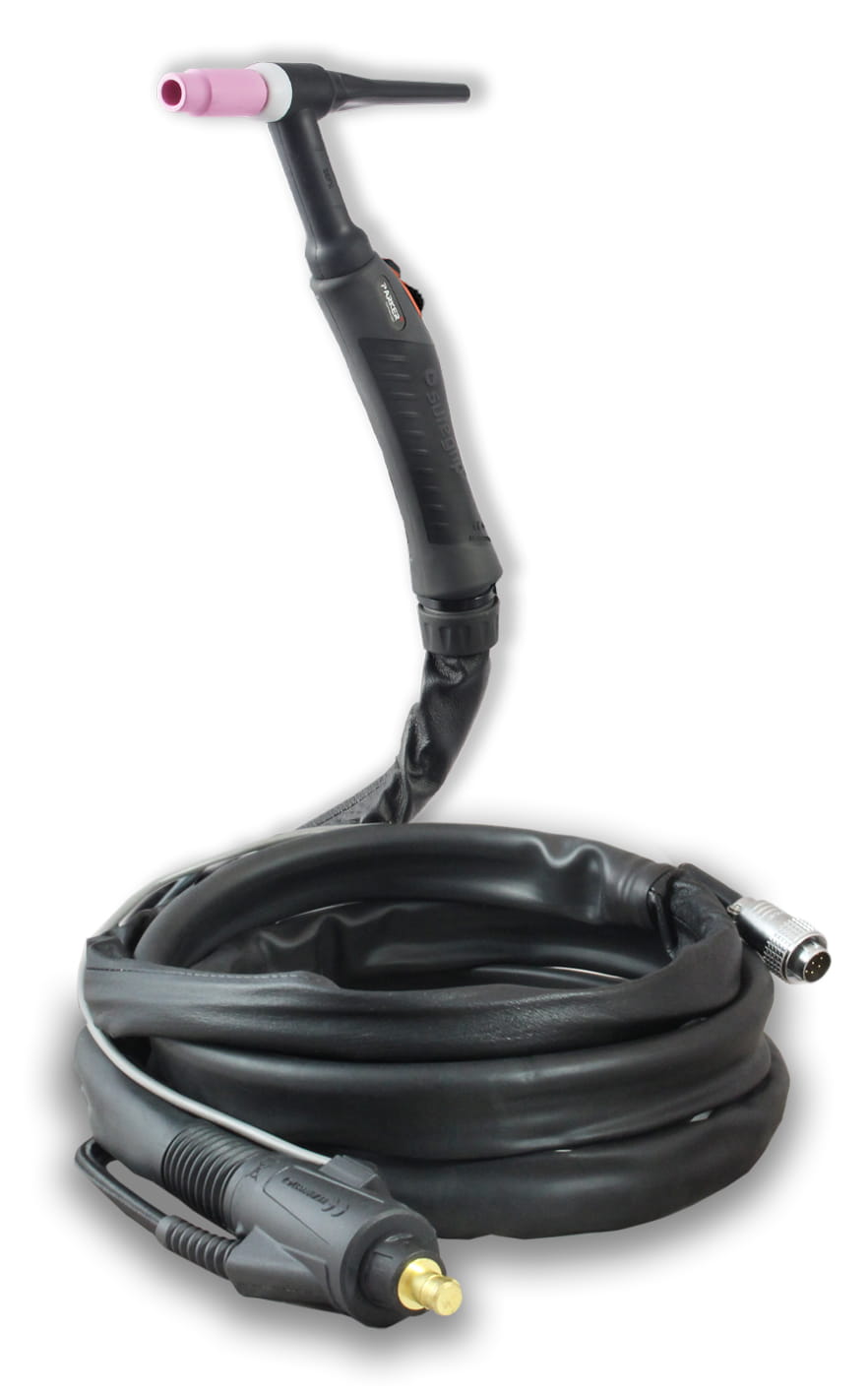

- TIG torch PARKER SGT 26 FLEX - 4 m - with welding current adjustment

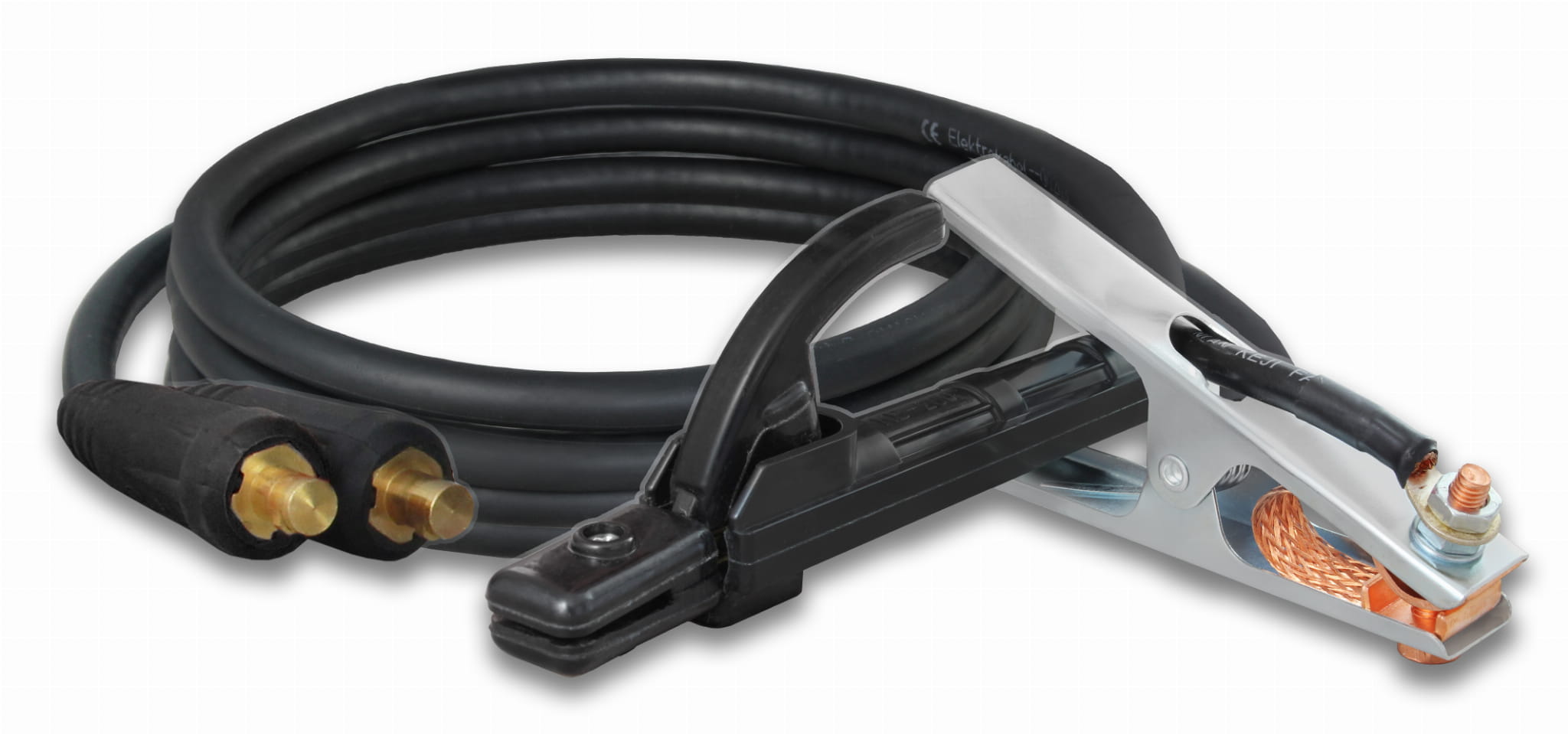

- Ground clamp 3 m
- Electrode holder 3 m
- Instruction manual in Polish

TECHNICAL DATA:
