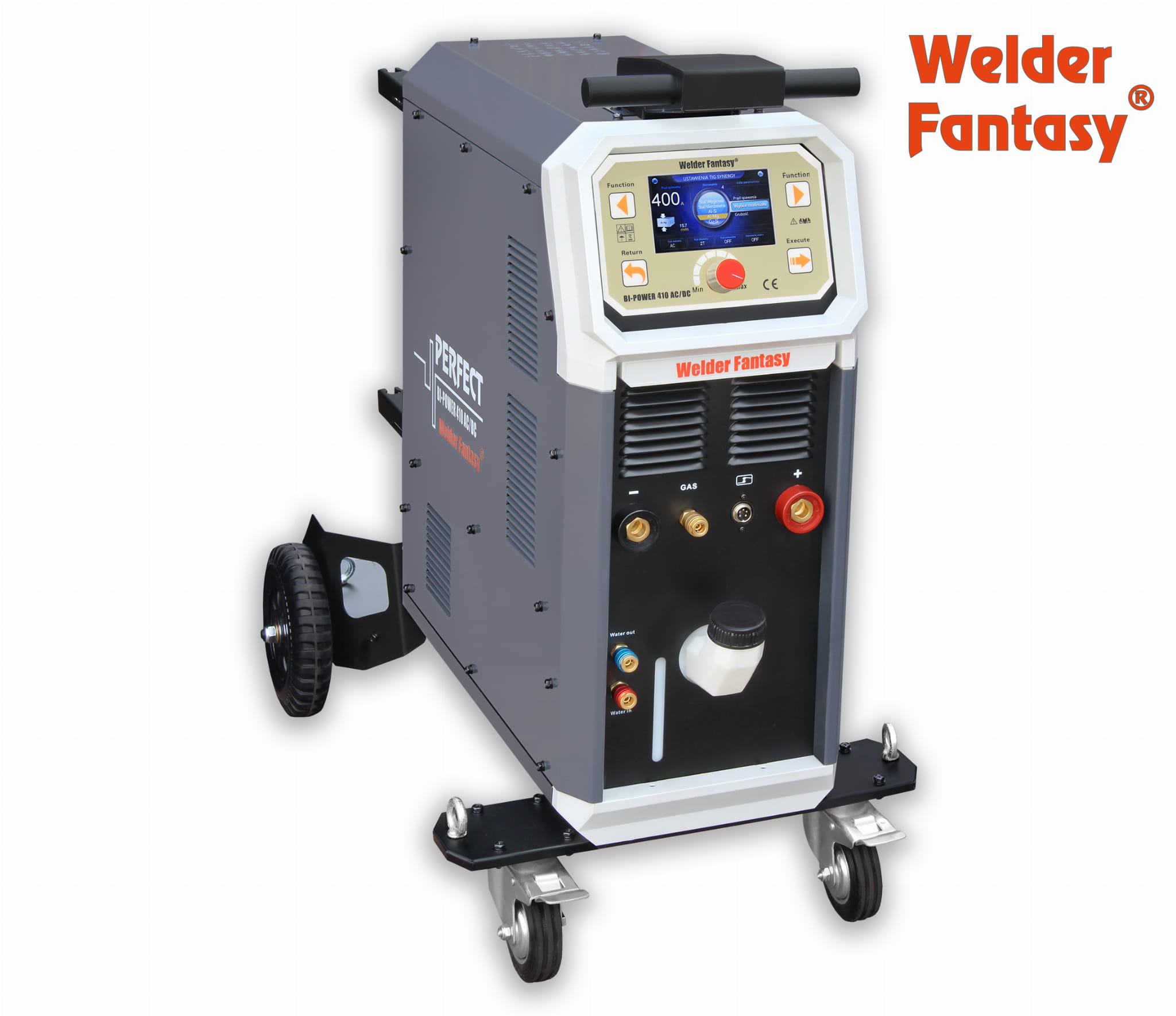

The Welder Fantasy BI-POWER TIG 410 PERFECT AC/DC devices are microprocessor-controlled welding power sources based on IGBT technology, designed for welding carbon steels, stainless steels, acid-resistant steels, copper, brass, magnesium, titanium, and all aluminum alloys.

"WELDER FANTASY" IS A PROTECTED AND REGISTERED TRADEMARK OF THE COMPANY FACHOWIEC.

The Welder Fantasy BI-POWER 410 TIG PERFECT AC/DC device is a modern inverter power source offering many possibilities for performing welding work. The reliability and wide range of applications of the BI-POWER series devices make them satisfy even the most demanding users.

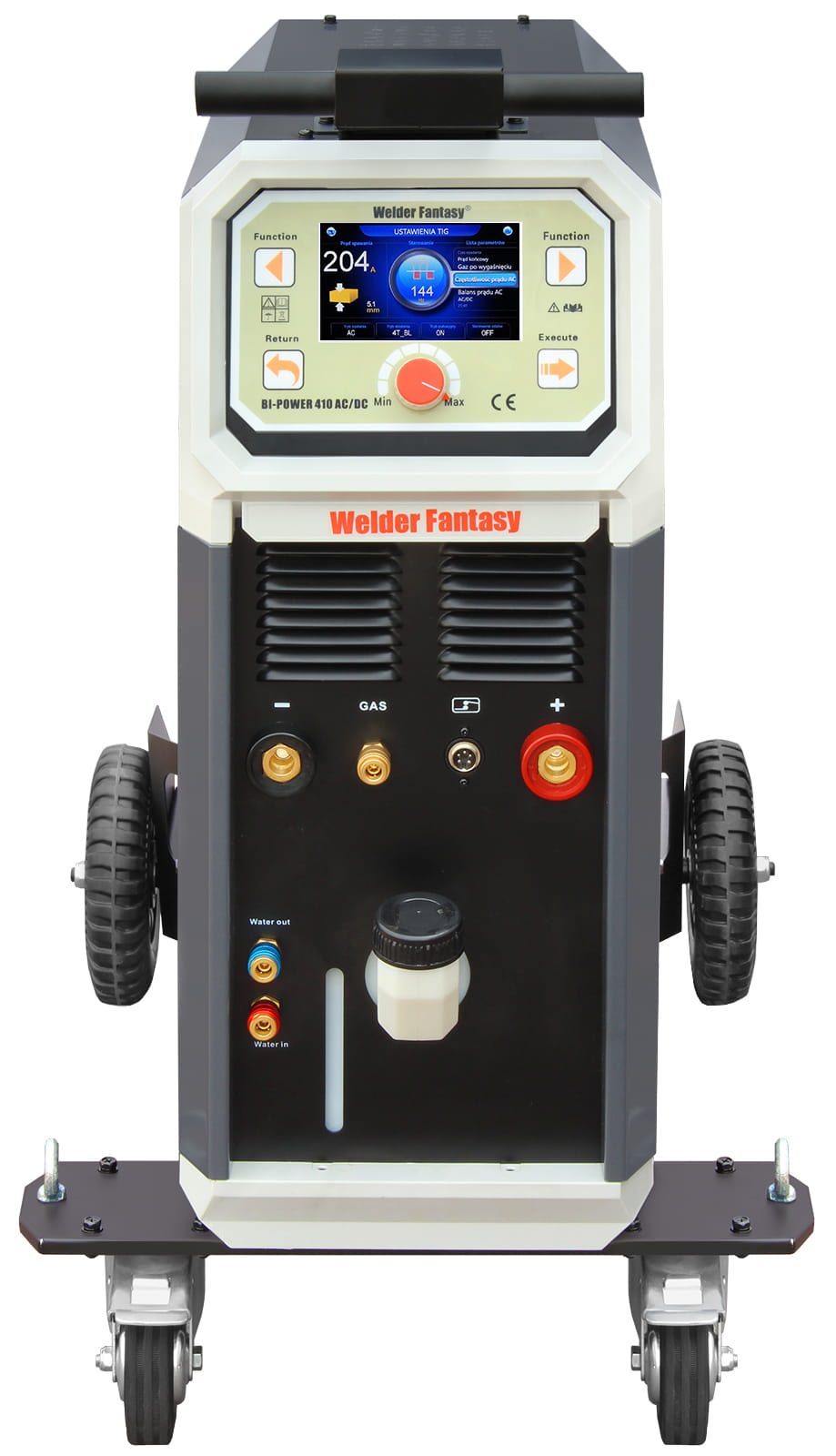

The intuitive, easy-to-use control panel with a color display allows quick setting of all the most important welding parameters. The device allows selecting one of four menu languages:

• Polish,
• English,
• German,
• French.

Thanks to the use of modern IGBT technology and high-quality components, the BI-POWER 410 TIG PERFECT AC/DC devices equipped with an integrated welding cooler are ideal for professional welding work in industries such as automotive, metal constructions, and many others.

IGBT Technology - Insulated Gate Bipolar Transistor - is a modern technology based on bipolar transistors with an insulated gate. It combines the ease of control of field-effect transistors with the high breakdown voltage and switching speed of bipolar transistors. The use of IGBT technology significantly extends the reliable operation time of welding devices.

The BI-POWER 410 TIG PERFECT AC/DC welding machine allows operation in the following modes:

TIG AUTO – synergic settings. In AUTO mode the user selects basic welding parameters such as the type of material and the thickness of the welded material. The remaining parameters are automatically selected by the device using a database of built-in programs.

TIG DC LIFT - welding with a tungsten electrode in an inert gas shield. This method enables welding of all types of steels such as carbon, alloy, stainless, acid-resistant steels, as well as copper alloys such as bronzes and brasses.

TIG DC HF - To completely eliminate the possibility of contaminating the weld with tungsten, it is recommended that the electrode does not touch the welded element; therefore, non-contact arc ignition is used with high-frequency discharges generated by the ionizer built into the device.

TIG DC PULS lift-arc - arc ignition occurs through contact of the electrode with the welded material; the pulse function allows welding of thin elements by periodically changing the welding current.

TIG DC PULS HF - non-contact HF ignition using an ionizer in TIG DC PULS mode.

TIG AC lift-arc - a function allowing aluminum welding using alternating current, which performs a cathodic cleaning function during aluminum welding. Thanks to the possibility of setting the AC BALANCE parameter, i.e., the alternating current balance, it is possible to adjust the ratio of the duration of its phases relative to each other.

TIG AC HF - an analogous function enabling aluminum welding with alternating current, where ignition occurs non-contact through high-frequency current generated by the ionizer.

TIG AC PULS lift-arc - welding in this mode is a combination of alternating current with pulse, which allows welding very thin aluminum elements. Arc ignition occurs through contact of the electrode with the welded material.

TIG AC PULS HF - a function enabling welding of thin aluminum elements. Non-contact ignition thanks to the use of an ionizer.

MMA DC+ - In the MMA method a coated electrode is used, consisting of a metal core covered with flux coating. An electric arc is created between the end of the electrode and the welded material. Arc ignition occurs by touching the electrode tip to the welded material. MMA DC+ means welding with positive polarity – more heat is generated in the material and less in the electrode.

MMA DC- - the difference compared to MMA DC+ is that the polarity in MMA DC mode is negative, so the heat distribution is reversed – more heat is generated in the electrode and less in the welded material.

MMA VRD DC+ - the VRD function (Voltage Reduction Device – a module reducing the idle voltage of the device's secondary circuit) available in MMA DC+ mode increases safety and reduces the risk of electric shock. The function switches the welding power supply on and off when resistance between the electrode and the welded element is detected during welding.

MMA VRD DC- - the VRD function available in MMA DC- mode works analogously to MMA VRD DC+, the difference being the negative polarity.

ADDITIONAL FUNCTIONS:

• WAVEFORM SELECTION - the device allows selection of the following AC waveform shapes: rectangular, sinusoidal, triangular, rising triangular, falling triangular.
• 2T/4T - selection of the welding torch trigger operation mode in the TIG method between two-stroke and four-stroke.
• 4T BiLEVEL - TIG welding with the possibility of changing voltage and welding current between two different values without extinguishing the electric arc.
• C-SPOT - continuous spot welding. After setting the welding time and pause time, spot welding can be performed continuously. The function guarantees uniform spot welds throughout the cycle.
• PRE and POST GAS - setting the gas flow time before arc ignition and after welding.
• UP and DOWN SLOPE - setting the rise and fall time of the welding current.
• HOT START - a function facilitating the start of welding. At the moment of arc ignition the welding current is temporarily increased to heat the material and the electrode at the contact point and to properly shape the penetration and weld face in the initial phase of welding.
• ARC FORCE - a function stabilizing the arc by maintaining the welding arc voltage value regardless of its length and facilitating control over the amount of spatter.

DEVICE FEATURES:

• solid, compact construction
• IGBT transistors
• 30% duty cycle
• easy-to-use control panel
• 18 memory programs
• LCD display of welding parameters
• TIG DC PULS welding capability
• TIG AC PULS welding capability
• MMA welding capability
• synergic settings

SET EQUIPMENT:

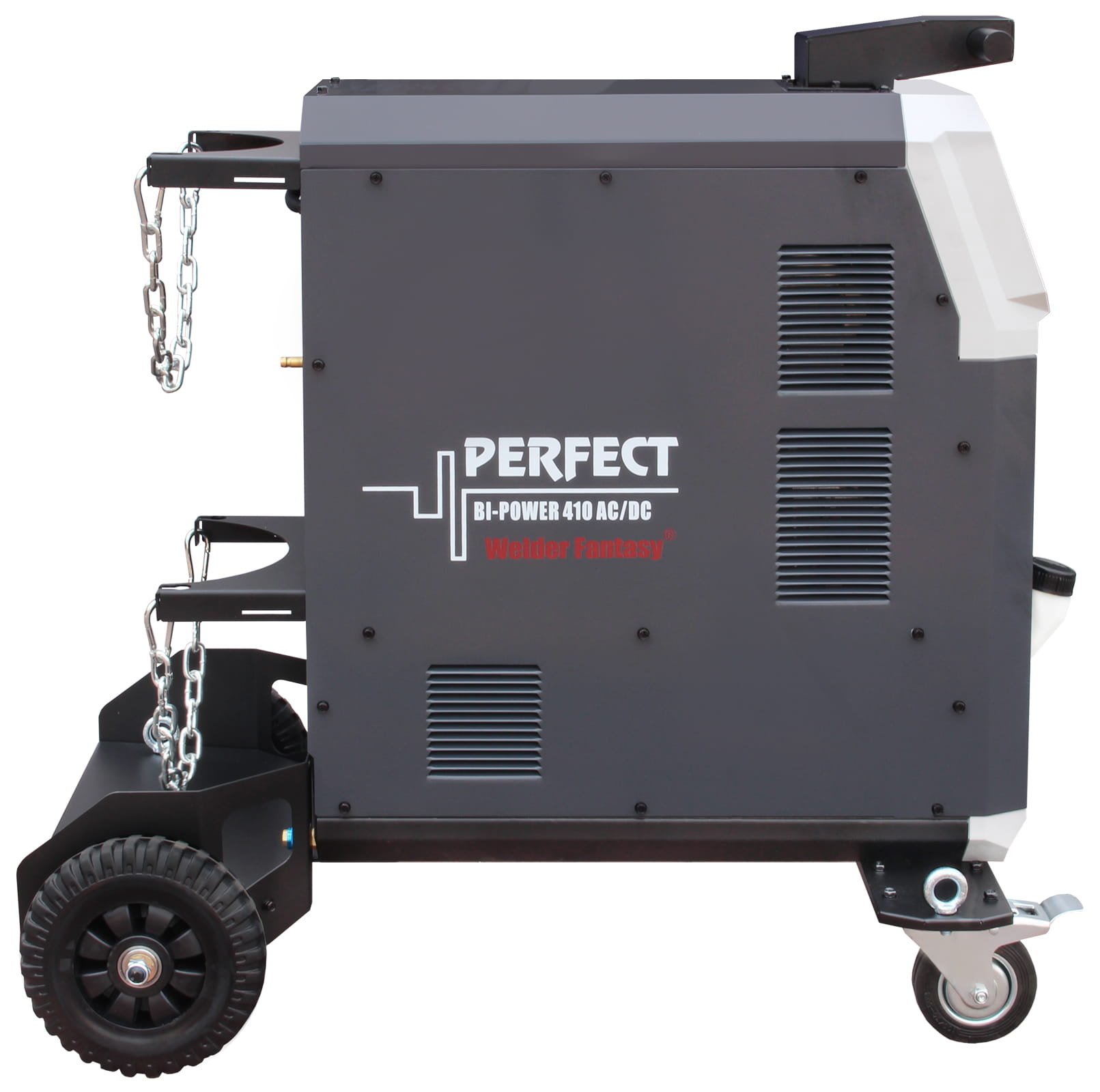

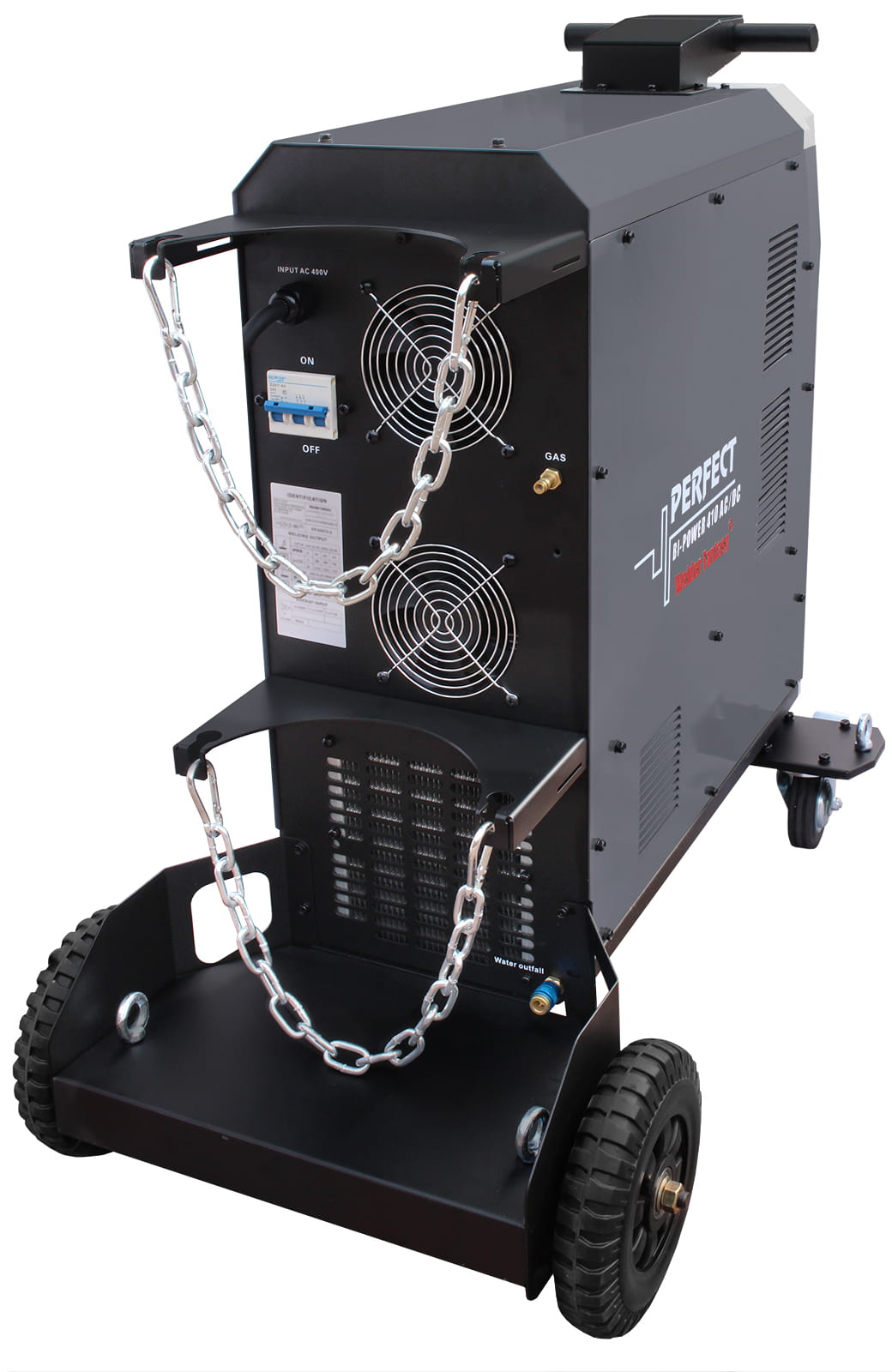

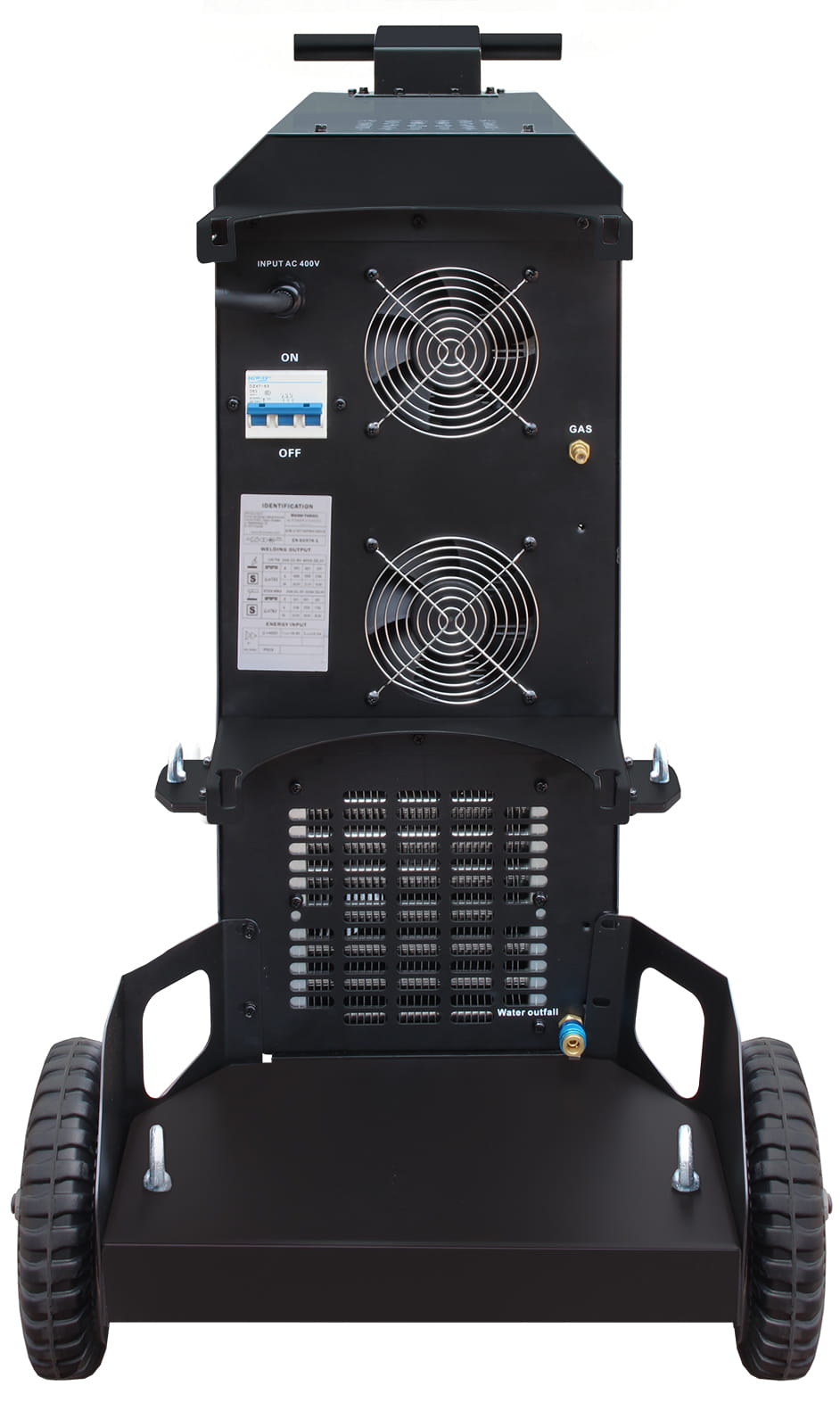

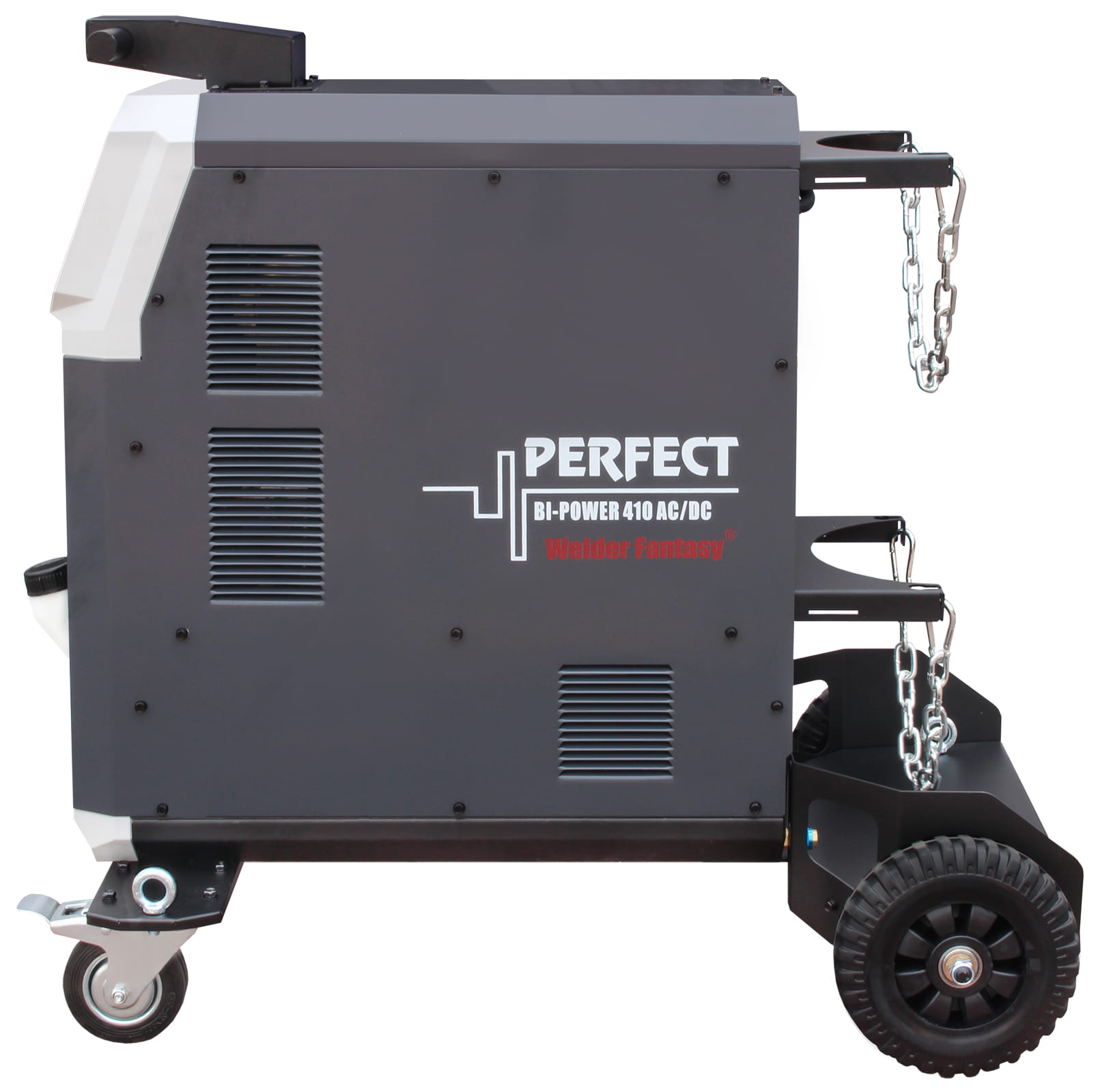

• Welder Fantasy BI-POWER 410 TIG PERFECT AC/DC welding machine
• integrated welding cooler

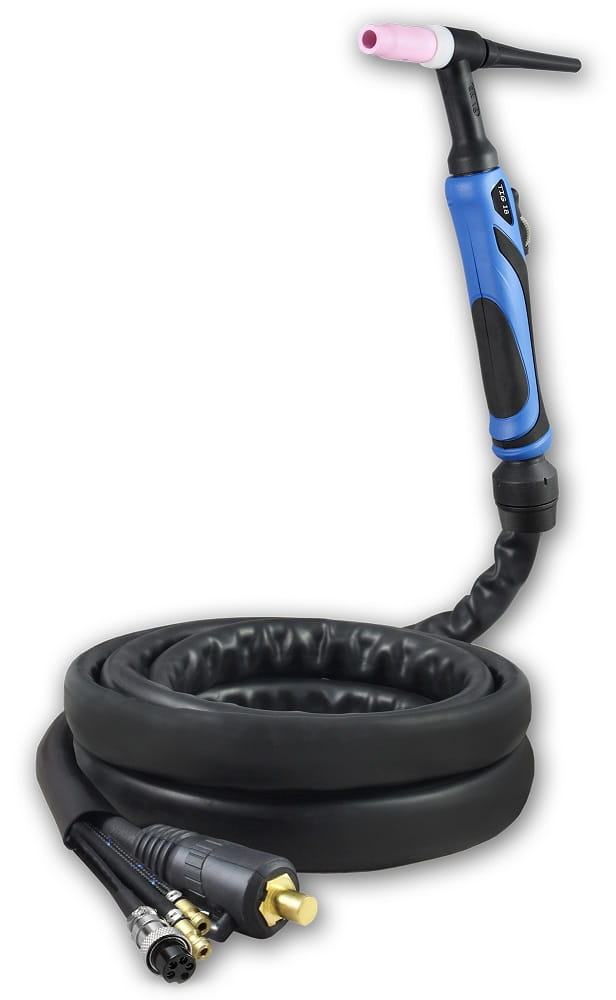

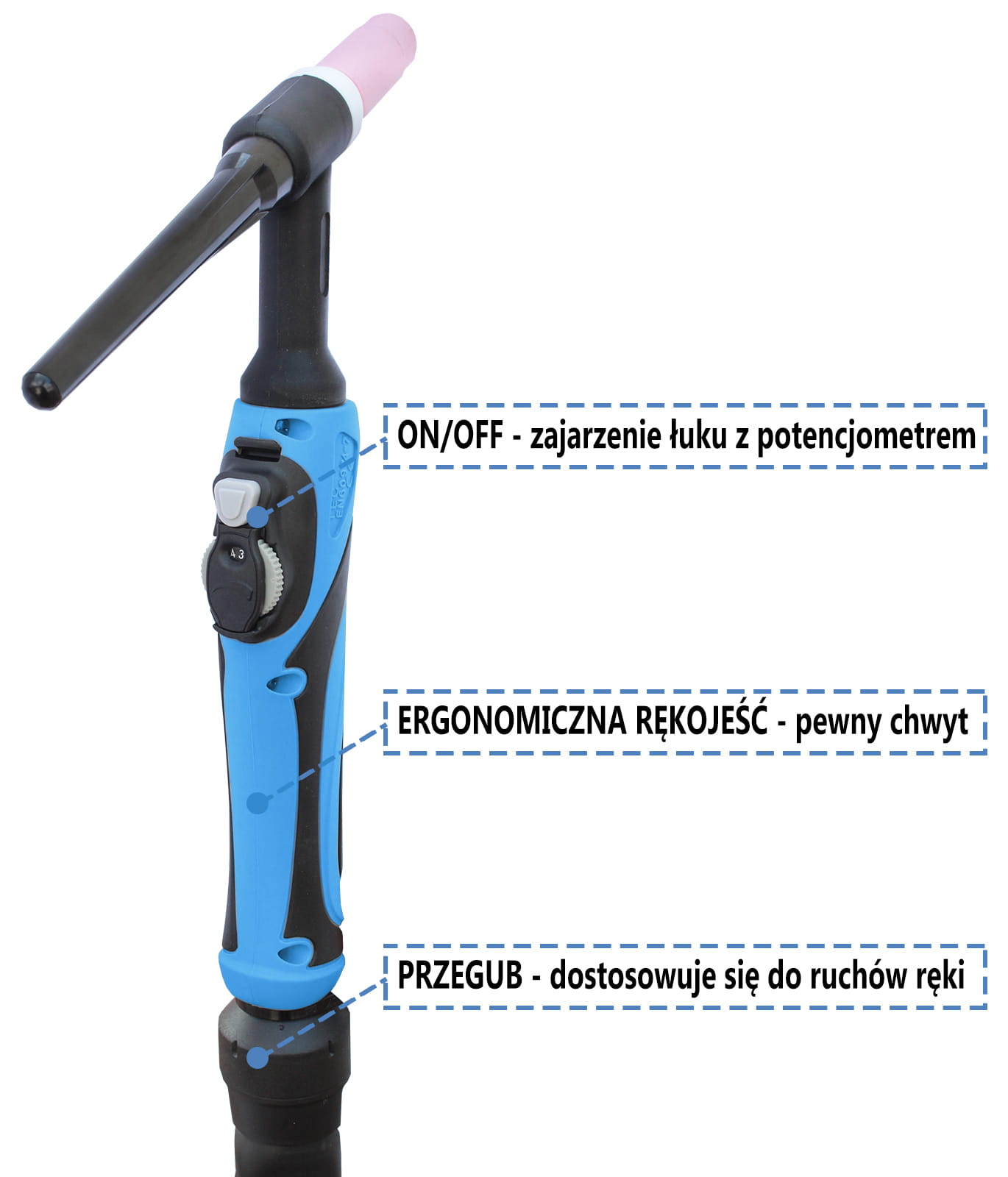

• TIG welding torch type SRT-18 with handle control – 4 meters

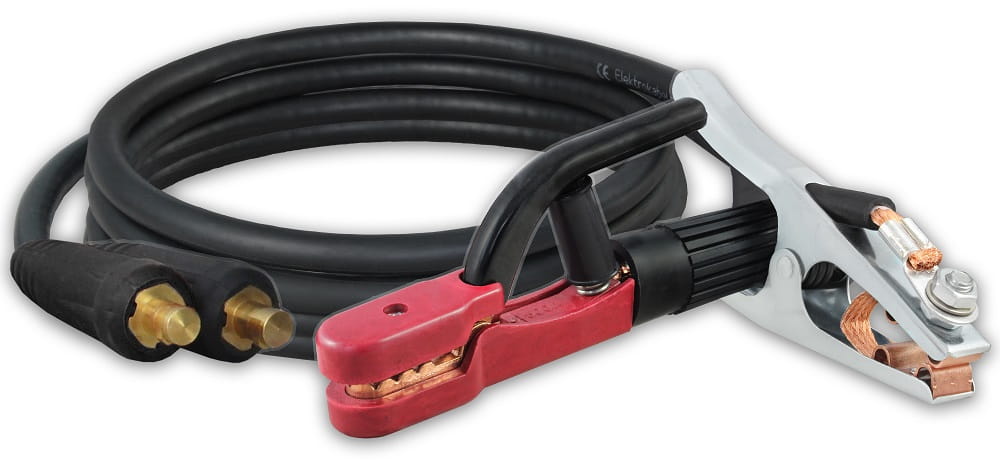

• ground clamp – 4 meters
• electrode holder – 4 meters

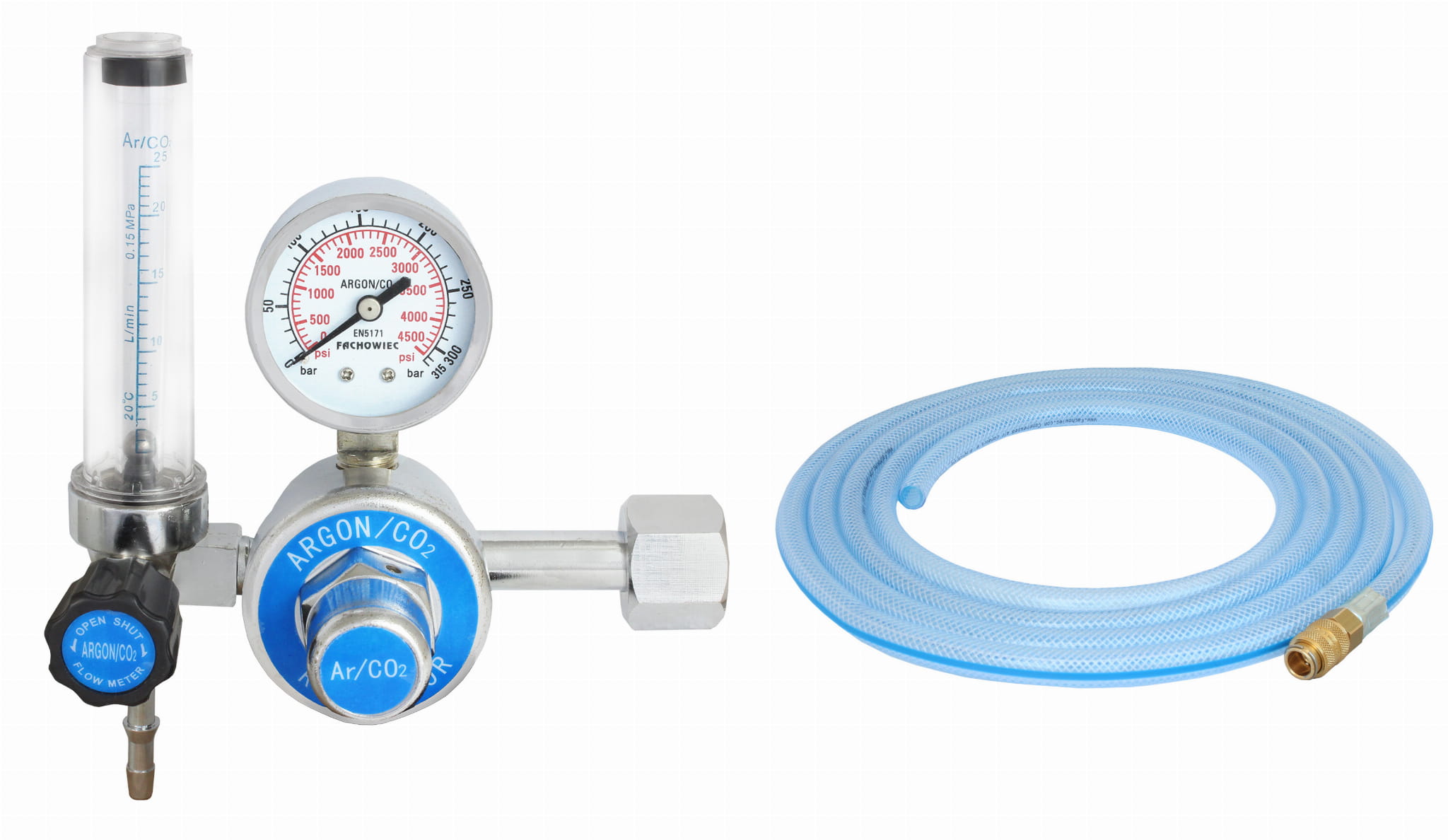

• CO2/Ar regulator with rotameter
• gas hose with quick connector
• brush-hammer
• welding mask
• user manual and warranty card

TECHNICAL DATA:

Files for download:

PERFECT BI-POWER 410 AC/DC User Manual
